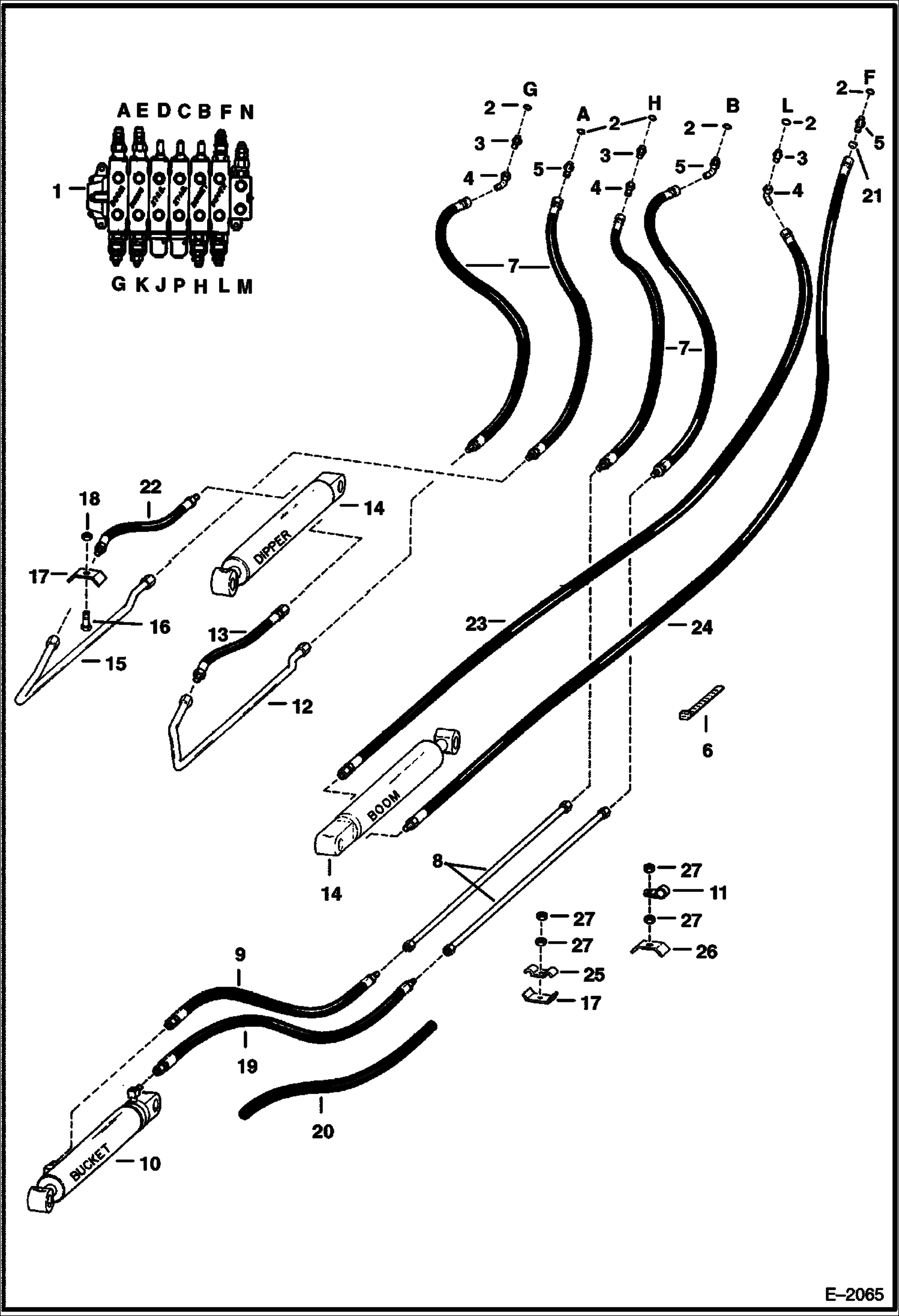

Запчасти Bobcat BACKHOE HYDRAULIC CIRCUITRY - BOOM 730S 730S BACKHOE

1

VALVE See Illustration VALVE CONTROL/ B24318A

2

79K8

O RING 10

3

15K6

ADAPTER W/Ref. 2

4

12K6

UNION

5

18K6

FITTING W/Ref. 2

6

6610510

TIE Was 1715312B - A

7

6539239

HOSE

8

6532975

TUBE

9

6538438

HOSE

10

CYLINDER See Illustration CYLINDER BUCKET/ C3236 See Illustration CYLINDER BUCKET/ PE2641 BUCKET

11

30H46

CLIP

12

6532974

TUBE

13

6534349

HOSE

14

CYLINDER See Illustration BOOM & DIPPERSTICK CYLINDER/ C3347 See Illustration BOOM & DIPPER CYLINDER/ NA2858 BOOM, DIPPER

15

6532973

TUBE

16

84G3728

BOLT

17

6502426

CLAMP

18

85D6

NUT, 5

19

6538437

HOSE

20

6649389

HOSE COVER 1'' (25,4 mm) Bulk - Sold Per Foot

21

6592852

ORIFICE .191 - .183 (4,85 - 4,65mm)

22

6713390

HOSE Was 6534348 - A

23

6532645

HOSE

24

6539240

HOSE

25

6591804

CLAMP

26

6537761

CLAMP

27

81D6

NUT
