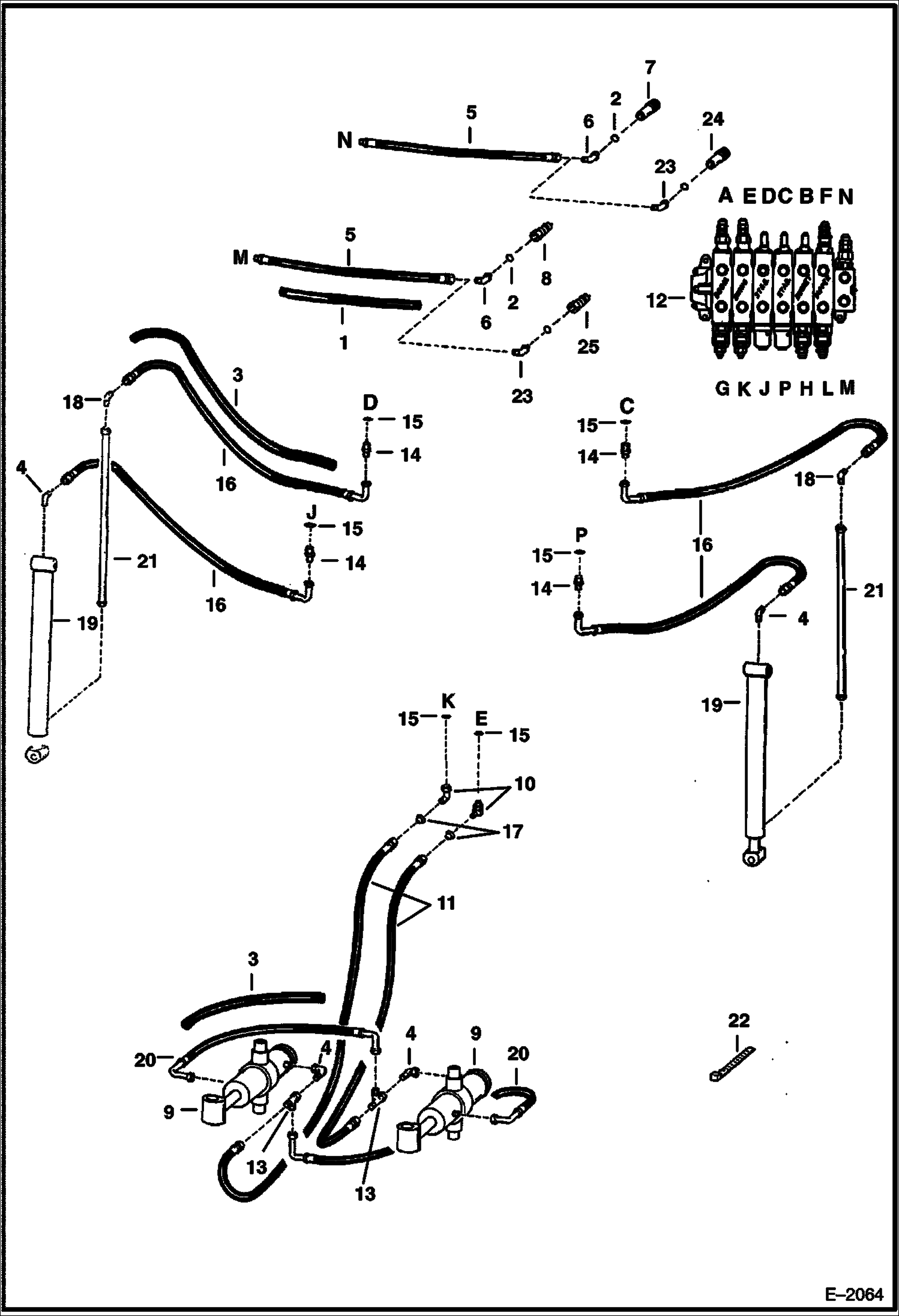

Запчасти Bobcat BACKHOE HYDRAULICS - MAIN FRAME 730S 730S BACKHOE

1

6650108

HOSE COVER Bulk - Sold Per Foot

2

79K10

O RING 10

3

6649389

HOSE COVER Bulk - Sold Per Foot

4

11K5

FITTING Flat boss face

4

ELBOW NLA - tapered boss face - Was 11KN00005B - A

4

96K6

O-RING Flare End

5

6532194

HOSE See Illustration VALVE FLOW DIVIDER, HYDRAULIC CIRCUITRY/ C3272 Ref. 36

6

17K7

ELBOW W/Ref. 2

7

6598758

COUPLER, POPPET FEMALE straight

7

48K16

O RING 10

8

6598757

COUPLER, POPPET MALE straight

9

CYLINDER See Illustration CYLINDER SWING - TEXAS HYDRAULIC/ B13175 SWING

10

6587727

ELBOW 45 Deg. - Was 12K000005B - A

11

6533048

HOSE

12

VALVE See Illustration VALVE CONTROL/ B24318A

13

13K5

TEE

14

743108

FITTING W/Ref. 15

15

79K8

O RING 10

16

6533047

HOSE

17

6532775

ORIFICE .079 - .085 (2,01 - 2,16mm)

18

12K5

ADAPTER Was 77F000005B - A

19

CYLINDER See Illustration CYLINDER STABILIZER/ C3101 stabilizer

20

6533049

HOSE

21

TUBE See Illustration CYLINDER STABILIZER WITH COUNTERBALANCE VALVE/ C5340

22

6610510

TIE Was 1715312B - A

23

17KB1012

FITTING, HYD ELBOW Was 1302104B - A

24

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

25

6674688

COUPLER, FF MALE straight - Was 6667808 - A
