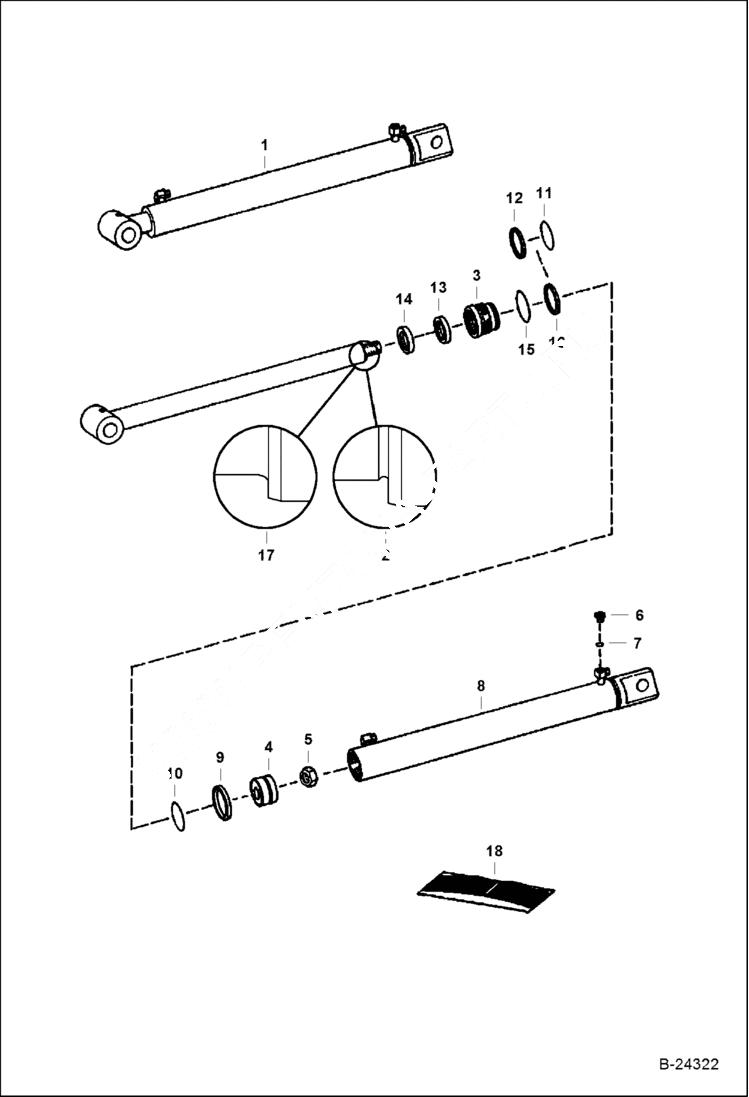

Запчасти Bobcat BACKHOE CYLINDER BUCKET (401500101 & Above) (232900101 & Above) 725S BACKHOE

1

CYLINDER NLA - Ref. 2-16 - Order 71474446 - Was 6589476 - A

1

7147446

CYLINDER Ref. 3-16 & 18

2

ROD NLA - Order 7147444 shaft & 7147310 piston - Was 6539251 - A

3

6532564

HEAD

4

7147310

PISTON Was 6539252 - A

5

6810540

NUT Was 92D000020B - B

6

PLUG NLA - W/Ref. 7 - flat boss face - Allen socket head - Was 47K000005B - A

6

PLUG NLA - W/Ref. 7 - tapered boss face - Allen socket head - Was 90KV00005B - A

6

6812171

PLUG W/Ref. 7 - flat boss face - hex head

7

75K6

O-RING For flat boss face

7

95K6

O'RING For tapered boss face

8

6589479

CASE

9

6516229

PISTON SEAL

10

25K30210

O-RING

11

25K60212

O RING 10

12

80K332

WASHER Back-up

13

6667328

SEAL

14

6686998

WIPER, ROD CYL Was 6666545 - A

15

58K232

O RING 10

16

7008356

SEAL, QUAD

17

7147444

ROD

18

7137933

KIT, SEAL W/Ref.5, 9, 10, 13-16 Was 6810717 - A
