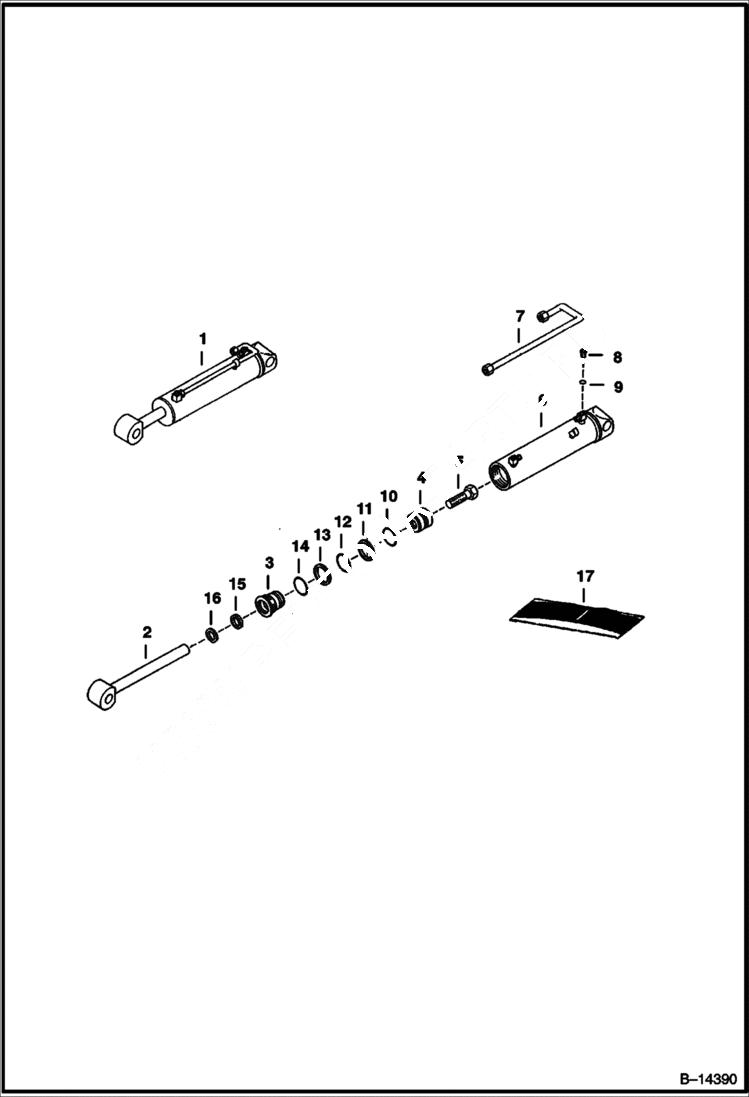

Запчасти Bobcat BACKHOE CYLINDER DIPPER (401500101 & Above) (232900101 & Above) 725S BACKHOE

1

CYLINDER NLA - Ref. 2 - 16 - Order 7103776 Cylinder - Was 6589342 - A

2

6537124

ROD

3

6538367

HEAD, CYL TILT

4

6537114

PISTON

5

6536391

SCREW

6

6589345

CASE

7

6537120

TUBE

8

PLUG NLA - W/Ref. 9 - flat boss face - allen socket head - Was 47K000005B - A

8

PLUG NLA - W/Ref. 9 - tapered boss face - allen head - Was 90KV00005B - A

8

90K5

PLUG W/Ref. 9 - flat boss face - allen head

8

6812171

PLUG W/Ref. 9 - flat boss face - hex head

9

75K6

O-RING For flat boss face

9

95K6

O'RING For tapered boss face

10

25K30218

O RING 10 Was 54K30218 - B

11

947088

RING, BACK-UP

12

25K40224

O RING 10

13

73K232

RING, BACK-UP back-up - Was 80K232 - A

14

58K234

O RING 10 Was 54K40300 - B

15

6538141

SEAL Rod

16

6690707

WIPER, ROD CYL Was 6665086 - A

17

6803272

SEAL KIT Ref. 10 - 16 - Was 6589798 - A
