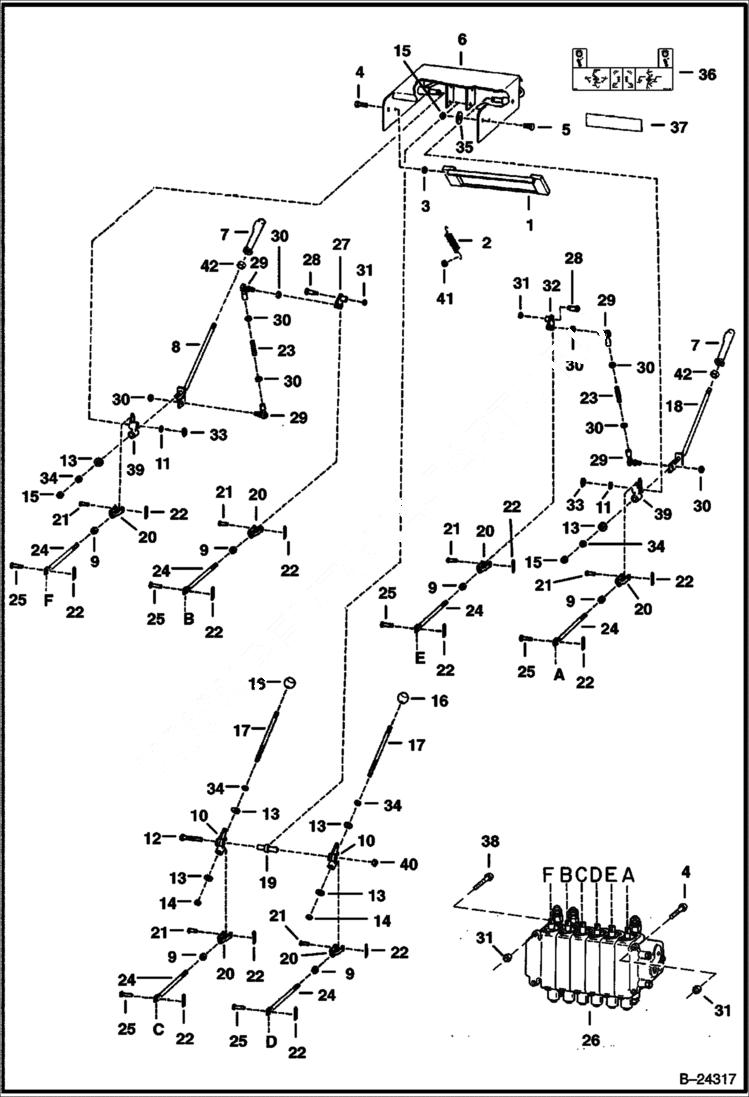

Запчасти Bobcat BACKHOE CONTROLS (W/Aux.) (232900101 & Above) 725S BACKHOE

1

6532607

LOCK

2

6610077

SPRING

3

7D6

NUT

4

17C620

BOLT

5

17C816

BOLT

6

6806864

MOUNT

7

6675364

HANDLE W/switch

8

6806872

LEVER R.H.

9

8D6

NUT 5

10

6586081

PIVOT

11

25E16

WSHR

12

17C556

BOLT

13

25E21

WASHER 5

14

61D8

NUT 5

15

85D8

NUT, 5

16

6515888

KNOB

17

6532153

LEVER

18

6806874

LEVER L.H.

19

6532160

PIVOT

20

6564655

CLEVIS

21

227395

CLEVIS PIN

22

1F208

PIN

23

6532193

ROD

24

6532192

ROD

25

6659298

PIN

26

VALVE See Illustration VALVE CONTROL/ B24320

27

6587703

BELLCRANK L.H. - 1/2'' ID

28

38C816

BOLT

29

6651231

BALL JOINT

30

62D5

NUT

31

85D6

NUT, 5

32

6587704

BELLCRANK R.H. - 1/2'' ID

33

1315207

RET RING

34

7D8

NUT 5

35

6700170

WASHER Plastic

36

6808259

DECAL Controls

37

6532698

DECAL Mounting

38

17C628

BOLT

39

6532196

PIVOT

40

61D5

NUT

41

85D6

NUT, 5

42

5DM14

LOCK NUT
