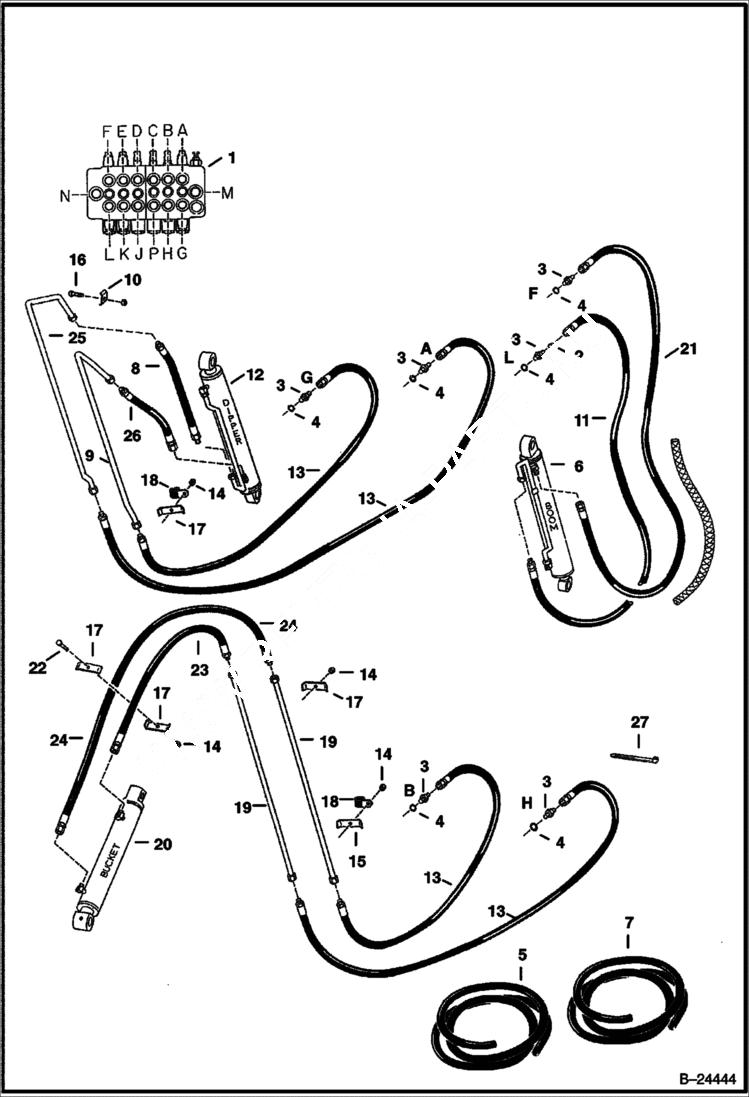

Запчасти Bobcat BACKHOE BOOM HYDRAULIC CIRCUITRY (W/O Aux.) (401500101 & Above) 725S BACKHOE

1

VALVE See Illustration VALVE CONTROL/ B24318

2

6592865

SCREEN .1375'' (3.49mm) Dia.

3

15K6

ADAPTER W/Ref. 4

4

79K8

O RING 10

5

6651436

HOSE COVER Bulk - Sold Per Foot - Inside dia. - 2.38'' (60.452mm)

6

CYLINDER See Illustration CYLINDER BOOM/ C3241 See Illustration CYLINDER BOOM/ PE2513 BOOM

7

6649389

HOSE COVER Bulk - Sold Per Foot - 1'' (25.4mm)

8

6534349

HOSE

9

6536624

TUBE

10

6562266

CLAMP

11

6714464

HOSE

12

CYLINDER See Illustration CYLINDER DIPPER/ B14390 See Illustration CYLINDER DIPPER/ PE2513A DIPPER

13

6538295

HOSE

14

81D6

NUT

15

6537761

CLAMP

16

84G3724

BOLT

17

6502426

CLAMP

18

30H38

CLIP

19

6536622

TUBE

20

CYLINDER See Illustration CYLINDER BUCKET/ B24322 BUCKET

21

6714465

HOSE

22

17C624

BOLT 5

23

6538438

HOSE

24

6536609

HOSE

25

6536623

TUBE

26

6713390

HOSE Was 6534348 - A

27

6610510

TIE
