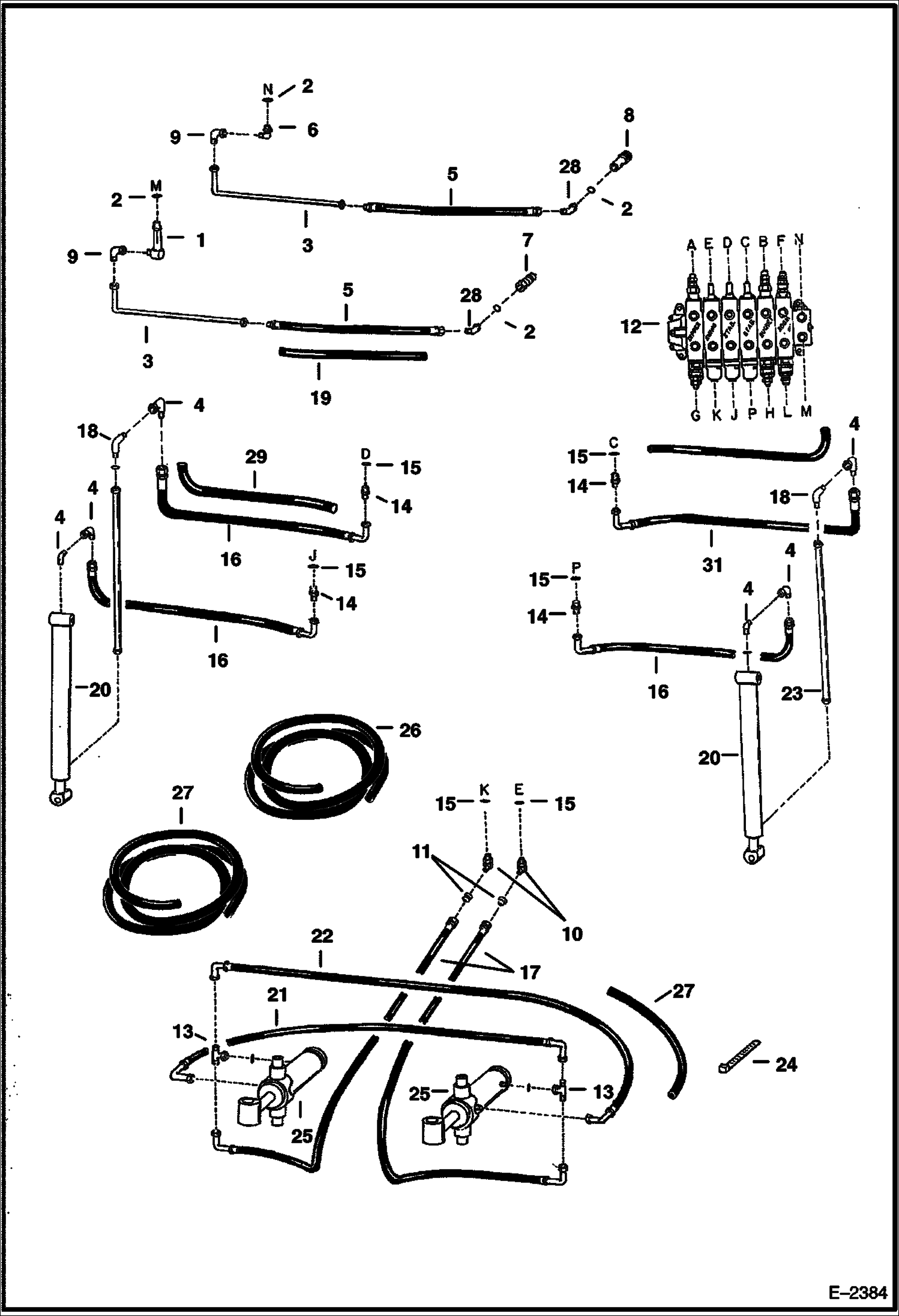

Запчасти Bobcat BACKHOE HYDRAULICS - MAIN FRAME (W/O Aux.) (401500101 & Above) 725S BACKHOE

1

6519195

ELBOW W/Ref. 2

2

79K10

O RING 10

3

6532649

TUBE

4

11K5

FITTING Flat boss face

4

ELBOW NLA - tapered boss face - Was 11KN00005B - A

4

96K6

O-RING Flare End

5

6532194

HOSE

6

17K7

ELBOW W/Ref. 2

7

6674688

COUPLER, FF MALE straight - Was 6667808 - A

8

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

9

11K7

ADAPTER

10

6587727

ELBOW 45 Deg.

11

6532638

HOSE

12

VALVE See Illustration VALVE CONTROL/ B24318

13

14K5

TEE

14

743108

FITTING W/Ref. 15

15

79K8

O RING 10

16

6640724

HOSE

17

6532775

ORIFICE .079 - .085 (2,01 - 2,16mm)

18

77F5

FITTING Use only with Cylinder 6532229

19

COVER NLA - Hose - 28.75'' (7303.3mm) Long - Order Ref. 26

20

CYLINDER See Illustration CYLINDER STABILIZER WITH COUNTERBALANCE VALVE/ C5340 STABILIZER

21

6532646

HOSE

22

6532799

HOSE

23

6532311

TUBE

24

6610510

TIE

25

CYLINDER See Illustration CYLINDER SWING/ B14190 SWING

26

6650108

HOSE COVER Bulk - Sold Per Foot

27

6649389

HOSE COVER Bulk - Sold Per Foot

28

17KB1012

FITTING, HYD ELBOW Was 1302104B - A

29

COVER NLA - Hose - 31.75'' (806.4mm) Long Order Ref. 27
