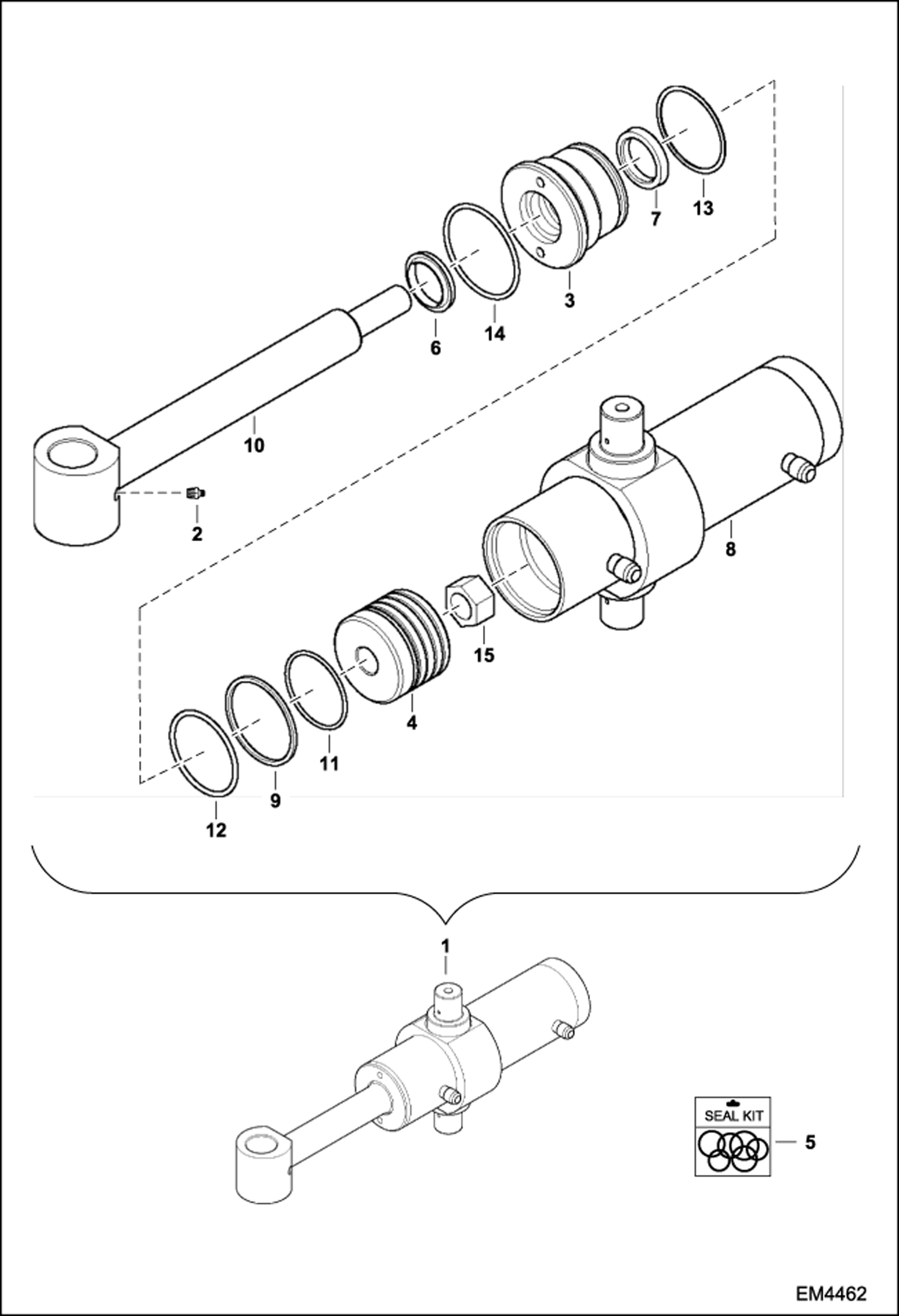

Запчасти Bobcat BACKHOE SWING CYLINDER (A6TW) BACKHOE

1

6802067

CYLINDER W/Ref. 3-15 - C, D

2

10H25

FITTING, GREASE 5

3

6538582

HEAD

4

6538590

PISTON

5

7137867

KIT, SEAL W/Ref. 6, 7, 9, 11-15

6

6665208

SEAL

7

6667324

SEAL

8

6802189

CASE W/Ref. 14 - B, D

9

1522534

SEAL

10

6802923

ROD

11

25K30202

O RING 10 Was 54K30202 - A

12

25K40208

O RING 10 Was 54K40208 - A

13

73K228

BACK-UP RING

14

82K230

O-RING

15

92D12

NUT
