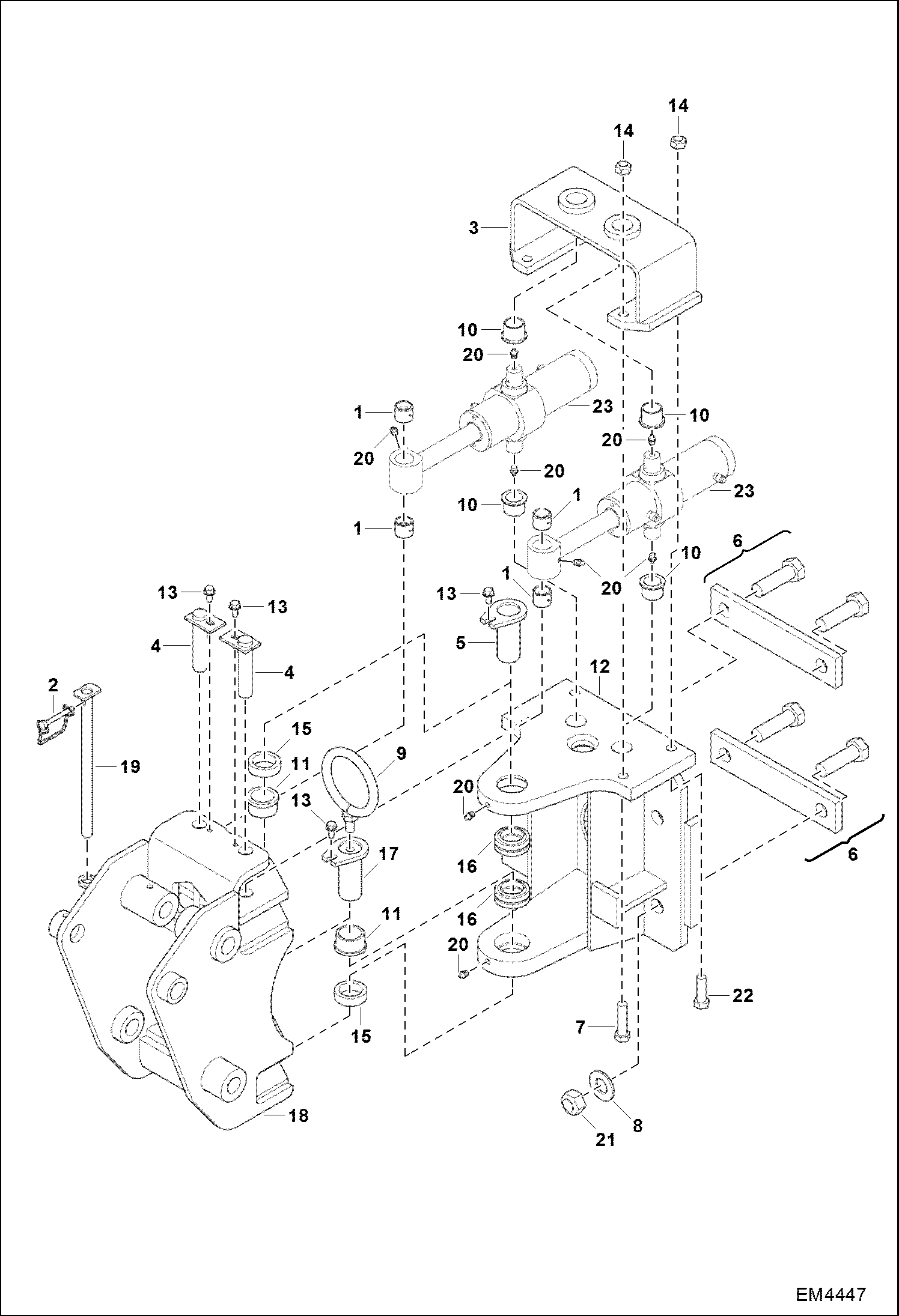

Запчасти Bobcat BACKHOE SWING FRAME (A6TW) BACKHOE

1

618453

BUSHING

2

6510020

LOCK PIN

3

6531897

BRACKET

4

6531913

PIN

5

6531942

PIN

6

6531955

BAR

7

1C1040

SCREW

8

27E16

WASHER

9

6534633

BRACKET

10

6541143

BEARING

11

6968396

BUSHING - A

12

6713478

SLIDE FRAME

13

84G3712

BOLT 5

14

85D10

NUT, 5

15

6968396

BUSHING

16

6968397

Bushing

17

6968884

PIN

18

6977401

FRAME, W/A SWING

19

7125353

PIN, W/A

20

10H25

FITTING, GREASE 5

21

85D16

LOCKNUT

22

1C1032

BOLT

23

6802067

CYLINDER See Illustration SWING CYLINDER/ EM4462
