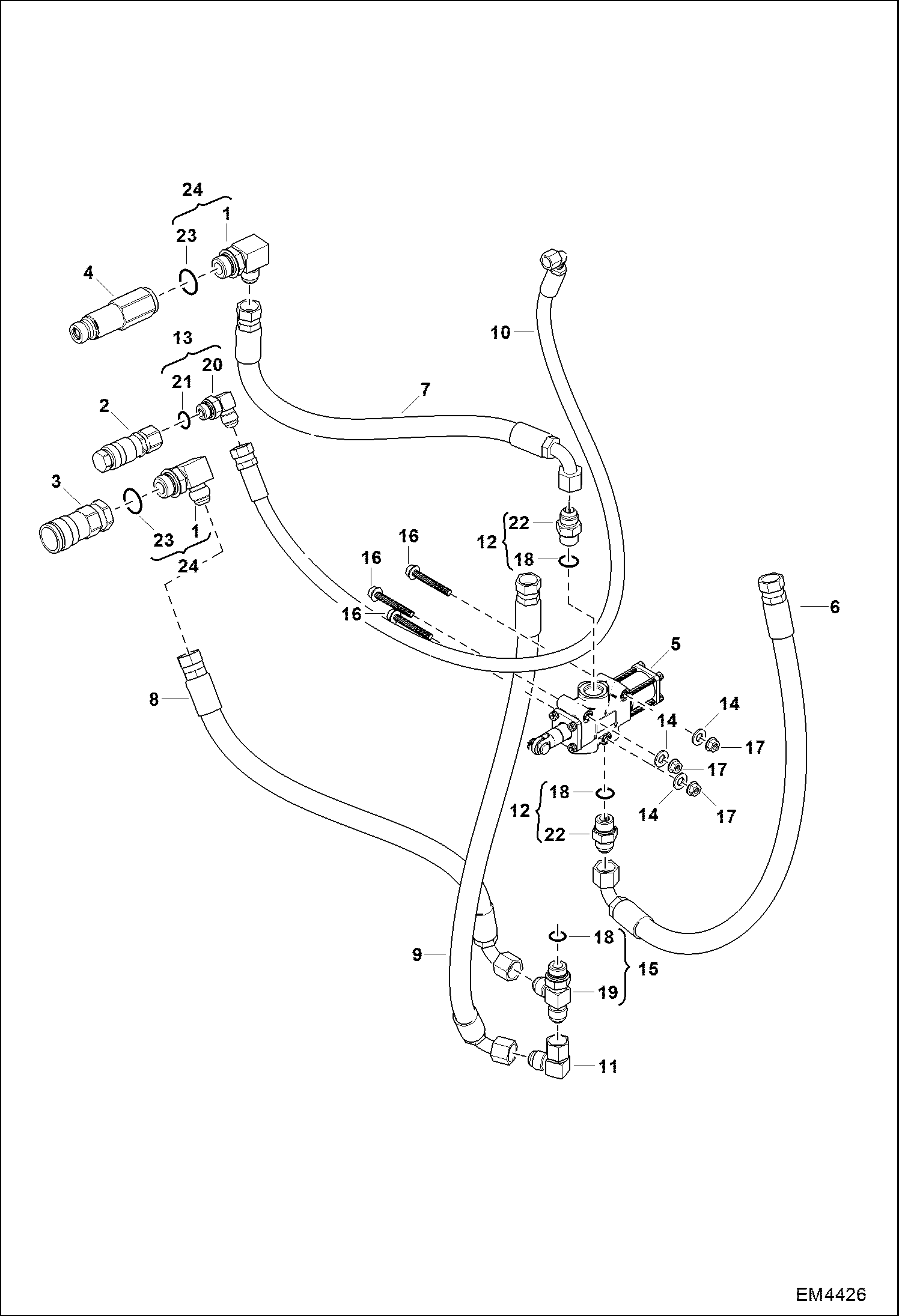

Запчасти Bobcat BACKHOE SHUTOFF VALVE (A2HH, A36S) BACKHOE

1

FITTING NLA - Order Ref. 24

2

6667805

COUPLER, FF FEMALE straight

3

6672960

COUPLER, FF FEMALE straight

4

6674688

COUPLER, FF MALE straight

5

6967911

Valve Diverter See Illustration HYDRAULIC VALVE/ EM4442

6

6978708

Hose Assembly

7

6978710

Hose Assembly

8

6978711

Hose Assembly

9

6978712

Hose Assembly

10

6978725

Hose Assembly

11

11K7

ADAPTER

12

15KB1010

FITTING, HYD CONNECTOR W/Ref. 18, 22

13

17KB0808

FITTING, HYD ELBOW W/Ref. 20, 21

14

1EM100

WASHER

15

21KB1010

FITTING, HYD TEE W/Ref. 18, 19

16

29CM860

BOLT

17

43DM8

NUT

18

79K10

O RING 10

19

FITTING NLA - Order Ref. 15

20

FITTING NLA - Order Ref. 13

21

79K8

O RING 10

22

FITTING NLA - Order Ref. 12

23

79K12

O RING 10

24

1302104

ELBOW W/Ref. 1, 23
