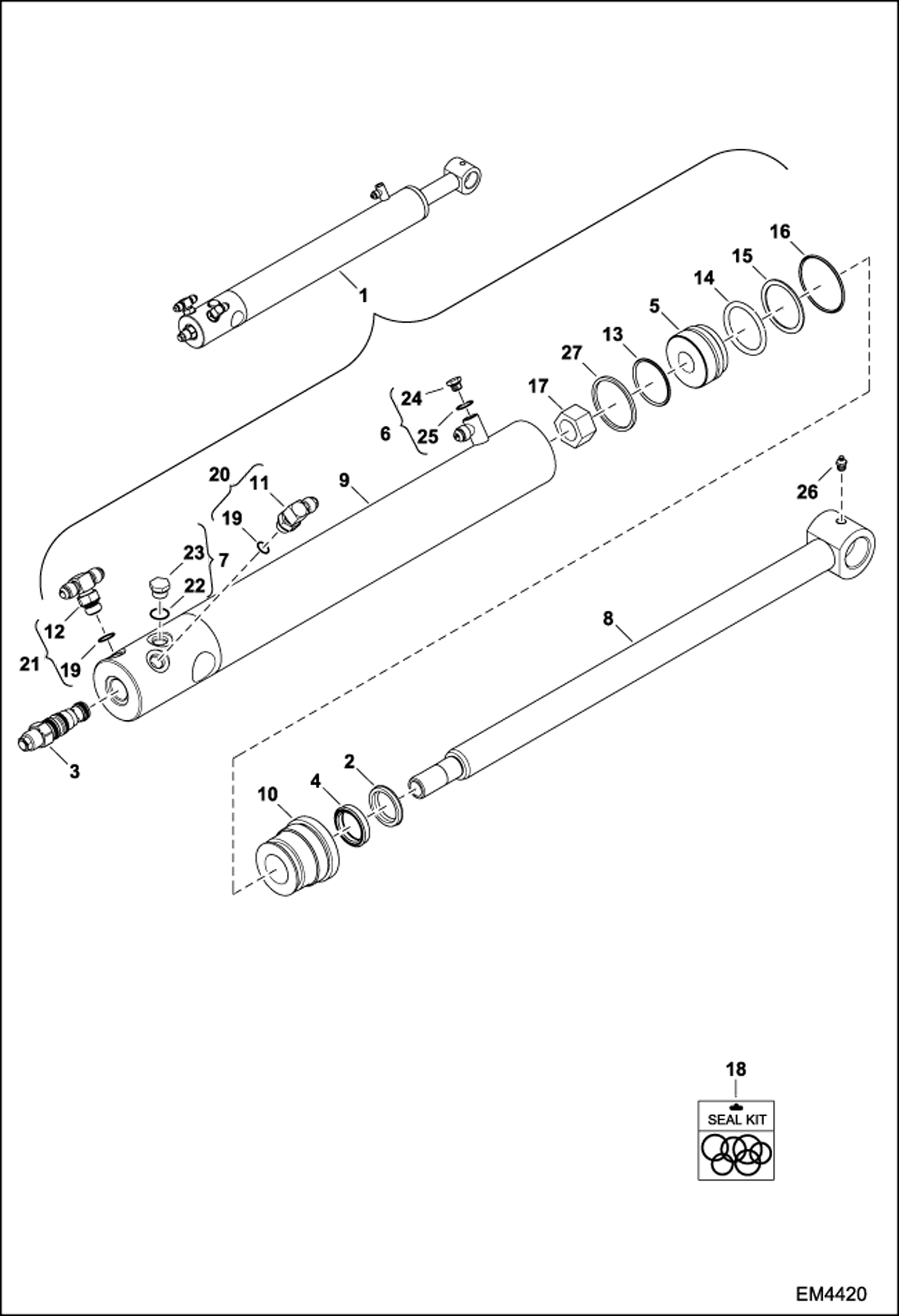

Запчасти Bobcat BACKHOE STABILIZER CYLINDER (A2HH, A36S) BACKHOE

1

6817540

CYLINDER W/Ref. 2-17, 19-25, 27

2

6665208

SEAL

3

6665481

VALVE

4

6667324

SEAL

5

6808611

PISTON

6

6812170

PLUG W/Ref. 24, 25

7

6812171

PLUG W/Ref. 22, 23

8

6814478

SHAFT

9

6817542

TUBE ASSY W/Ref. 6, 7, 16, 22-25

10

7106798

HEAD

11

FITTING NLA - Order Ref. 20

12

FITTING NLA - Order Ref. 21

13

6519328

SEAL

14

54K60128

O-RING

15

73K328

RING

16

82K140

O-RING

17

92D14

NUT

18

7137786

KIT, SEAL W/Ref. 2, 4, 13-17, 27 - A

19

79K6

O RING 10

20

17KB0606

FITTING W/Ref. 11, 19

21

19KB0606

TEE W/Ref. 12, 19

22

75K6

O-RING

23

PLUG NLA - Order Ref. 7

24

PLUG NLA - Order Ref. 6

25

75K3

O-RING

26

10H25

FITTING, GREASE 5 - B, D

27

54K30126

O-RING
