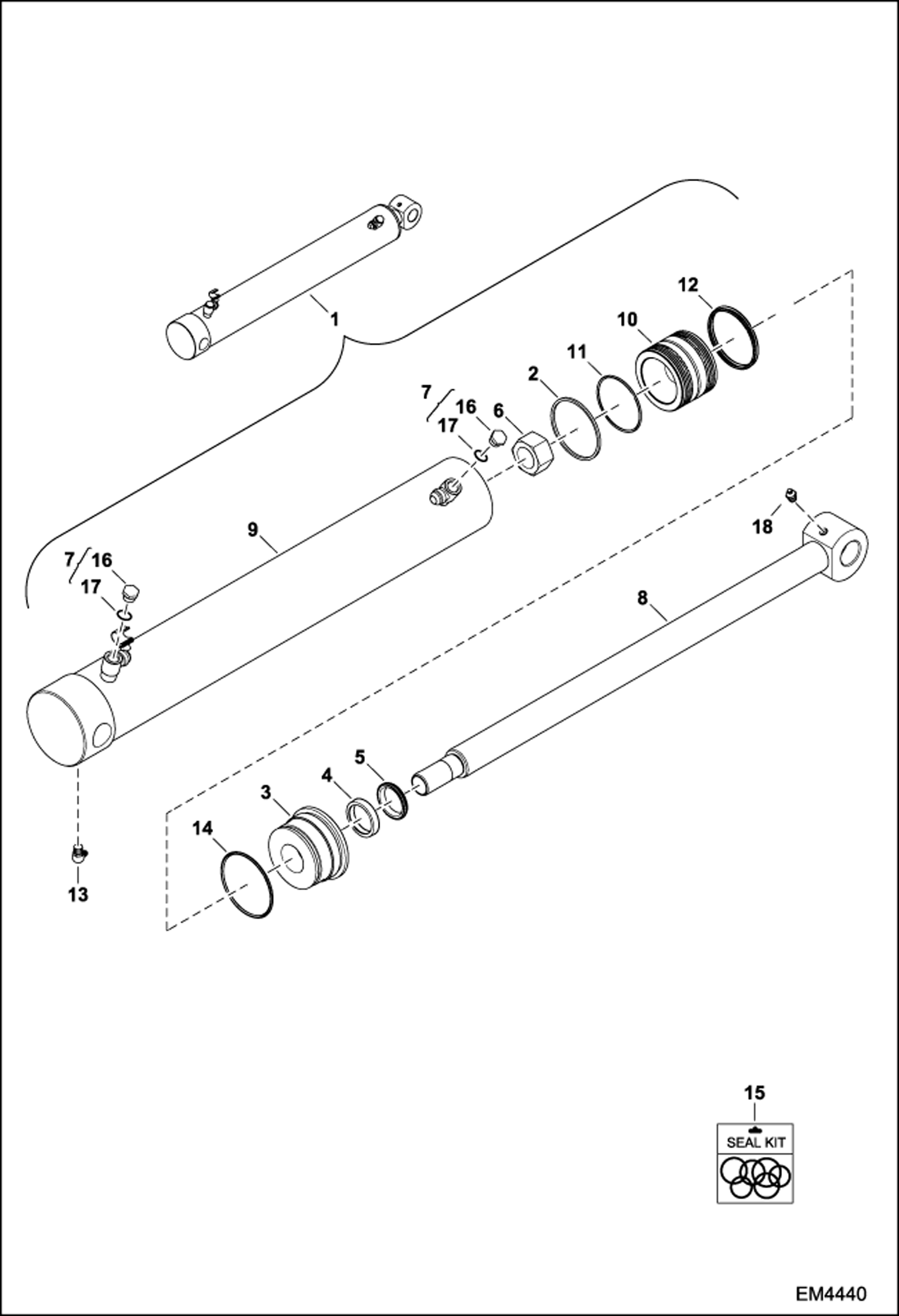

Запчасти Bobcat BACKHOE BOOM & ARM CYLINDER (A36S) BACKHOE

1

7104735

CYLINDER W/Ref. 2-14, 16, 17, for boom cylinder

1

7127686

CYLINDER W/Ref. 2-14, 16, 17, for boom cylinder

1

7148531

CYLINDER W/Ref. 2-14, 16, 17, for arm cylinder - A

1

7148530

CYLINDER W/Ref. 2-14, 16, 17, for arm cylinder

2

1530265

PISTON SEAL

3

6595035

HEAD for boom cylinder

3

6534985

HEAD for arm cylinder

4

6667326

SEAL for boom cylinder

4

6667327

SEAL for arm cylinder

5

6690707

WIPER, ROD CYL for boom cylinder - A

5

6686999

WIPER, ROD CYL for arm cylinder

6

6810539

NUT for boom cylinder

6

6810540

NUT for arm cylinder

7

6816855

PLUG W/Ref. 16-17

8

7104736

SHAFT for boom cylinder

8

7148529

SHAFT for arm cylinder - A

9

7104448

Tube W/Ref. 7, 14, 16, 17, for boom cylinder

9

7127707

CASE W/Ref. 7, 14, 16, 17, for boom & arm cylinder

9

7104740

CASE W/Ref. 7, 14, 16, 17, for arm cylinder

10

7104738

PISTON for boom cylinder

10

7147315

PISTON for arm cylinder

11

54K30300

O-RING

12

O-RING NLA - Order Ref. 20 - Was 54K60304 - B

13

RING NLA - Order Ref. 20 - Was 73K338 - B

14

82K238

O-RING

15

KIT, SEAL NLA - W/Ref. 2, 4-6, 11, 13, 14, for boom cylinder - Order 7196894 seal kit - Was 7135555 - A

15

7196894

KIT, SEAL Ref. 2, 4-6, 11, 14 & 20

15

7138008

SEAL KIT W/Ref. 2, 4-6, 11, 13, 14, for arm cylinder

16

PLUG NLA - Order Ref. 7

17

75K7

O-RING

18

10H25

FITTING, GREASE 5

19

10H25

FITTING, GREASE 5 for boom cylinder

19

12H15

FITTING, GREASE 5 for arm cylinder

20

7008353

SEAL, QUAD
