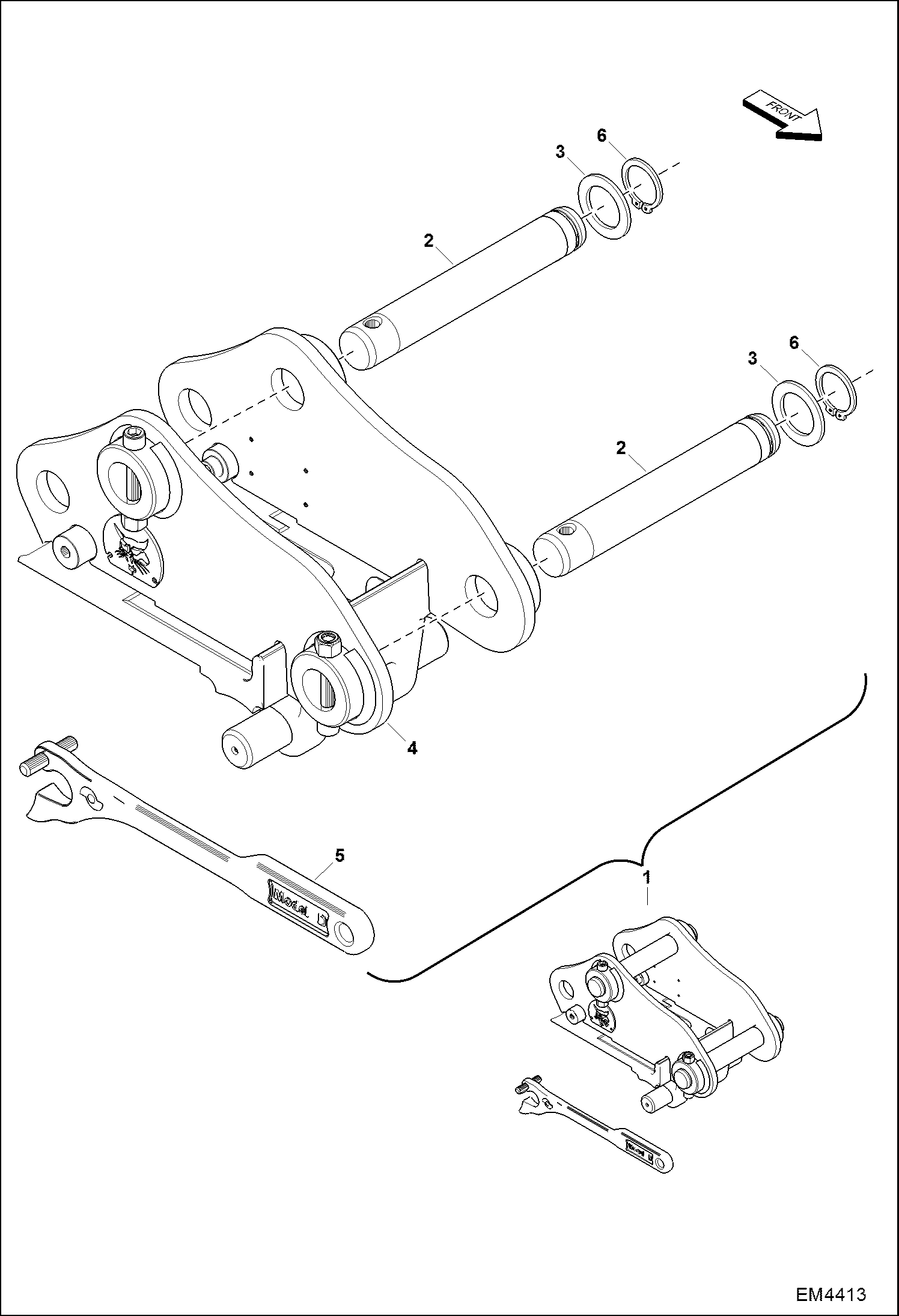

Запчасти Bobcat BACKHOE INSTALL KLAC (S/N A2HH02000 & Above, A36S02000 & Above, A6TW02000& Above) BACKHOE

1

KLAC SALES #7175401 - W/Ref. 2-6

1

KLAC SALES #7175400 - W/Ref. 2-6

2

7103010

PIN

2

7145478

PIN, BUCKET

3

6584872

WASHER Was 7136272 - A

3

7136273

WASHER

4

7175399

COUPLER, KLAC

4

7175398

COUPLER, KLAC

5

7180273

KEY, KLAC

6

22J24

RING SNAP

6

22J20

SNAP RING
