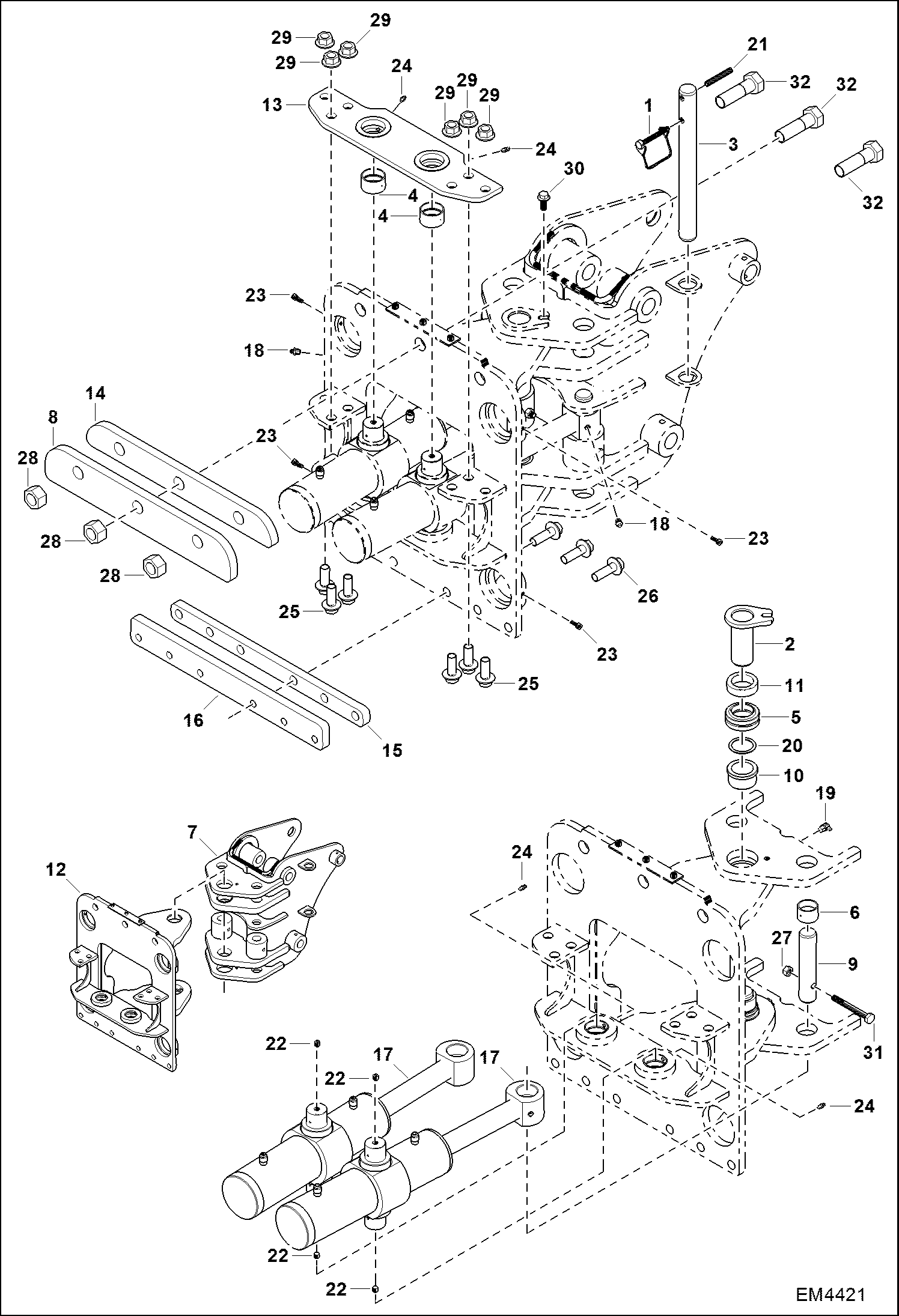

Запчасти Bobcat BACKHOE SWING FRAME (A2HH, A36S) BACKHOE

1

6510020

LOCK PIN

2

6531942

PIN

3

6593895

PIN

4

6650253

BUSHING

5

6651229

BEARING

6

6651449

BEARING

7

6963024

Swing Frame W/A

7

6977093

Swing Frame W/A

8

6963042

Plate

9

6963043

Pin

10

6968396

BUSHING

11

6968397

Bushing

12

6978946

Slide W/A

13

6978947

Bracket Cyl WA

14

6979316

Plate

15

6979729

Plate

16

6979730

Plate

17

6817561

SWING CYLINDER See Illustration SWING CYLINDER/ EM4422

18

10H25

FITTING, GREASE 5

19

12H15

FITTING, GREASE 5

20

13EM4015

Washer Shim

21

14J3740

PIN

22

16F2

PLUG

23

1GM616

BOLT

24

1HM6

OILER

25

30CM1640

Screw Hex HD W/F10.9

26

30CM1650

Screw Hex HD W/F10.9

27

4DM10

NUT

28

4DM24

NUT HEX

29

51DM16

NUT

30

59CM1025

SCREW HX FLNG W/T 8.8

31

7CM1090

BOLT, HEX SOCKET

32

7CM2480

Screw Hex HD 10.9
