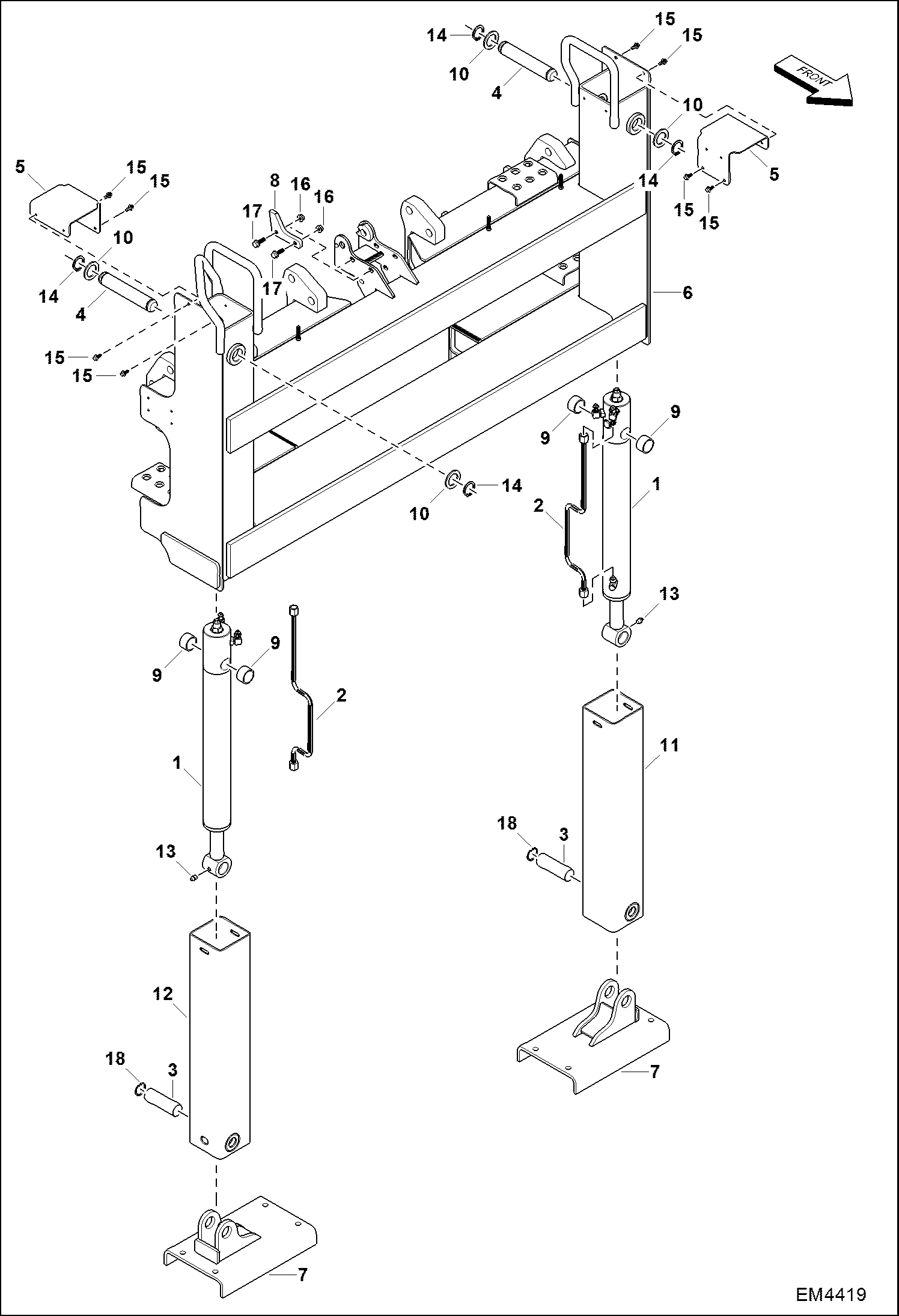

Запчасти Bobcat BACKHOE MAIN FRAME (A2HH, A36S) BACKHOE

1

6817540

CYLINDER See Illustration STABILIZER CYLINDER/ EM4420

2

6973697

TUBELINE

3

6978907

Pin Lower

4

6978908

Pin Upper

5

6978998

Cover Thin

6

6979703

Frame W/A

7

6979704

Swivel Plate W/A

8

6979722

Plate

9

6979761

Spacer

10

7136273

WASHER - A

11

7138185

STABILIZER W/A

12

7138186

STABILIZER W/A

13

10H25

FITTING, GREASE 5

14

22J20

SNAP RING

15

26GM6016

SCREW

16

51DM8

NUT

17

59CM825

Screw Hex FLNG W/T8.8

18

7JM32

SNAP RING
