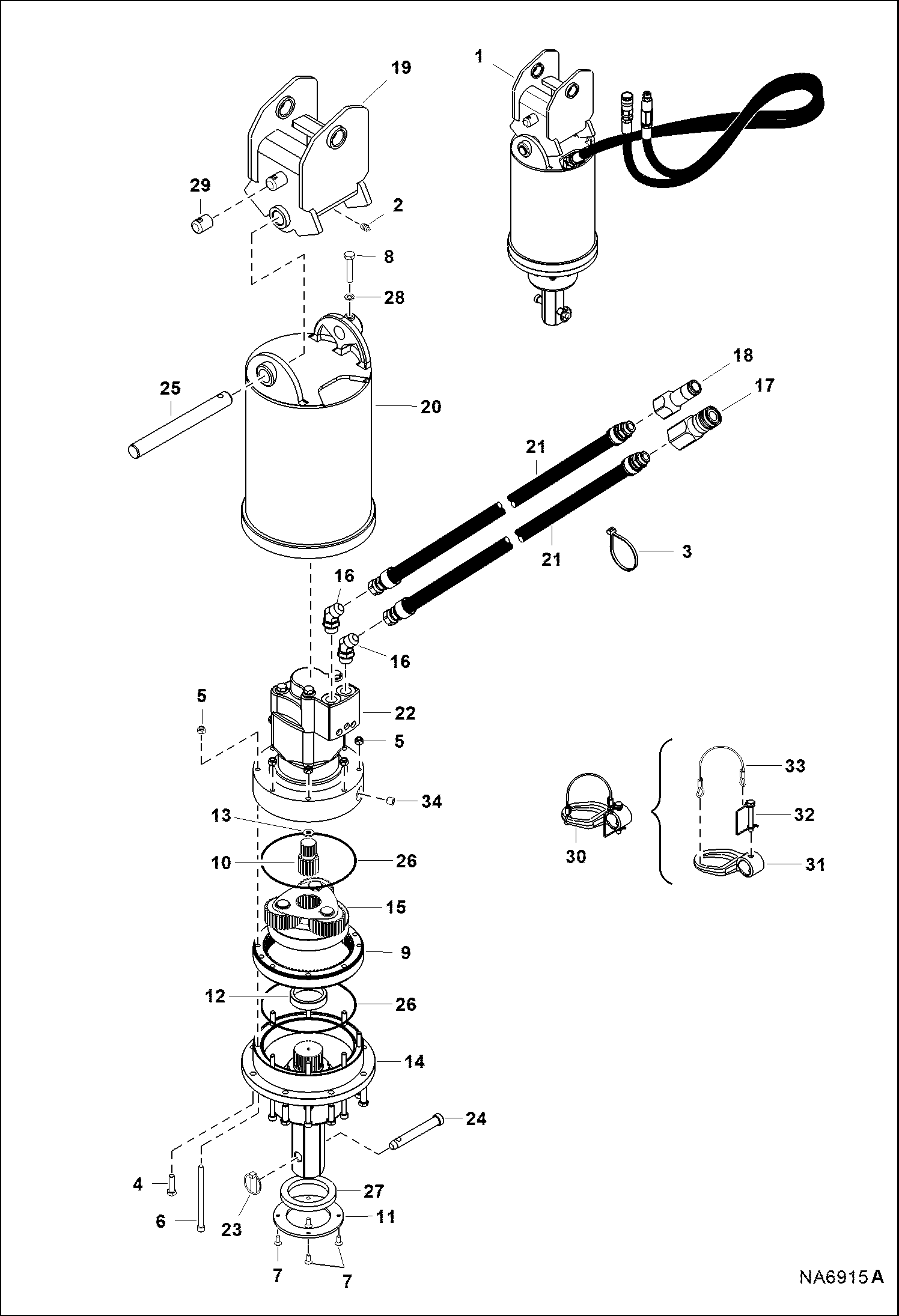

Запчасти Bobcat AUGERS AUGER (50PH B2KY) Компактные тракторы

1

50PH AUGER See Illustration AUGER/ NA6924 See Illustration AUGER/ NA6924 See Illustration AUGER/ NA6924 Ref. 1-3 - SALES #7227984 - 50PH - Also includes Ref. 2-33 on this page

2

10H25

FITTING, GREASE 5

3

6624289

STRAP, TIE

4

1CM1240

BOLT

5

7031588

NUT

6

3GM10160

SCREW

7

23GM0820

SCREW

8

1CM1265

BOLT

9

7031381

RING, RETAINING

10

7031382

SHAFT

11

7031383

SEAL

12

7031384

SPACER

13

7031385

SPACER

14

7031386

SHAFT

15

7031387

GEROLER

16

18KB1212

FITTING, HYD ELBOW

16

79K12

O RING 10

17

6672960

COUPLER, FF FEMALE straight

18

6674688

COUPLER, FF MALE straight

19

7219717

PIVOT, AUGER W/Ref. 29

20

7031388

MOUNT, MOTOR ASSY

21

6806190

HOSE

22

7031397

MOTOR, HYD See Illustration AUGER/ NA6915A See Illustration AUGER/ NA6915A See Illustration AUGER/ NA6915A

23

7031392

CLIP

24

7031393

PIN, AUGER

25

7031394

PIN, MOUNTING

26

7031395

O-RING

27

7031396

SEAL

28

7031589

WASHER

29

7170300

PIN, PIVOT

30

7161953

GUIDE, HOSE ASSY Ref. 31-33

31

GUIDE NSS - Order Ref. 30

32

7161559

PIN, SNAPPER

33

CABLE ASSY NSS - 304,8 mm (12'') long - Order 6558309 wire rope & (2) 6558310 sleeve

33

6558309

WIRE ROPE bulk - sold per foot

33

6558310

SLEEVE
