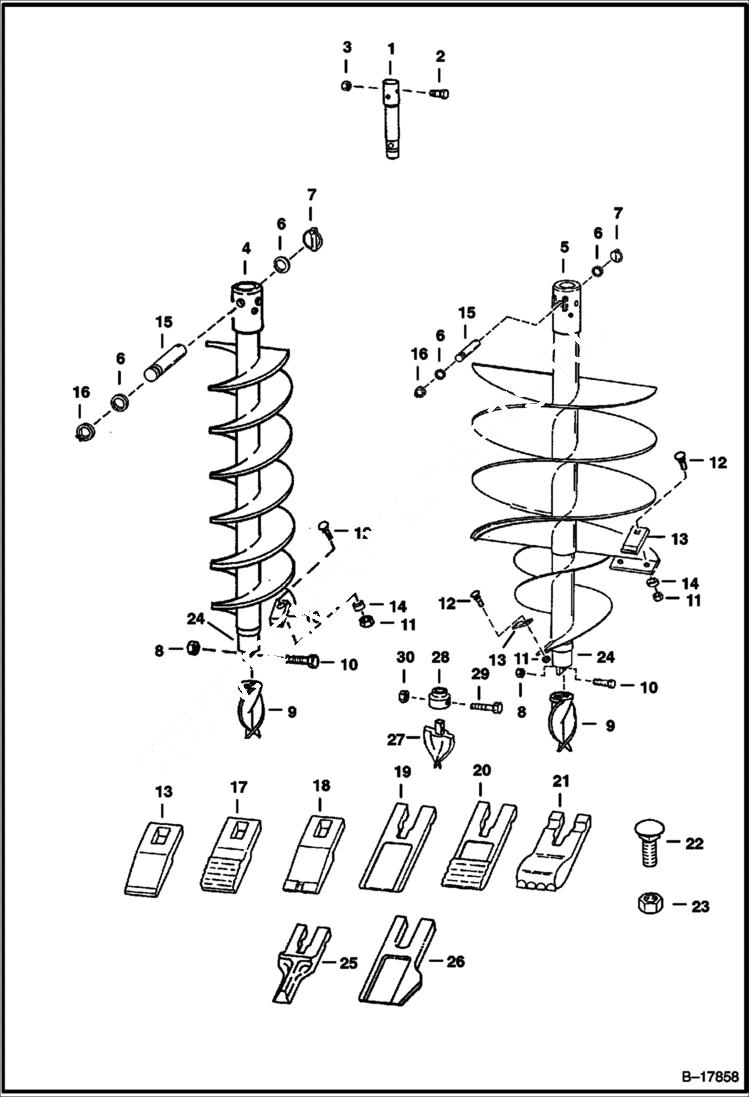

Запчасти Bobcat AUGERS AUGER (Bobcat - Round Drive) (McMillen) Loader

1

EXTENSION NLA - 14'' (355,6 mm) - Order 6675274 - Was Sales #6651504 - A

2

17C1472

BOLT

3

61D14

NUT

4

AUGER NLA - 6''(152mm) - 2 teeth - Order 6666891 -Was Sales #6659304 - A

4

AUGER NLA - 9''(229mm) - 3 teeth - Order 6666892 -Was Sales #6659305 - A

4

AUGER NLA - 12''(305mm) - 4 teeth - Order 6666893 -Was Sales #6659306 - A

4

AUGER NLA - 15''(381mm) - 5 teeth - Order 6666894 -Was Sales #6659307 - A

4

AUGER NLA - 18''(457mm) - 6 teeth - Order 6666895 -Was Sales #6659308 - A

4

AUGER NLA - 24''(610mm) - 8 teeth - Order 6666896 -Was Sales #6659310 - A

5

AUGER NLA - tree 18''(457mm) - 7 teeth - Order 6666899 - Was Sales 6659309 - A

5

AUGER NLA - tree 24''(610mm) - 9 teeth - Order 6666900 - Was Sales 6659311 - A

5

AUGER NLA - tree 30''(762mm) - 11 teeth - Order 6666901 - Was Sales 6659313 - A

5

AUGER NLA - tree 36''(914mm) - 13 teeth - Order 6666902 - Was Sales 6659315 - A

6

27E14

WASHER 5

7

6560382

PIN, LOCK snap

8

61D5

NUT

9

6651556

POINT Fishtail

10

17C524

BOLT

11

61D6

NUT 5 3/8'' (9,53mm)

11

85D8

NUT, 5 1/2'' (12,7mm)

12

10C620

BOLT 3/8'' (9,53mm)

12

10C820

BOLT 1/2'' (12,7mm)

13

TOOTH NLA - with 3/8'' (9,5 mm) bolt and nut - Order 6651555

13

6651555

TOOTH With 1/2'' (12,7mm) Bolt Nut

14

23E6

WASHER

15

6534667

PIN

15

6538313

PIN Use with Hex Shaft

16

6534668

SNAP RING

17

6654053

TOOTH Hardened Faces - With 1/2'' (12,7mm) Bolt & Nut

18

6654054

TOOTH Carbide Tips - With 1/2'' Bolt & Nut - Was 6641273 - A

19

7009806

TOOTH, AUGER does not include bolt & nut - Was 6665390 - A

20

7009809

TOOTH, AUGER Hardfaced - does not include bolt & nut - Was 6665391 - A

21

7011916

TOOTH, AUGER 10 Carbide Tips - does not include bolt & nut - Was 6665392 - A

22

10C1024

BOLT 5/8'' (15,86mm)

23

61D10

NUT 5/8'' (15,86mm)

24

6662265

ADAPTER drive - weld on

25

TOOTH NLA - chisel point - does not include rubberlok strip - order 7009790 tooth - Was 6662877 - A

25

7009790

TOOTH, AUGER includes rubberlok strip

26

TOOTH guide - does not include rubberlok strip - order 7009266 tooth - Was 6672127 - A

26

7009266

TOOTH, AUGER guide - includes rubberlok strip

27

6673192

POINT square fishtail

28

6673199

ADAPTER weld-on

29

17C652

BOLT

30

61D6

NUT 5
