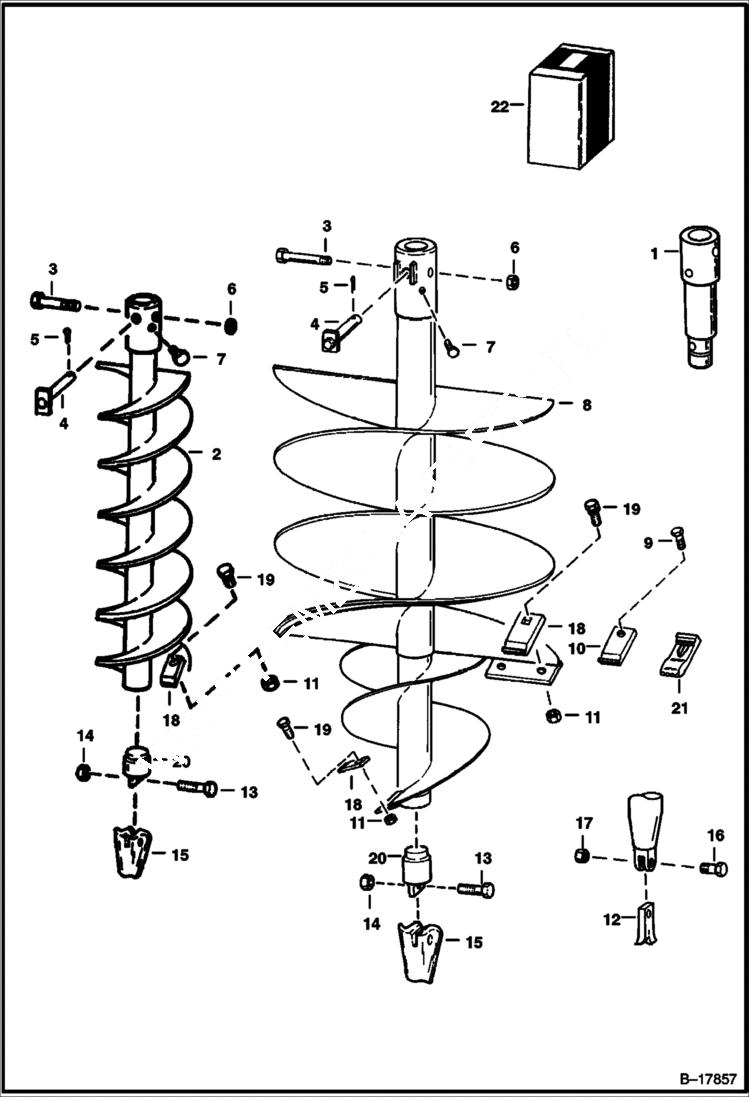

Запчасти Bobcat AUGERS AUGER (Lowe With 1/2 (12,7 mm) & 7/8 (22,23 mm) Holes) Loader

1

EXTENSION SALES

2

AUGER SALES - 6'' (152,4mm) - 2 teeth

2

AUGER SALES - 9'' (228,6mm) - 4 teeth

2

AUGER SALES - 12'' (304,8mm) - 4 teeth

2

AUGER SALES - 18'' (457,2mm) - 6 teeth

2

AUGER SALES - 24'' (609,6mm) - 9 teeth

3

17C888

BOLT 1/2'' (12,7mm) - For Round Shaft

4

6599663

PIN 7/8'' (22,23mm) - For Round Shaft

4

6631661

PIN 3/4'' (19,05mm) - For Hex Shaft

5

1F824

COTTER

6

81D8

NUT

7

17C816

BOLT

8

AUGER SALES - tree - 18'' (457,2mm) - 4 teeth

8

AUGER SALES - tree - 24'' (609,6mm) - 5 teeth

9

17C1024

BOLT

10

TOOTH NLA - Standard - Order Ref. 18 - Was 6599661 - A

10

TOOTH NLA - Tungsten Carbide - Order Ref. 21 - Was 6599659 - A

10

TOOTH NLA - long - Tungsten Carbide - Was 6599660 - A

11

81D10

NUT

12

POINT NLA - fishtail - Male - Order Ref. 22 - Was 6599662 - A

13

17C528

BOLT

14

81D5

NUT

15

6630663

POINT, AUGER PILOT female

16

17C632

BOLT 5

17

91D5

NUT 5

18

TOOTH ASSY NLA - W/Ref. 11, 18 & 19 - used with 10C-1024 carriage bolt - Order 6693183 tooth assy - Was 6641273 - A

18

6693183

KIT, TOOTH 10 W/Ref 11, 18 & 19 - used with 39C-1028 plow bolt

19

10C1024

BOLT carriage bolt - used with 6641273 tooth - Was 6641272 - A

19

39C1028

BOLT, PLOW Used W/Ref. 18 (6693183 tooth)

20

6657039

ADAPTER weld on for 6'' (152,4mm) Auger

20

6657040

ADAPTER weld on for 9'' (228,6mm) or 12'' (304,8mm) Auger

20

6657041

ADAPTER weld on for 18'' (457,2mm) or 24'' (609,6mm) Auger

21

6599659

TOOTH, AUGER Tungsten Carb. - used with 10C-1024 carriage bolt - Was 6659557 - D

22

6630664

KIT W/Ref. 15 & 20, For 6'' (152,4mm) Auger

22

6630665

KIT W/Ref. 15 & 20, For 9'' (228,6mm) 12'' (304,8mm), 15'' (381mm), TS18, TS24 & TS30 Augers

22

6630666

KIT W/Ref. 15 & 20, For 18'' (457,2mm), 24'' (609,6mm), 30'' (762mm), 36'' (914,4mm) & TS36 Augers
