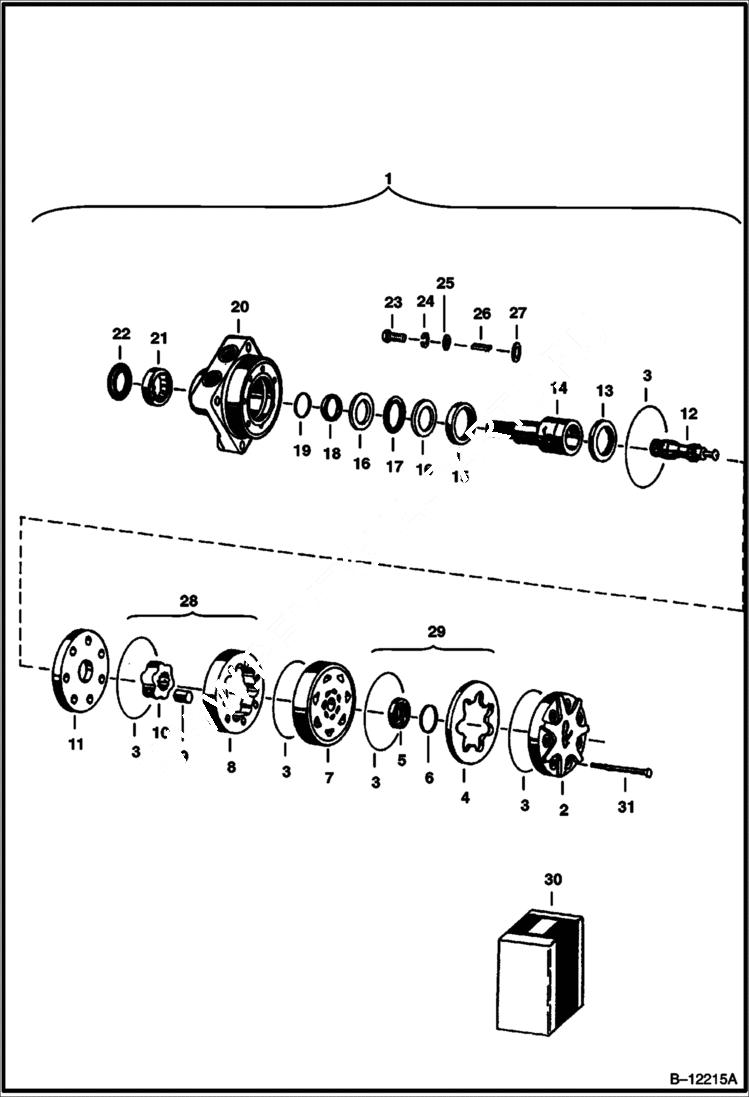

Запчасти Bobcat AUGERS AUGER (Hyd Motor) (MB 180103AAAA & ME 180103AAAA) (Bobcat Model 18 & 20) Loader

1

MOTOR NLA - MB180103 AAAA - Order 6658684 - Was 6650238 - A

1

6658684

MOTOR ASSY. ME 180103 AAAA

2

6649255

END COVER

3

O-RING NSS

4

COMMUTATOR NSS

5

RING NSS - commutator

6

SEAL NSS - commutator

7

6649253

MANIFOLD

8

STATOR NSS

9

VANE NSS

10

ROTOR NSS

11

6649250

WEAR PLATE MB 180103 AAAA

11

6661104

WEAR PLATE ME 180103 AAAA

12

6651215

DRIVE LINK Was 6551215 - D

13

6514056

BEARING

14

6649249

SHAFT MB 180103 AAAA

14

6666646

SHAFT ME 180103 AAAA

15

6649248

BEARING

16

WASHER NLA - thrust - Was 6514066 - A

17

6514052

BEARING

18

SEAL NSS

19

WASHER NSS - back-up

20

6649246

HOUSING W/Ref. 15-17 & 21

21

6649247

BEARING

22

SEAL NSS

23

6598270

BOLT

24

6598271

WASHER

25

SPACER NSS - Was 6598272 - A

26

6598269

KEY

27

RING NSS - Was 6598273 - A

28

6651214

ROTOR SET W/Ref. 8-10

29

6649254

COMMUTATOR assy - W/Ref. 4 & 5

30

6648966

SEAL KIT W/Ref. 3, 6, 18, 19 & 22

31

6651213

BOLT
