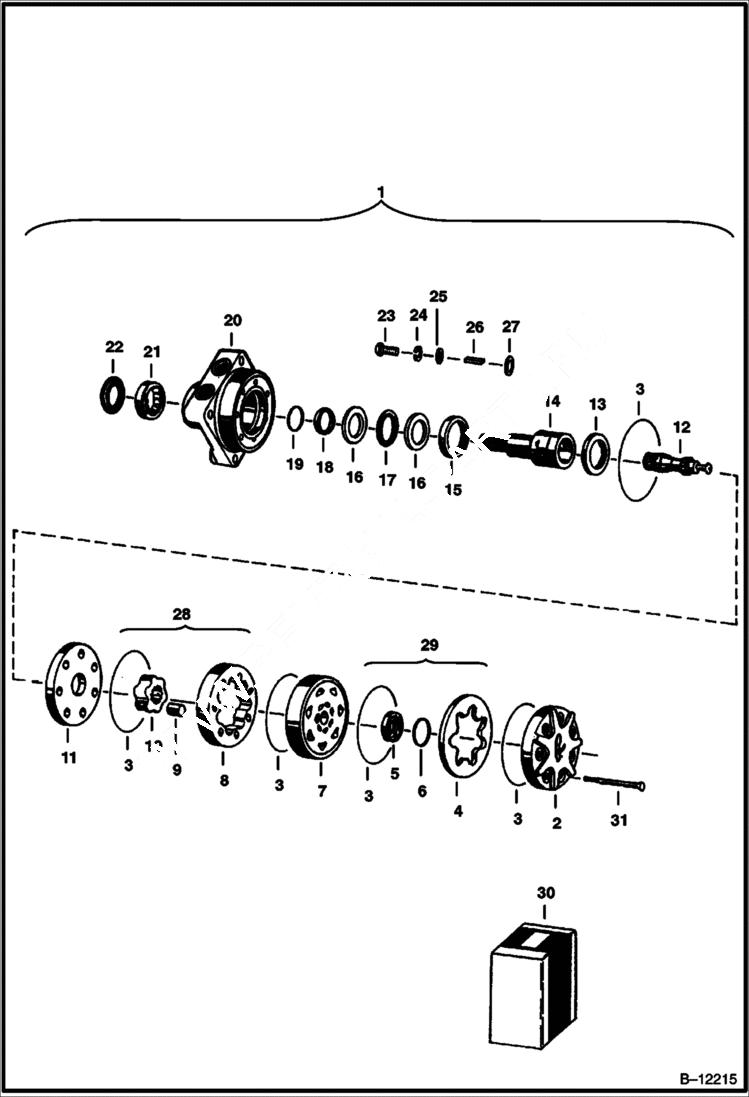

Запчасти Bobcat AUGERS AUGER (Hydraulic Motor) (Lowe) (MB 120103AAAA) (Bobcat - Model 12) Loader

1

6649263

MOTOR ASSY.

2

6649255

END COVER

3

O-RING NSS

4

COMMUTATOR NSS

5

RING NSS - commutator

6

SEAL NSS - commutator

7

6649253

MANIFOLD

8

STATOR NSS

9

VANE NSS

10

ROTOR NSS

11

6649250

WEAR PLATE

12

6649251

DRIVE LINK

13

6514056

BEARING

14

6649249

SHAFT

15

6649248

BEARING

16

WASHER NLA - thrust - Was 6514066 - A

17

6514052

BEARING

18

SEAL NSS

19

WASHER NSS - back-up

20

6649246

HOUSING W/Ref. 15-17 & 21

21

6649247

BEARING

22

SEAL NSS

23

6598270

BOLT

24

6598271

WASHER

25

SPACER NSS - Was 6598272 - A

26

6598269

KEY

27

RING NSS - Was 6598273 - A

28

6649252

ROTOR SET W/Ref. 8-10

29

6649254

COMMUTATOR assy - W/Ref. 4 & 5

30

6648966

SEAL KIT W/Ref. 3, 6, 18, 19 & 22

31

6644256

BOLT
