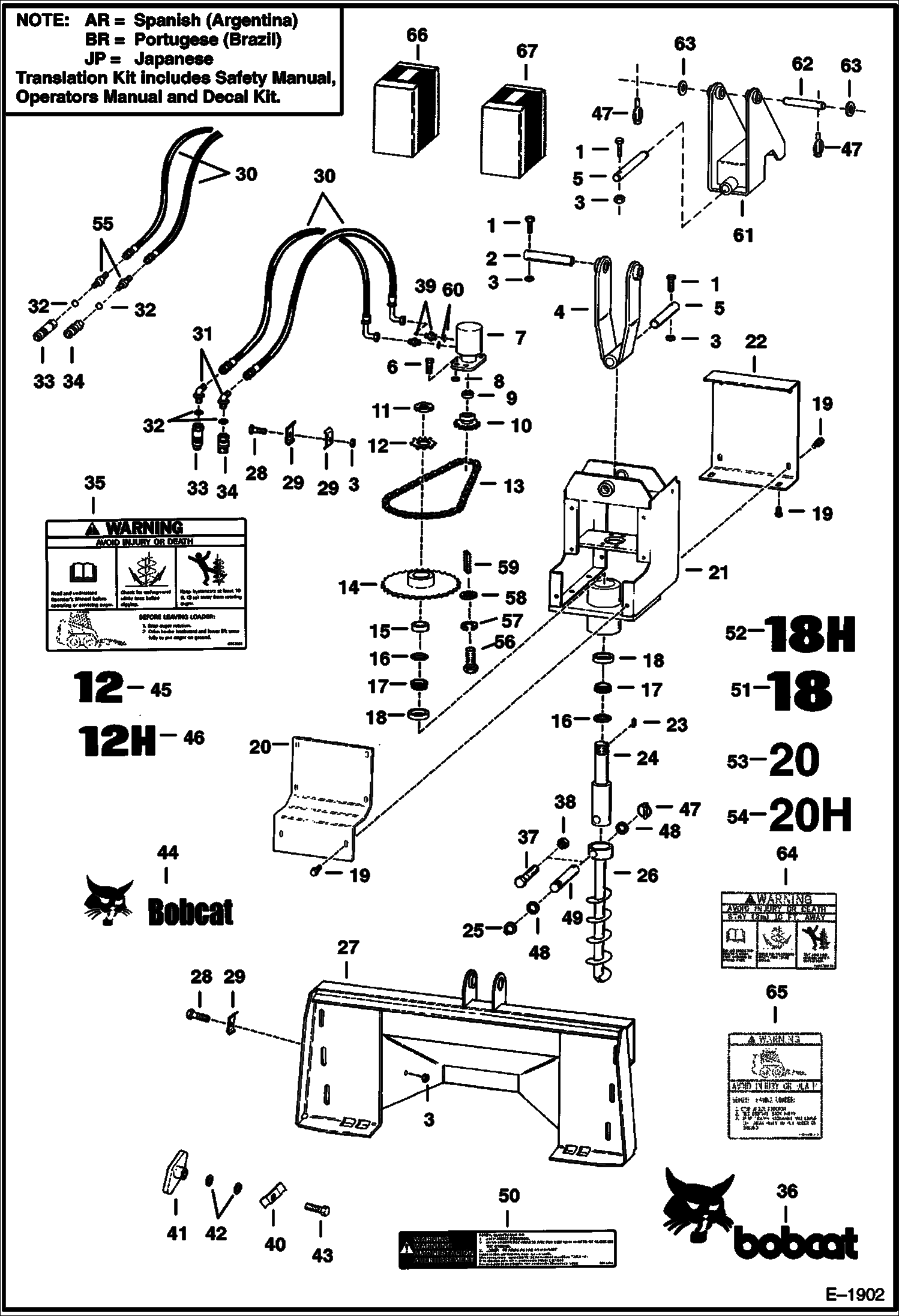

Запчасти Bobcat AUGERS AUGER (Bobcat - Model 12, 18 & 20) Loader

1

17C640

BOLT 5

2

6704288

PIN, PIVOT Was 6553061 - A

3

85D6

NUT, 5

4

6532295

LINK connector - used with Model 12, 18 & 20 - Was 6705470 - A

5

6531433

PIN

6

17C828

BOLT

7

MOTOR See Illustration AUGER/ B12215 MODEL 12 & 12H

7

MOTOR See Illustration AUGER/ B12215A MODEL 18 & 18H

7

MOTOR See Illustration AUGER/ B12215A MODEL 20 & 20H

8

85D8

NUT, 5

9

6531431

SPACER

10

6531430

SPROCKET, MOTOR AUGER motor

11

24H10

LOCKNUT

12

26H10

WASHER

13

6531427

CHAIN W/Connector link

13

6632387

LINK Was 6515186 - B

14

6531426

SPROCKET

15

6531428

SPACER

16

6513441

SEAL

17

6648054

BEARING

18

654152

CUP

19

84G3710

SCREW Was 84G003708B - B

20

6531424

COVER front - straight

20

6536625

COVER front - bent

21

HOUSING NLA - drive - Order 6537970 & 6536625

21

6537970

HOUSING Was 6534356 - A

22

6531423

COVER rear

23

7J7106

KEY

24

6531425

SHAFT Model 12, 18, 20

24

6534356

SHAFT hex - Model 12H, 18H, 20H

25

6534668

SNAP RING for 12, 18 & 20 - Was 6634668 - D

25

6651530

SNAP RING for model 12H, 18H & 20H

26

AUGER See Illustration AUGER/ B17858 SALES

27

6531406

BRACKET

28

17C632

BOLT 5

29

6502426

CLAMP

30

6713422

HOSE Was 6531429 - A

31

17K7

ELBOW W/Ref. 32 - for poppet couplers

31

17KB1012

FITTING, HYD ELBOW Use with flush face couplers - Was 1302104B - B

32

79K10

O RING 10 Use with poppet couplers

32

79K12

O RING 10 Use with flush face couplers - for flat boss face

32

99K12

O RING Use with flush face couplers - for tapered boss face

33

6598757

COUPLER, POPPET MALE straight

33

6674688

COUPLER, FF MALE straight - Was 6667808 - A

33

6679841

SEAL Was 6672026 - A

34

6598758

COUPLER, POPPET FEMALE straight

34

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

35

6701001

DECAL Was 6567255 - A

36

6560986

DECAL, LOGO BOBCAT AND HEAD LH - Was 6567987 - B

36

6560987

DECAL R.H. - Bobcat - Was 6567988 - B

37

BOLT See Illustration AUGER/ B17858 NLA

38

NUT See Illustration AUGER/ B17858 NLA

39

731794

CONNECTR

40

6563353

CLAMP

41

6647668

KNOB

42

25E17

WASHER 5

43

17C680

BOLT

44

6727324

DECAL, LOGO BOBCAT AND HEAD Was 6714353 - A

45

6534689

DECAL Model 12 - Was 6567256 - A

46

6534691

DECAL Model 12H

47

6560382

PIN, LOCK snap

48

27E14

WASHER 5 Model 12, 18 & 20

48

27E12

WASHER Model 12H, 18H & 20H

49

6534667

PIN Model 12, 18 & 20 - 5.52'' long

49

6711887

PIN 4.93''(125mm) long

49

6538313

PIN hex shaft - Model 12H, 18H, 20H

50

6701001

DECAL Was 6567256 - A

51

6534690

DECAL Model 18

52

6534692

DECAL Model 18H

53

6538565

DECAL Model 20

54

6704379

DECAL Model 20H

55

15K7

FITTING W/Ref. 32 - used with poppet couplers - flat boss face

55

ADAPTER NLA - W/Ref. 32 - used with flush face couplers - flat boss face - Was 755055B - A

55

ADAPTER NLA - W/Ref. 32 - used with flush face couplers - tapered boss face - Was 6715717 - A

55

15KB1012

FITTING, HYD CONNECTOR W/Ref. 32 - Use W/FF Coupler - Flat boss face

55

97K10

O-RING 10 for flared end

56

6598270

BOLT

57

6598271

WASHER

58

SPACER NSS - Was 6598272 - A

59

6598269

KEY

60

79K10

O RING 10

61

6713097

BRACKET Use with Model 12 auger and 6709656 Bobtach mount

62

6709675

PIN

63

6539898

BUSHING

64

6711884

DECAL

65

6711885

DECAL warning

66

6716745AR

KIT decal - SEE NOTE

66

6716745BR

KIT decal - SEE NOTE

66

6716745JP

KIT decal - SEE NOTE

66

6716746AR

KIT translation - SEE NOTE

66

6716746BR

KIT translation - SEE NOTE

66

6718956AR

KIT decal - SEE NOTE

66

6718956BR

KIT decal - SEE NOTE

66

6718956JP

KIT decal - SEE NOTE

66

6718955AR

KIT translation - SEE NOTE

66

6718955BR

KIT translation - SEE NOTE
