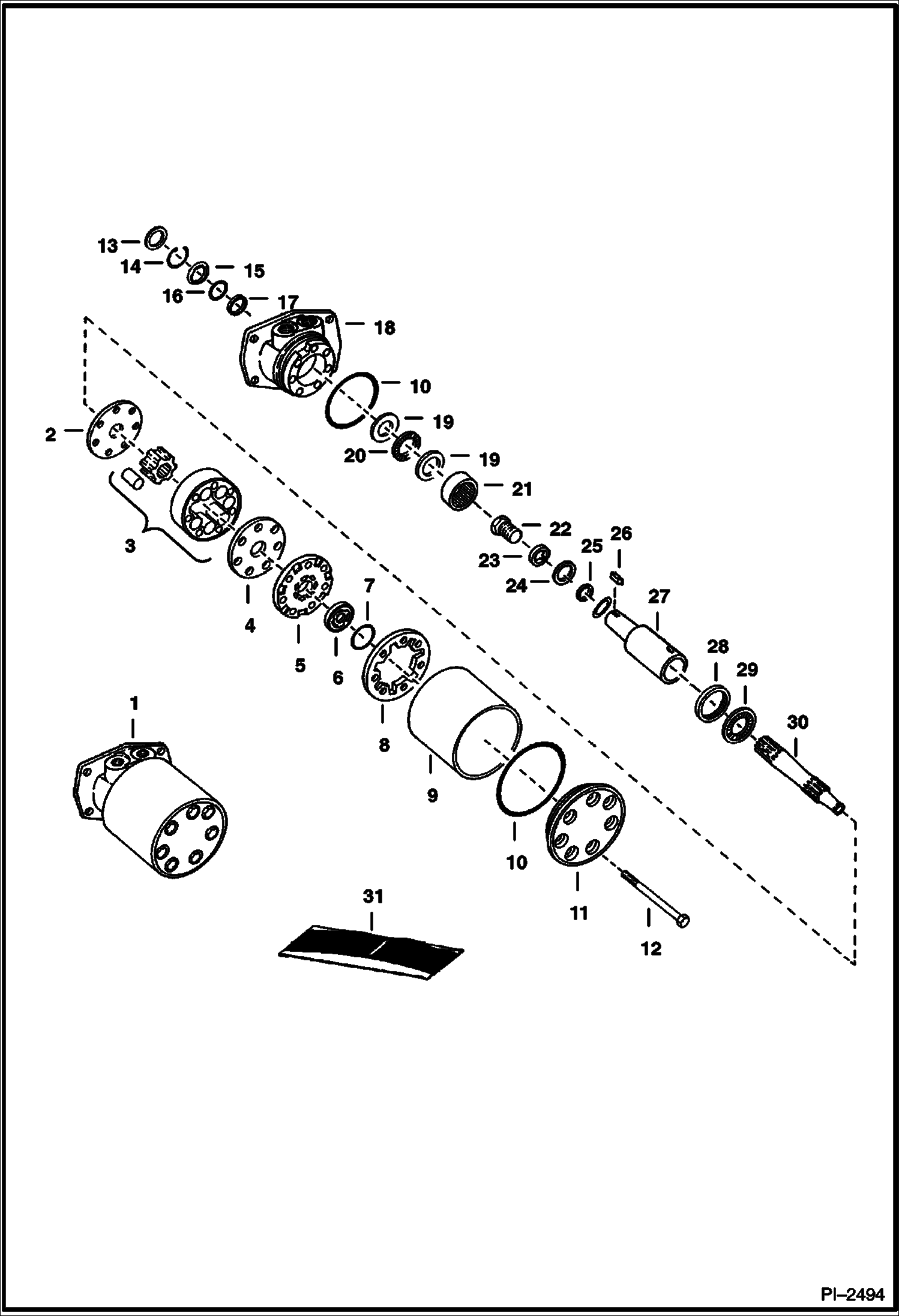

Запчасти Bobcat AUGERS AUGER (Hydraulic Motor) (Lowe) (MAB-16-010-A1) Loader

1

MOTOR NLA - Order 6649263 -Was 6513422 - A

2

6598260

WEAR PLATE

3

6598261

ROTOR

4

PLATE NSS - manifold - Order Ref. 5

5

MANIFOLD NLA - W/Ref. 4 - Was 6598263 - A

6

COMMUTATOR NSS

7

RING NSS - bonded

8

6512300

COMMUTATOR assy - W/Ref. 6 & 7 - Was 1577692B - A

9

SLEEVE NSS - Was 6598265 - A

10

SEAL NSS

11

COVER NLA - Was 6598266 - A

12

6598267

BOLT

13

SEAL NSS

14

SNAP RING NSS

15

SPACER NSS

16

WASHER NSS - back-up

17

SEAL NSS

18

6598257

HOUSING W/Ref. 19-21 & 28

19

WASHER NSS - thrust

20

BEARING NSS

21

BEARING NSS

22

6598270

BOLT

23

6598271

WASHER

24

SPACER NSS - Was 6598272 - A

25

RING NSS - Was 6598273 - A

26

6598269

KEY

27

SHAFT NLA - Order 6649263 - Was 6598258 - A

28

BEARING NSS

29

BEARING NSS

30

LINK NLA - drive - Was 6598259 - A

31

6513423

SEAL KIT Ref. 7, 10, 13 - 17
