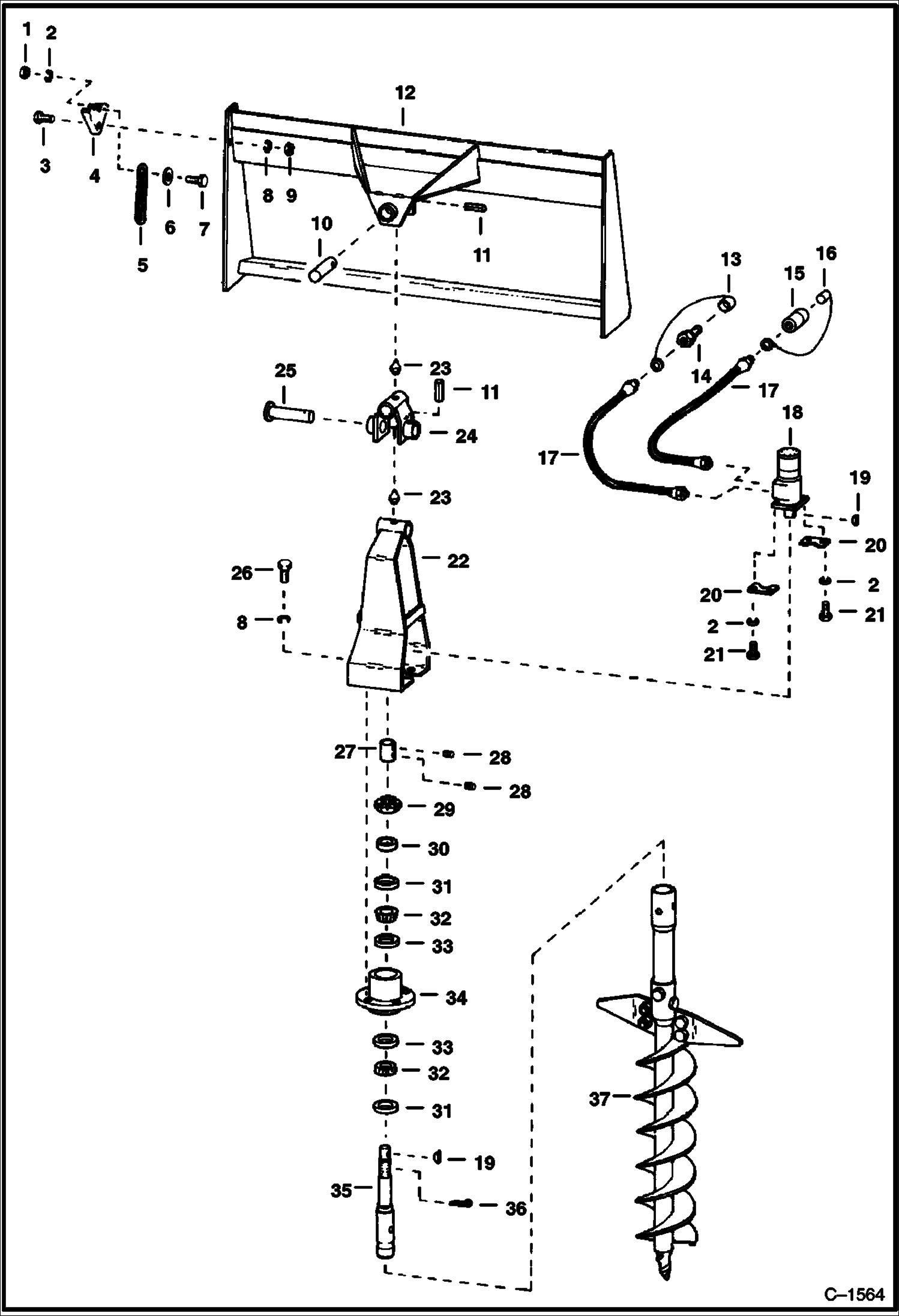

Запчасти Bobcat AUGERS AUGER Loader

1

61D6

NUT 5

2

4E6

WASHER

3

17C824

BOLT 5

4

6508277

HANGER

5

6502015

CHAIN

6

25E17

WASHER 5

7

17C620

BOLT

8

4E8

WASHER

9

61D8

NUT 5

10

HINGE PIN NLA - Was 6505640 - B

11

PIN NLA - .25'' Diameter 2'' Long - Was 14J2532

12

6508283

FRAME

13

6515168

CAP W/Chain

14

6598755

QUICK COUPLER male

15

6598756

QUICK COUPLER female

15

25K40026

O RING 10

16

6515167

PLUG W/Chain

17

6504524

HOSE

18

MOTOR See Illustration AUGER/ B1218 NLA - hyd - Was 6519861 - A

19

5J807

KEY woodruff

20

6508272

STOP motor

21

17C616

BOLT 5

22

6508302

MOUNT motor

23

1318381

FITTING

24

6516223

KNUCKLE

25

6505642

HINGE PIN

26

18C820

BOLT

27

6502711

COUPLER

28

15G506

SCREW

29

6502719

NUT

30

6502722

SPACER

31

6514043

SEAL oil

32

6648774

BEARING Was 743777B - A

33

6648776

RACE Was 743778B - A

34

6502526

HOUSING bearing - W/Ref. 32

35

6502718

SHAFT drive

36

1F440

PIN

37

AUGER See Illustration AUGER/ B17855
