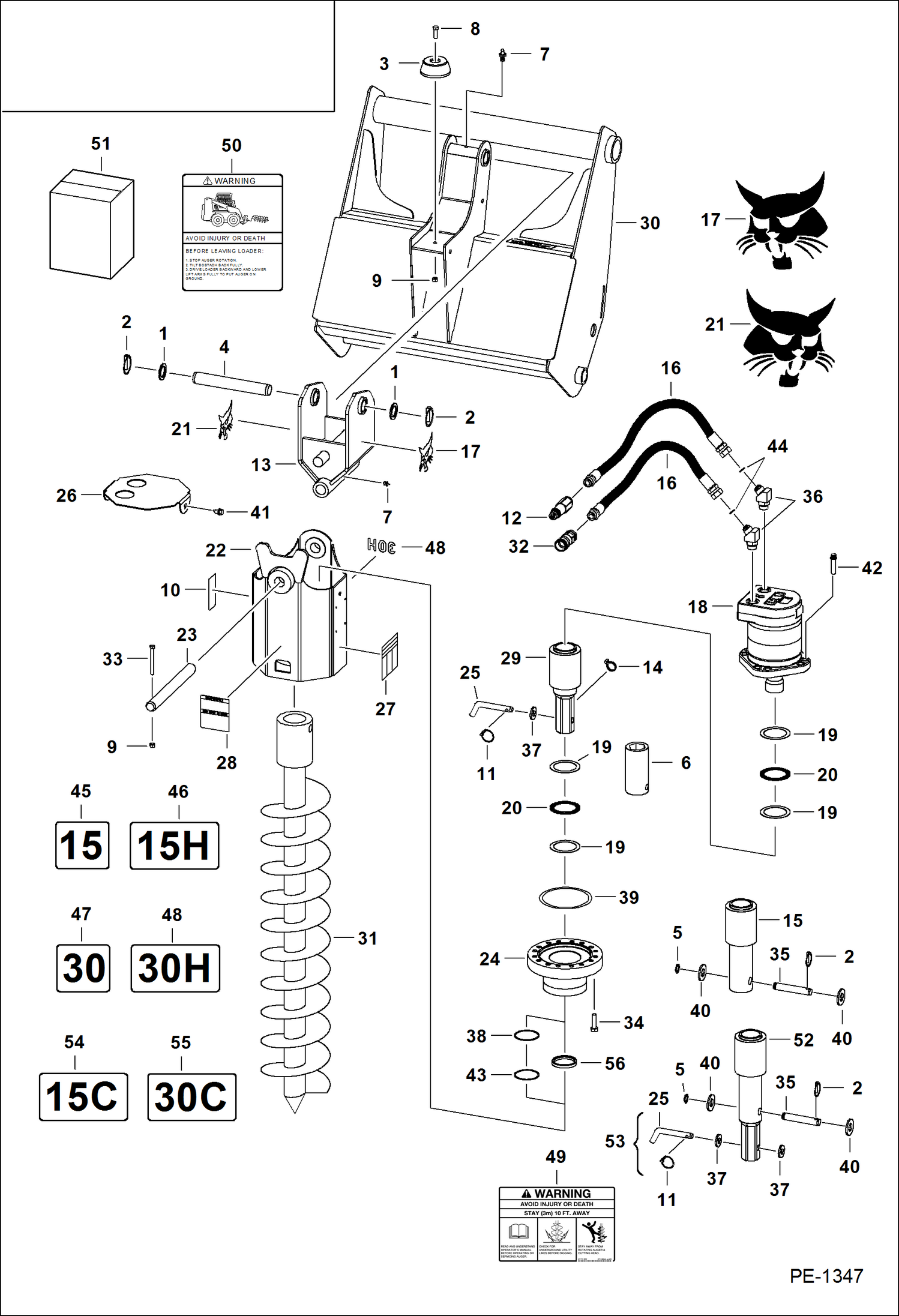

Запчасти Bobcat AUGERS AUGER (15 1874) (15C 9442) (15H 1875) (30 1876) (30C 9445) (30H 1877) Телескопические мини-погрузчики

1

6534111

WASHER

2

6560382

PIN, LOCK

3

6562109

STOP, SWING

4

6709675

PIN

5

6534668

SNAP RING

6

7137091

ADAPTER converts hex shaft to round - Was 6711904 - A

7

10H25

FITTING, GREASE 5

8

17C620

BOLT

9

61D6

NUT 5

10

DECAL NLA - patent - Was 6557224 - C

11

6649706

PIN lynch

12

6674688

COUPLER, FF MALE straight

13

6812766

COUPLER, AUGER FRAME W/A for excavators W/ exchange and loaders - Was 6714382 - A

14

6624289

STRAP, TIE

15

SHAFT NLA - round auger - Order Ref. 52 combination shaft - Was 6711619 - A

16

6806190

HOSE

17

6809228

DECAL RH

17

6809228

DECAL RH & LH

18

MOTOR See Illustration AUGER/ MS2787 See Illustration AUGER/ C3426 model 15 & 15H

18

MOTOR See Illustration AUGER/ MS2787 See Illustration AUGER/ C3426 model 30 & 30H

19

6668769

WASHER

20

6668770

BEARING

21

6809229

DECAL LH

22

6709668

MOUNT motor

23

6709674

PIN pivot

24

HOUSING NLA - with .210'' wide seal groove - order 7174785 housing and 7009143 seal - Was 6711242 - A

24

7174785

HOUSING, AUGER with .425'' wide seal groove

25

6809735

PIN

26

6711646

COVER motor - used with 157-0009-003 or 157-0010-003 motors

26

7163574

COVER, MOTOR Use with 157-0009-005 or 157-0010-005 motors

27

6711884

DECAL

28

6711885

DECAL warning

29

SHAFT NLA - hex auger - Order Ref. 52 combination shaft - Was 6810003 - A

30

FRAME SALES - mounting - Order from Sales # 6810023

31

AUGER BIT See Illustration AUGER/ B14110 See Illustration AUGER/ B14384 See Illustration AUGER/ TS1988

32

6672960

COUPLER, FF FEMALE straight

33

17C656

BOLT

34

17C828

BOLT

35

6711887

PIN

36

ELBOW NLA - W/Ref. 44 - Order 18KB01212B - Was 18KV00008B - A

36

97K12

O'RING flared end

36

18KB1212

FITTING, HYD ELBOW

37

27E10

WASHER

38

25K40224

O RING 10 Use with housing with .210'' wide seal groove

39

25K40608

O-RING, 10

40

27E14

WASHER 5

41

84G3712

BOLT 5

42

93G832

BOLT

43

73K232

RING, BACK-UP Use with housing with .210'' wide seal groove

44

99K12

O RING

45

6711892

DECAL 15

46

7145344

DECAL 15H - Was 6711893 - A

47

6711894

DECAL 30

48

6711895

DECAL 30H

49

6711884

DECAL

50

6711885

DECAL warning

51

6716745AR

KIT decal - spanish (argentina)

51

6716754AR

KIT translation - spanish (argentina)

51

6809732AR

KIT translation - for 15C & 30C augers - spanish (argentina)

51

6809732BR

KIT translation - for 15C & 30C augers - portugese (brazil)

52

7178300

SHAFT, DRIVE AUGER combination - Was 6815086 - A

53

6809733

KIT hex auger hardware - W/Ref. 11, 25 & 37

54

6809230

DECAL 15C

55

6809231

DECAL 30C

56

7009143

SEAL Use with 7174785 housing with .425'' wide seal groove
