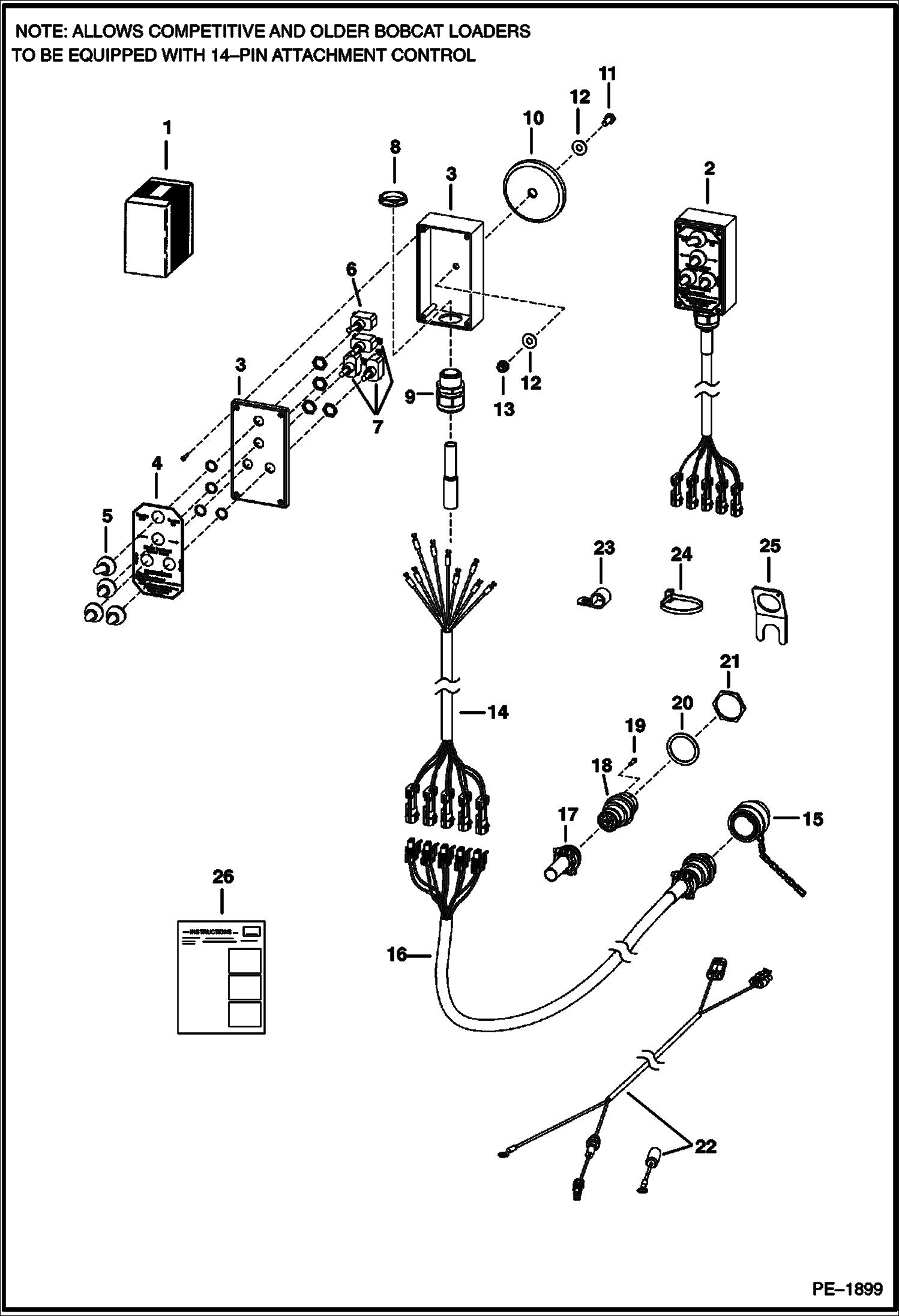

Запчасти Bobcat ATTACHMENT CONTROL KITS ATTACHMENT CONTROL KIT 14 PIN - ATTACHMENTS PLUS For Loaders Without Electric Control System Loader

1

KIT See Illustration ATTACHMENT PLUS KIT/ NA6520 - NLA - Ref. 2-26 - Order 7214742 kit - Was 6815254 - A

2

6733934

CONTROL BOX W/Ref. 3 - 14 - includes harness

3

6734310

ENCLOSURE box only

4

6814864

DECAL, INSTRUCTION

5

6681609

BOOT

6

6681612

SWITCH

7

6681611

SWITCH

8

6681613

NUT

9

6681608

CONNECTOR

10

6714125

MAGNET

11

17C410

BOLT 10

12

25E14

WSHR

13

83D4

NUT 10

14

HARNESS NSS - Order Ref. 2

15

6664035

CAP

16

6733933

HARNESS 14-pin

17

6669286

CLAMP W/saddles

18

6667569

CONNECTOR, RECEPTACLE also order (14) of Ref. 19

19

6664040

PIN male

20

6664037

WASHER

21

6664036

NUT

22

6734311

HARNESS

23

30H36

CLIP

24

6624289

STRAP, TIE

25

6731974

MOUNT

26

6902299

INSTRUCTIONS
