Запчасти Bobcat ATTACHMENT CONTROL KITS ATTACHMENT RENTAL/DEMO KIT Loader

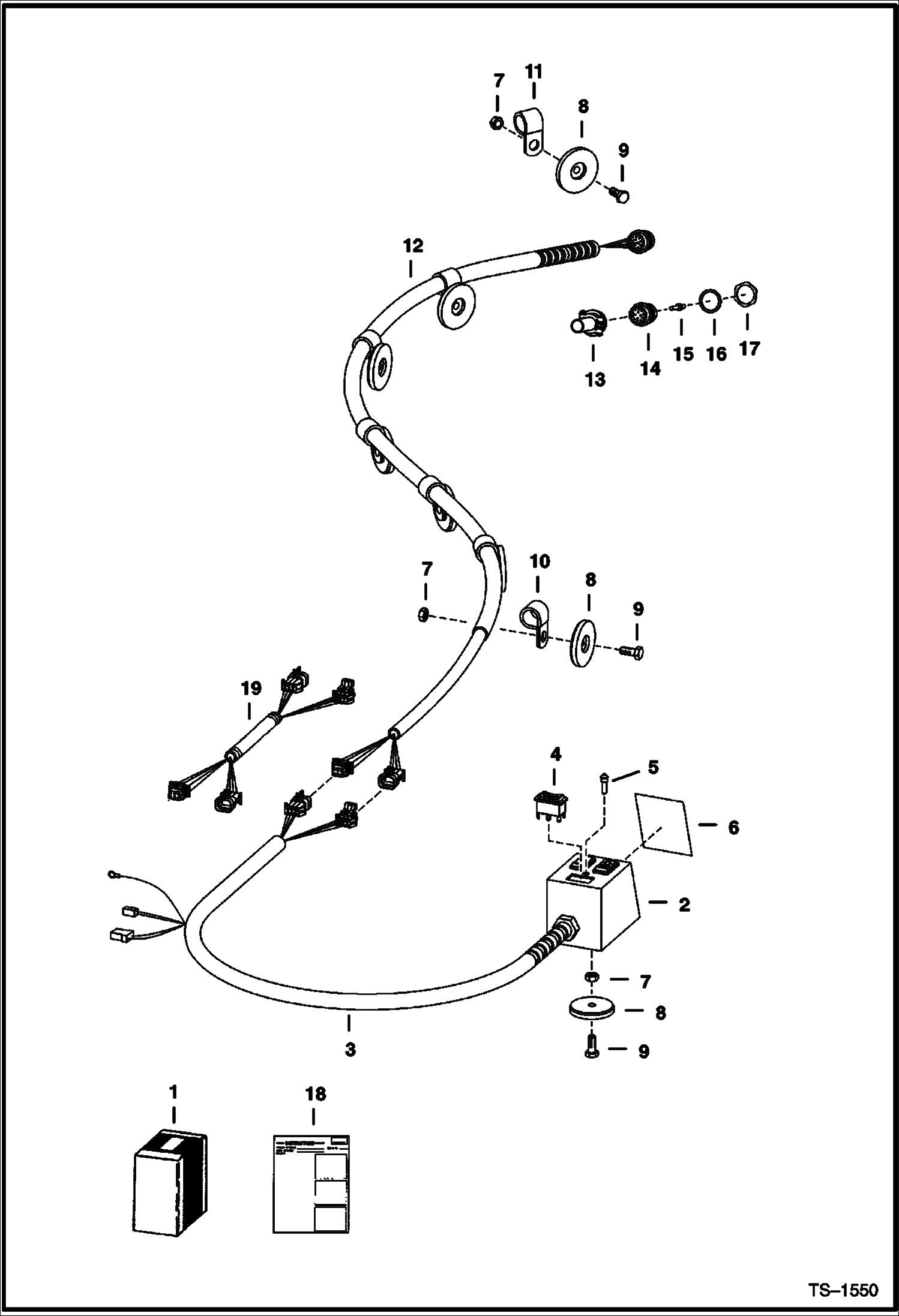

Схема запчастей Bobcat ATTACHMENT CONTROL KITS - ATTACHMENT RENTAL/DEMO KIT Loader

Артикул

Название

Примечание

Количество

1

6714215

KIT W/Ref. 2 - 18

2

SWITCH ASSY NSS - Order Ref. 1

3

6714122

HARNESS

4

6669639

SWITCH rocker

5

6671718

LIGHT indicator

6

6714138

DECAL

7

61D4

NUT 5

8

6714125

MAGNET

9

17C408

BOLT

10

30H34

CLAMP

11

30H58

CLIP

12

6714123

HARNESS

13

6669286

CLAMP W/Saddles

14

6667569

CONNECTOR, RECEPTACLE also Order Qty. 14 of Ref. 15

15

6664040

PIN male

16

6664037

WASHER

17

6664036

NUT

18

6900388

INSTRUCTIONS

19

6716379

HARNESS

Выбрано товаров: 19
