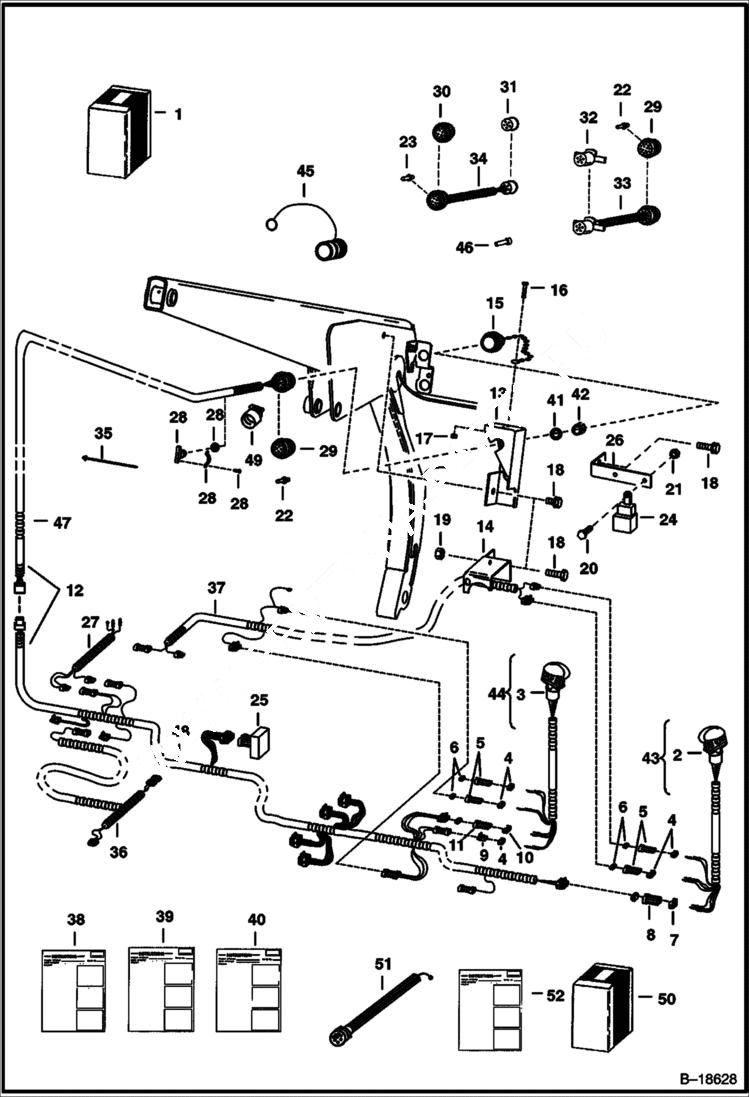

Запчасти Bobcat ATTACHMENT CONTROL KITS WIRING KIT Loader

1

KIT SALES - controls - For 50 Series Loaders - W/handles - Ref. 2-28, 35 & 39

1

KIT SALES - controls - For 50 Series Loaders - W/O handles - Ref. 12 - 28, 35 & 39

1

6706824

ATTACH CNTRL KIT controls - For 40 Series Loader - W/handles - Ref. 2 - 28 & 35 - 38 - Was SALES - A

2

6680413

HANDLE ASSY R.H. - Also Order Ref. 4-8 - Was 6706340 - A

2

6640690

PIN

2

6641176

SEAL

3

6680412

HANDLE ASSY L.H. - Also Order Ref. 4-6 & 9-11 - Was 6707976 - A

3

6640690

PIN

3

6640691

PIN

3

6641176

SEAL

3

6662257

PIN

3

6680447

DECAL Was 6677370 - A

4

6641180

LOCK Use W/ 2-pin connector

4

6640700

LOCK 3-pin

5

6641179

CONNECTOR 2-pin

5

6640699

CONNECTOR 3-pin

6

6649683

SEAL For Use W/2 - pin connector

6

6659553

SEAL For Use W/3 - pin connector

7

6641181

LOCK 6-pin

8

6641173

CONNECTOR 6-pin

9

6641178

CONNECTOR 2-pin

10

6664186

LOCK 2 - pin

11

6664184

CONNECTOR 2 - pin

12

HARNESS NLA - one piece - Order Ref. 47, 48, 6711621 & (4) of 6665005 - Was 6705901 - A

13

MOUNT NLA - Order 6706753 Mount

13

6706753

MOUNT Use with Ref. 12

13

6711621

MOUNT Use with Ref. 47

14

MOUNT NLA - Order 6706753 Mount

15

6664035

CAP

16

45G508

BOLT

17

50D5

NUT

18

17C512

BOLT 5

18

84G3716

SCREW 5 Use W/6706753 Mount

19

85D4

NUT 5

20

45G1212

BOLT

21

50D12

NUT

22

6664040

PIN male

23

6664041

SOCKET female

24

6651975

SWITCH magnetic - used with Ref. 12

24

6670312

SWITCH, MAGNETIC relay - Use W/Ref. 48 - Was 6665005 - A

25

6664388

DIODE memory

26

6702650

MOUNT

27

6706446

HARNESS

28

6649028

CLAMP

29

6667569

CONNECTOR, RECEPTACLE 14-pin - Not in Kit - Also Order (14) of Ref. 22 - Was 6664039 - A

30

6665001

CONNECTOR, ELECTRICAL 14-pin - W/Ref. 49 - Not in Kit - Also Order (6) of Ref. 23 - Was 6664034 - A

31

6664181

CONNECTOR Not in Kit - Trailer style

32

6664182

CONNECTOR Not in Kit - Trailer style

33

6706392

HARNESS Not in Kit - connects trailer style loader harness to 14-pin attachment harness - W/Ref. 29 & 32

34

6706391

HARNESS Not in Kit -connects 14-pin loader harness to trailer style attachment harness - W/Ref. 30 & 31

35

6610510

TIE

36

6706552

HARNESS For Grader & Stump Grinder

37

6706816

HARNESS 40 Series Control Elect. Kit

37

6648308

CONNECTOR 2-pin

37

6648310

LOCK 2-pin

38

6722846

INSTRUCTIONS 40 Series Control Elect. Kit

39

6722758

INSTRUCTIONS 50 Series Control Elect. Kit

40

6722759

INSTRUCTIONS FOR REF. 2-11 - NOT IN KIT

41

6664037

WASHER

42

6664036

NUT

43

6706567

KIT Handle assy - Ref. 2, 4-8 & 40

44

6706568

KIT Handle assy - Ref. 3, 4-6, 9-11, & 40

45

6664038

DUST CAP

46

6665370

PLUG For unused holes in connectors

47

6710299

HARNESS, ATTACHMENT PWM

48

6710300

HARNESS

49

6669286

CLAMP W/saddles

50

6708919

KIT Connector assy - W/Ref. 51 & 52 - Used to convert old attachment to new controls except angle broom

51

6709154

HARNESS

52

6724320

INSTRUCTIONS
