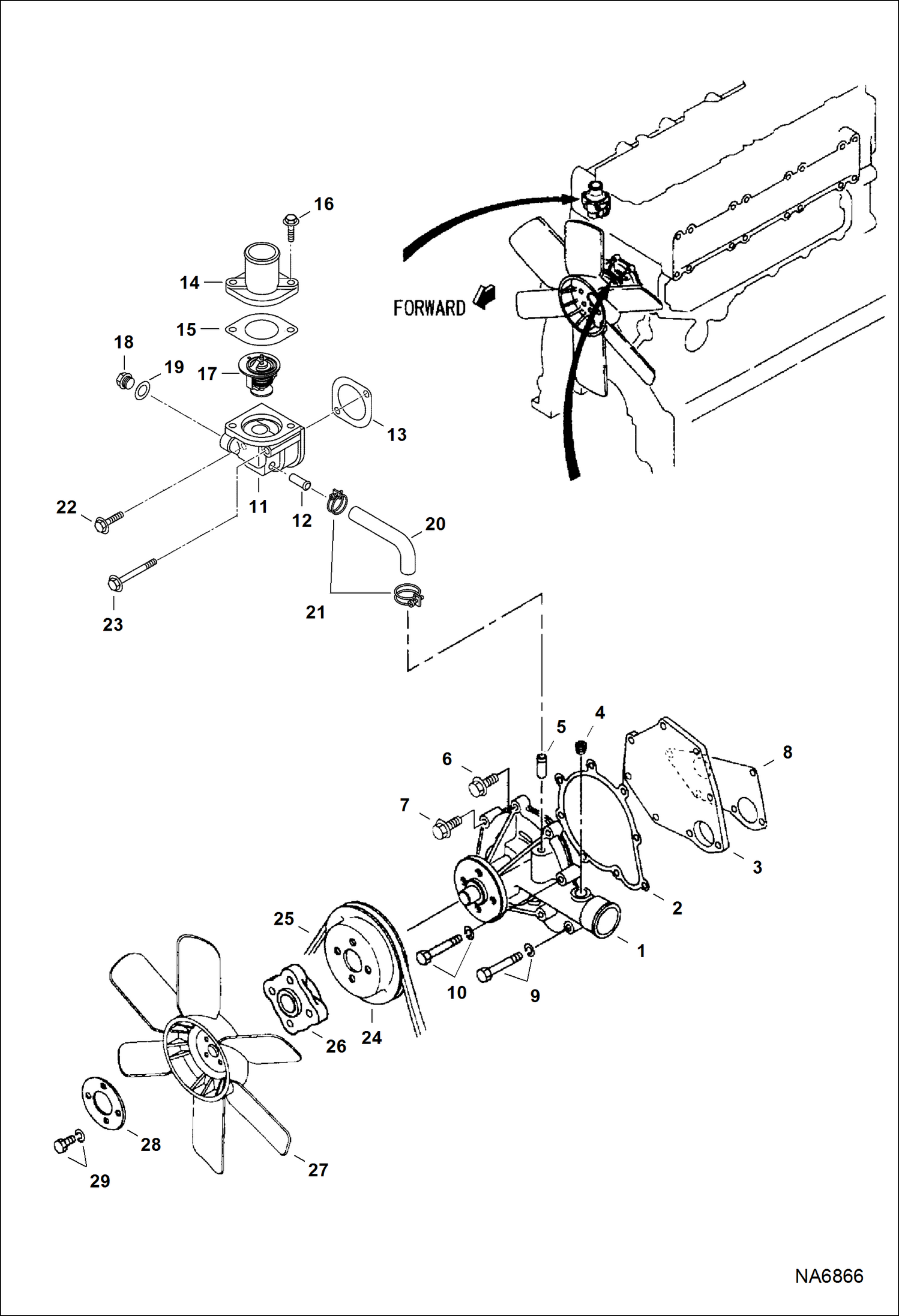

Запчасти Bobcat ASPHALT HEATER & GENERATOR ASPHALT HEATER & GENERATOR (Engine) (Water Pump & Thermostat) Loader

1

7026396

PUMP, WATER W/Ref. 2-7

2

7026397

GASKET, PUMP WATER

3

7026393

COVER, PUMP

4

7026394

PLUG

5

PIPE NSS - Order Ref. 1

6

7026563

BOLT, FLANGE

7

7026542

BOLT, FLANGE

8

7026398

GASKET, PUMP WATER

9

7026553

BOLT, W/WASHER

10

7026555

BOLT, W/WASHER

11

7026402

FLANGE, WATER W/Ref. 12

12

PIPE NSS - Order Ref. 1

13

7026401

GASKET

14

7026399

COVER, THERMOSTAT

15

7026400

GASKET, THERMOSTAT

16

7026541

BOLT, FLANGE

17

7026403

THERMOSTAT

18

7026565

PLUG, DRAIN

19

7026297

GASKET

20

7026404

HOSE, WATER FORMED

21

7026117

CLAMP, HOSE

22

7026543

BOLT, FLANGE

23

7026544

BOLT, FLANGE

24

7026395

PULLEY, PUMP WATER

25

7026119

BELT, FAN

26

7026438

SPACER

27

7027292

FAN, ENG COOLANT See Illustration ASPHALT HEATER & GENERATOR/ NA6879

28

7026301

PLATE

29

7026552

BOLT, W/WASHER
