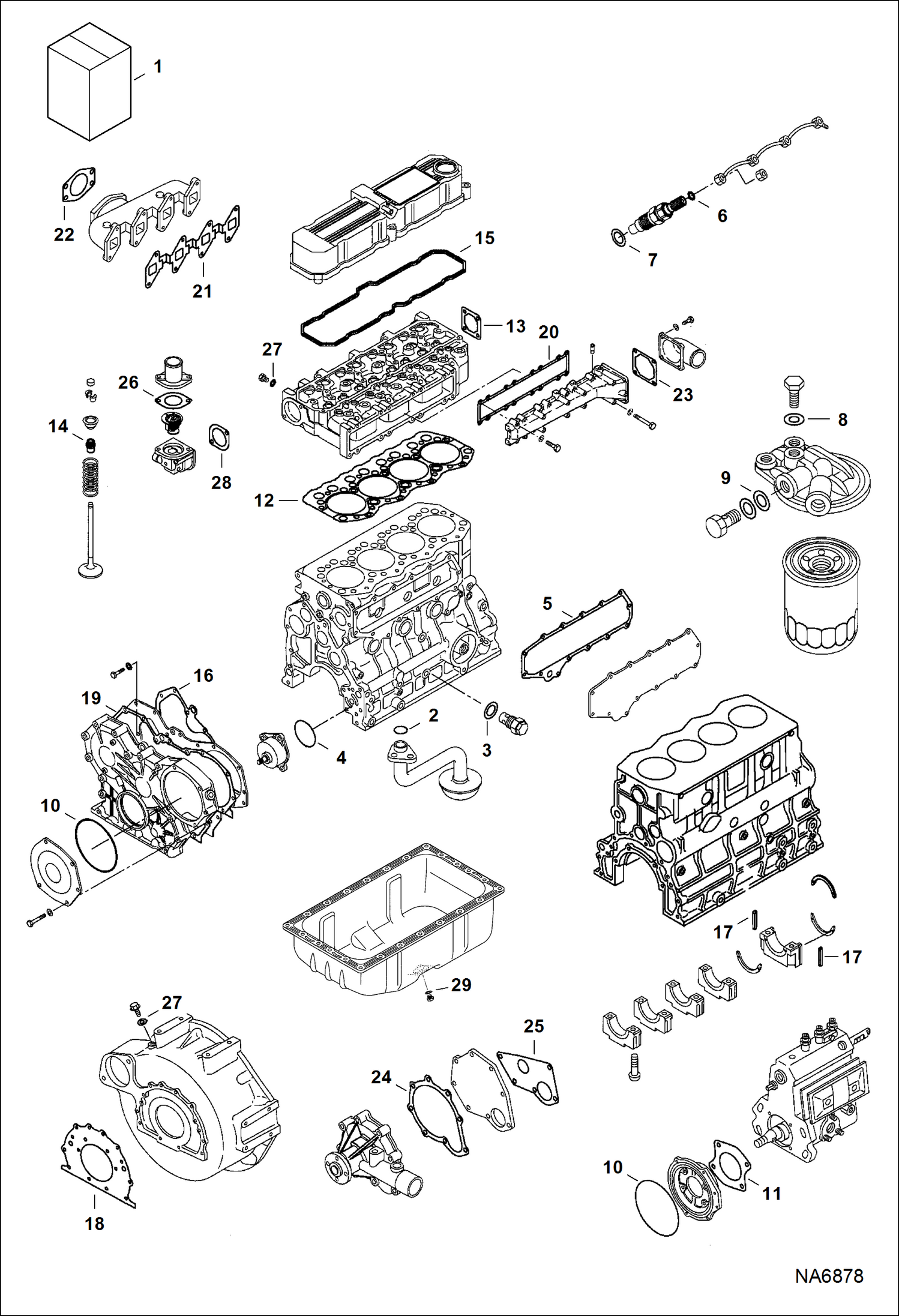

Запчасти Bobcat ASPHALT HEATER & GENERATOR ASPHALT HEATER & GENERATOR (Engine) (Gasket Kit) Loader

1

7026435

KIT, GASKET Ref. 2-28

2

7026525

O-RING See Illustration ASPHALT HEATER & GENERATOR/ NA6865

3

7026447

GASKET See Illustration ASPHALT HEATER & GENERATOR/ NA6865

4

7026381

O-RING See Illustration ASPHALT HEATER & GENERATOR/ NA6865

5

7026388

GASKET, COVER See Illustration ASPHALT HEATER & GENERATOR/ NA6865

6

7026537

GASKET See Illustration ASPHALT HEATER & GENERATOR/ NA6869

7

7026538

GASKET, NOZZLE INJ See Illustration ASPHALT HEATER & GENERATOR/ NA6869

8

7026120

WASHER, SEALING See Illustration ASPHALT HEATER & GENERATOR/ NA6869

9

7026121

WASHER, SEALING See Illustration ASPHALT HEATER & GENERATOR/ NA6869

10

7026122

O-RING See Illustration ASPHALT HEATER & GENERATOR/ NA6860 See Illustration ASPHALT HEATER & GENERATOR/ NA6869

11

7026299

GASKET See Illustration ASPHALT HEATER & GENERATOR/ NA6869

12

7026311

GASKET, HEAD CYL See Illustration ASPHALT HEATER & GENERATOR/ NA6854

13

7026312

GASKET, COVER See Illustration ASPHALT HEATER & GENERATOR/ NA6854

14

7026319

SEAL, STEM VALVE See Illustration ASPHALT HEATER & GENERATOR/ NA6855

15

7026325

GASKET, COVER VALVE See Illustration ASPHALT HEATER & GENERATOR/ NA6856

16

7026335

GASKET, GEARCASE See Illustration ASPHALT HEATER & GENERATOR/ NA6860

17

7026336

SEAL See Illustration ASPHALT HEATER & GENERATOR/ NA6857

18

7026337

GASKET See Illustration ASPHALT HEATER & GENERATOR/ NA6859

19

7026347

GASKET, GEARCASE See Illustration ASPHALT HEATER & GENERATOR/ NA6860

20

7026376

GASKET, INLET See Illustration ASPHALT HEATER & GENERATOR/ NA6864

21

7026378

GASKET, EXHAUST See Illustration ASPHALT HEATER & GENERATOR/ NA6864

22

7026379

GASKET, EXHAUST See Illustration ASPHALT HEATER & GENERATOR/ NA6864

23

7026446

GASKET, INLET See Illustration ASPHALT HEATER & GENERATOR/ NA6864

24

7026397

GASKET, PUMP WATER See Illustration ASPHALT HEATER & GENERATOR/ NA6866

25

7026398

GASKET, PUMP WATER See Illustration ASPHALT HEATER & GENERATOR/ NA6866

26

7026400

GASKET, THERMOSTAT See Illustration ASPHALT HEATER & GENERATOR/ NA6866

27

7026297

GASKET See Illustration ASPHALT HEATER & GENERATOR/ NA6859 See Illustration ASPHALT HEATER & GENERATOR/ NA6854

28

7026401

GASKET See Illustration ASPHALT HEATER & GENERATOR/ NA6866

29

7026527

GASKET not in kit
