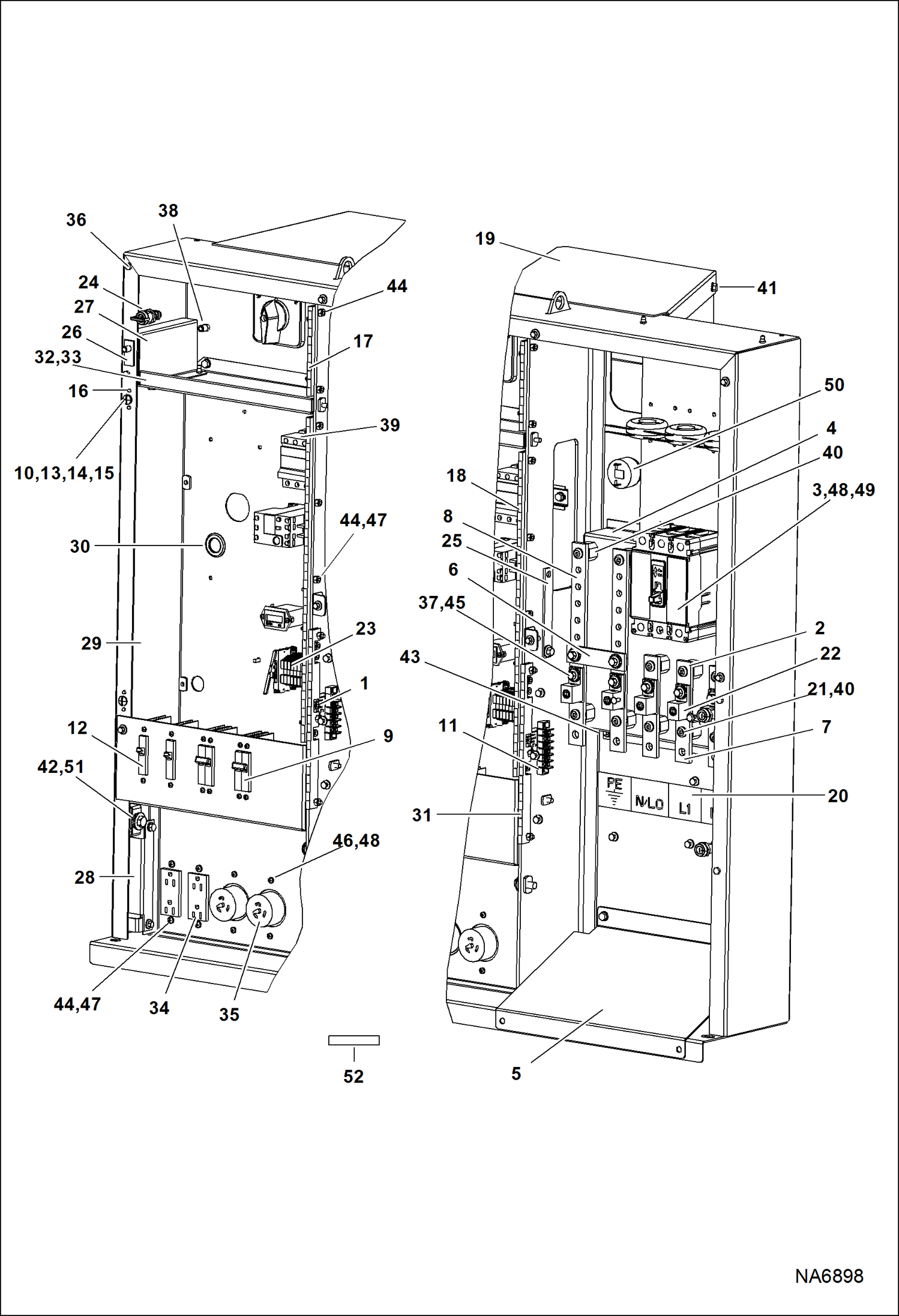

Запчасти Bobcat ASPHALT HEATER & GENERATOR ASPHALT HEATER & GENERATOR (Generator) (Control Panel Assembly 2) (B14F) Loader

1

7027153

DECAL, START

2

7027154

INSULATOR, STANDOFF

3

7027160

BREAKER, CIRCUIT

4

7027162

MOUNT, BREAKER

5

7027164

SUPPORT, CABLE

6

7027165

LINK

7

7027166

BUS BAR, POWER

8

7027167

BUS BAR, GROUND

9

7027168

BREAKER, CIRCUIT

10

7027169

RECEPTACLE, 1/4 TURN

11

7027173

BLOCK, TERMINAL

12

7027175

BREAKER, CIRCUIT

13

7027176

WASHER

14

7027177

RETAINER, HOLDER

15

7027182

STUD

16

7027183

RIVET

17

7027200

HINGE, DOOR

18

7027201

HINGE, DOOR

19

7027213

COVER, TOP

20

7027219

DECAL, CONNECT DIRECT

21

7027220

BOLT

22

7027223

LUG, SINGLE

23

7027226

TERMINAL

24

7027235

LATCH, DOOR

25

7027236

STRAP, 2-HOLE

26

7027240

SWITCH, INTERLOCK

27

7027249

COVER, WIRING

28

7027257

COVER, WIRING

29

7027259

ENCLOSURE, POWER PEDESTAL

30

7027273

GROMMET

31

7027284

HINGE, DOOR

32

7027288

BUSHING

33

7027289

BRACKET

34

7027354

RECEPTACLE, DUPLEX 125V, 20A

35

7027355

RECEPTACLE, TWIST-LOC 120/240V, 50A

36

7027383

STOP, COVER HINGED

37

4CM840

BOLT

38

7027394

INSERT, THREADED

39

7027407

HOLDER, FUSE

40

7027430

BOLT

41

7027431

SCREW, TAPPING

42

1C616

BOLT

43

59D4

NUT 5

44

59D4

NUT 5

45

25E17

WASHER 5

46

7027438

BOLT

47

7027440

BOLT

48

7027442

NUT

49

BOLT NSS - Order Ref. 3

50

7027372

ALARM, AUDIBLE

51

27E6

WASHER 5

52

7027408

FUSE, 1A
