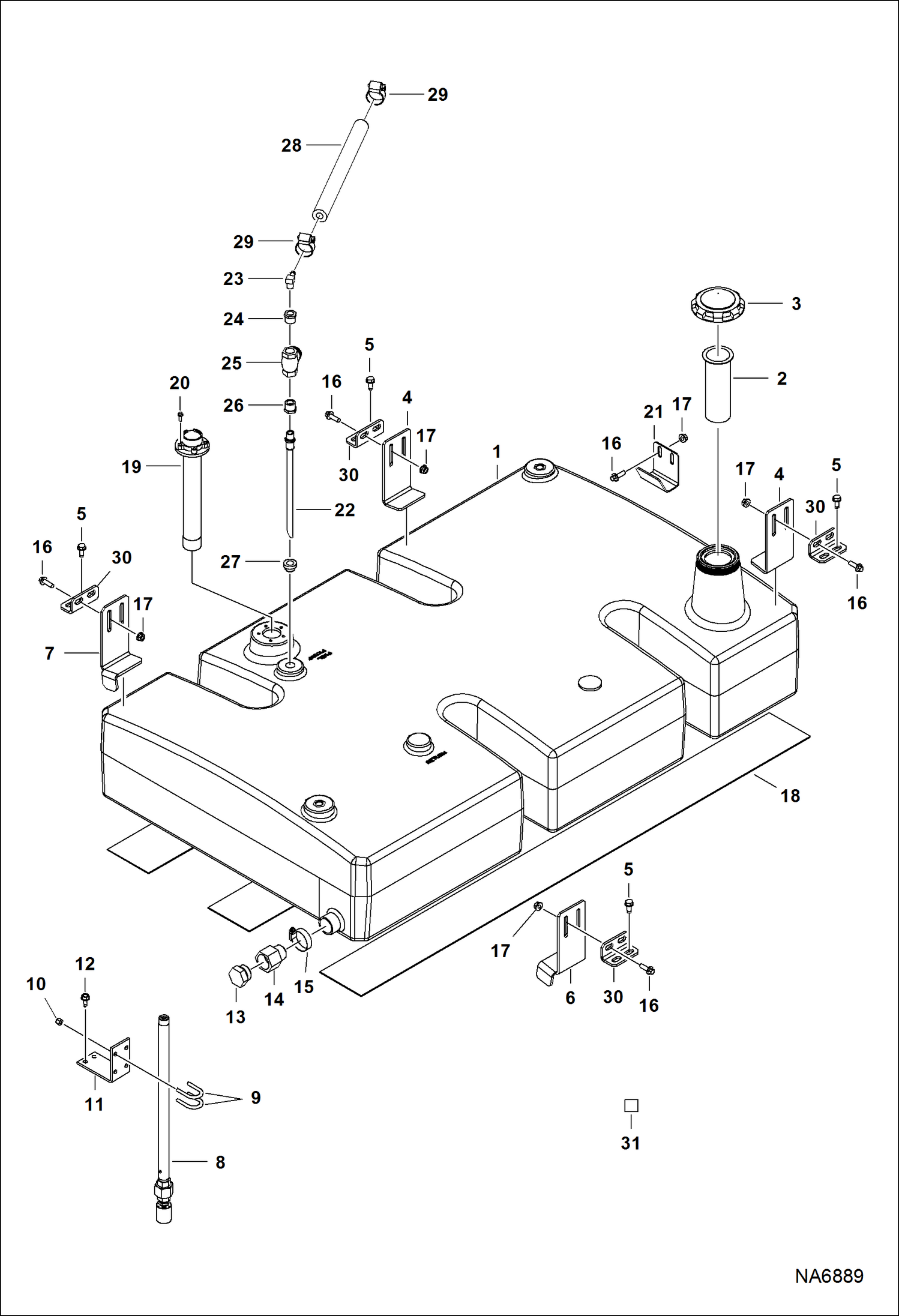

Запчасти Bobcat ASPHALT HEATER & GENERATOR ASPHALT HEATER & GENERATOR (Generator) (Fuel Tank Mounting) (B14F) Loader

1

7027321

TANK, FUEL

2

7027334

SCREEN, FILLER

3

7027324

CAP, FILTER

4

7027327

BRACKET, TANK front adjusting

5

7027343

SCREW, TAPPING

6

7027328

BRACKET, TANK LH rear adjusting

7

7027329

BRACKET, TANK RH rear adjusting

8

7027206

SENSOR, FUEL

9

7027218

U-BOLT

10

59D4

NUT 5

11

7027205

BRACKET, SENSOR

12

7027314

SCREW, TAPPING

13

16F8

PLUG

14

7027326

ADAPTER

15

42H06

CLAMP, HOSE

16

4CM840

BOLT

17

7027386

NUT, FLANGE

18

7027207

PAD, WEAR

19

7027204

SENDER, FUEL

20

7027377

BOLT, HEX SOCKET

21

7027461

BRACKET, TANK FUEL

22

7027298

TUBE, CONNECTING

23

7027359

FITTING, ELBOW 90 degree bend

24

7027443

BUSHING

25

7027179

VALVE, CHECK

26

7027444

BUSHING

27

7027325

BUSHING

28

7027353

HOSE, OVER FLOW 1016 mm (40'') long

29

42H20

CLAMP, HOSE

30

7027278

BRACKET, TANK

31

7027335

FILTER, FUEL W/SEPARATOR See Illustration ASPHALT HEATER & GENERATOR/ NA6931
