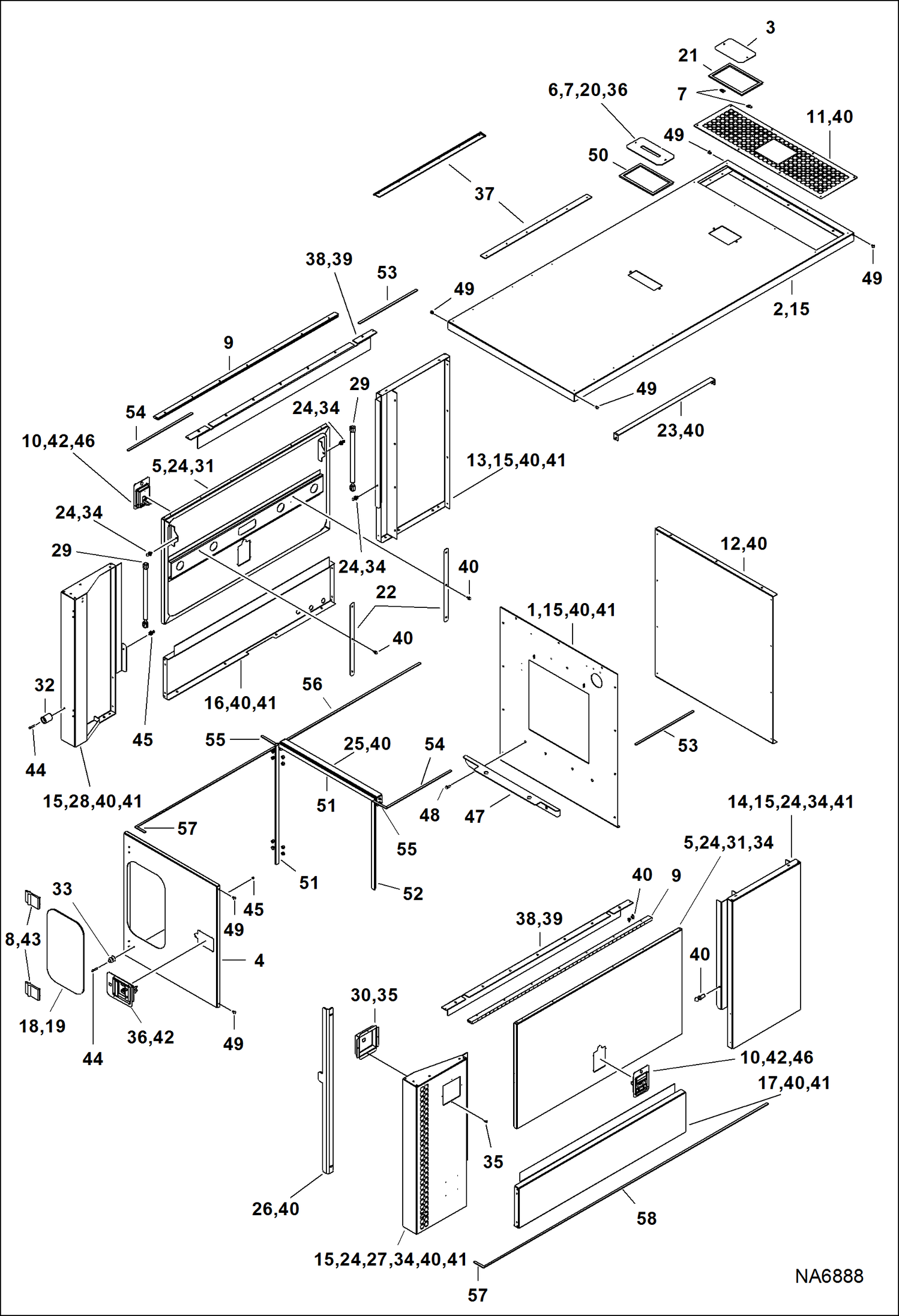

Запчасти Bobcat ASPHALT HEATER & GENERATOR ASPHALT HEATER & GENERATOR (Generator) (Enclosure Assembly) (B14F) Loader

1

7027297

BAFFLE radiator

2

7027311

PANEL, ROOF

3

7027155

COVER radiator

4

7027313

DOOR, REAR

5

7027310

DOOR, SIDE

6

7027340

STUD

7

7027341

CLIP, RECEPTACLE

8

7027406

HINGE, DOOR REAR

9

7027156

HINGE, DOOR side

10

7027373

LATCH, DOOR side

11

7027171

SCREEN, EXHAUST

12

7027303

PANEL, FRONT

13

7027304

PANEL, LH front

14

7027296

PANEL, RH front

15

7027394

INSERT, THREADED

16

7027306

PANEL, LH bottom

17

7027305

PANEL, RH bottom

18

7027293

WINDOW, DOOR

19

7027302

SEAL 1600,2 mm (5.25') long

20

7027245

COVER

21

7027221

SEAL (2) 127 mm (5'') x (2) 203,2 mm (8'')

22

7027417

RETAINER, HOLDER

23

7027232

RETAINER, HOLDER

24

7027352

STUD

25

7027231

SUPPORT rear door - top

26

7027274

SUPPORT rear door - side

27

7027308

PANEL, REAR right corner

28

7027307

PANEL, REAR left corner

29

7027368

SHOCK, SPRING

30

7027246

COVER

31

7027222

SEAL (2) 640,1 mm (25.2'') x (2) 1234,4 mm (48.6'')

32

7027432

RETAINER, FEMALE

33

7027433

RETAINER, MALE

34

7027386

NUT, FLANGE

35

7027248

RIVET 3/16'' x .53

36

7027285

LATCH, DOOR rear

37

7027301

PANEL, ROOF

38

7027378

RIVET .19 dia.

39

7027309

BRACKET, ANGLE

40

7027375

SCREW, TAPPING

41

7027343

SCREW, TAPPING

42

7027374

RIVET 3/16'' dia.

43

7027342

NUT

44

7027447

BOLT, HEX SOCKET

45

1DM6

NUT

46

7027299

SEAL, LATCH

47

7027331

SUPPORT radiator

48

7027429

BOLT

49

7027388

PLUG

50

7027221

SEAL (2) 127 mm (5'') x (2) 236,2 mm (9.3'')

51

7027222

SEAL 830,6 mm (32.7'') long

52

7027222

SEAL 739,1 (29.1'') long

53

7027221

SEAL 370,8 mm (14.6'') long

54

7027221

SEAL 518,2 mm (20.4'') long

55

7027221

SEAL 99,1 mm (3.9'') long

56

7027221

SEAL 2220 mm (87.4'') long

57

7027221

SEAL 66 mm (2.6'') long

58

7027221

SEAL 2215 mm (87.2'') long
