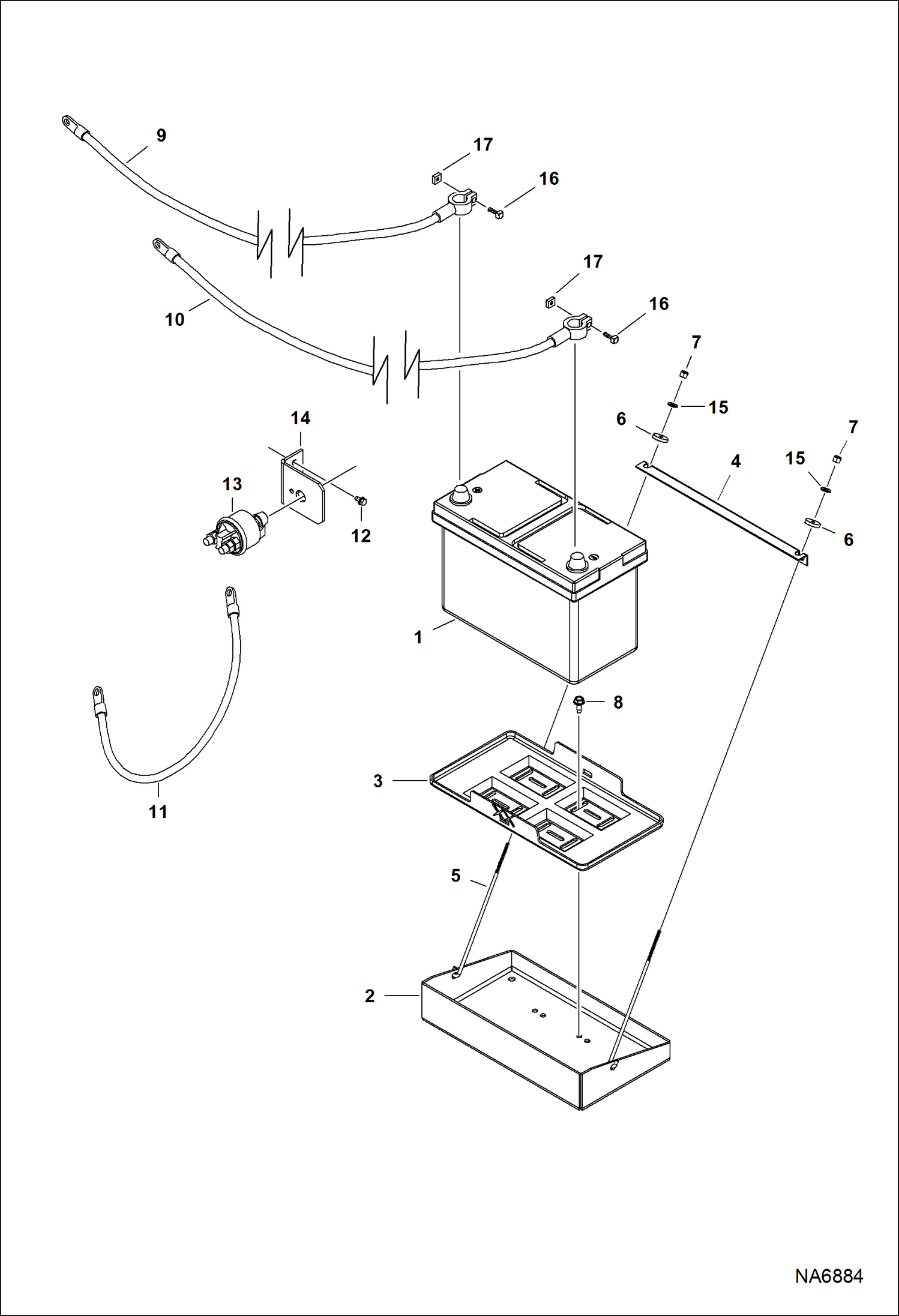

Запчасти Bobcat ASPHALT HEATER & GENERATOR ASPHALT HEATER & GENERATOR (Generator) (Battery Mounting) (B14F) Loader

1

6665032

BATTERY, DRY 700 AMP

2

7027189

PAN, BATTERY

3

7027384

LINER, BATTERY

4

7027380

BRACKET, BATTERY

5

7027382

BOLT, BATTERY

6

7027381

WASHER

7

59D4

NUT 5

8

7027314

SCREW, TAPPING

9

7027367

CABLE, POSITIVE W/Ref. 16 & 17

10

7027370

CABLE, NEGATIVE W/Ref. 16 & 17

11

7027260

CABLE, JUMPER

12

7027343

SCREW, TAPPING

13

7027389

SWITCH, DISCONNECT

14

7027211

BRACKET, SWITCH

15

25E14

WSHR

16

BOLT NSS

17

NUT NSS
