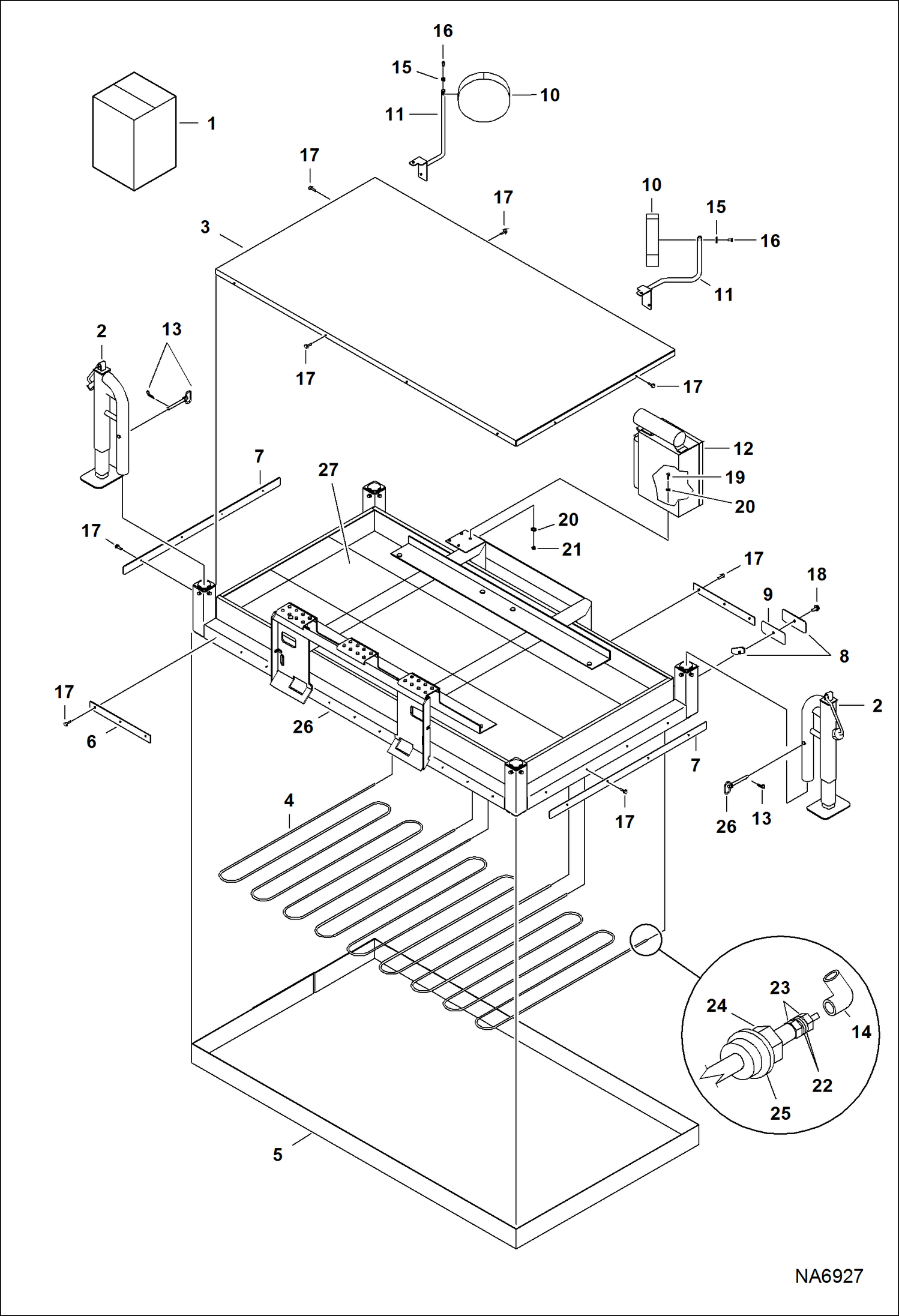

Запчасти Bobcat ASPHALT HEATER & GENERATOR ASPHALT HEATER & GENERATOR (Heater) (Main Frame) (AYYR) Loader

1

ASPHALT HEATER BASE - SALES #7218237 - Ref. 2-27

2

7026098

JACK

3

INSULATION NSS - lid - Order Ref. 26

4

7026100

ELEMENT, HEATER

5

7026107

SHIELD, SKIRT HEATER

6

7026101

PLATE, SHIELD SKIRT

7

7026102

PLATE, SHIELD SKIRT

8

7026103

PLATE, ACCESS W/Ref. 18

9

7026104

GASKET, ACCESS

10

7026105

MIRROR, REAR VIEW

11

7026106

BRACKET, MIRROR

12

7027116

CONTROL, BOX ASSY

13

7027067

PIN, HITCH Includes cotter pin

14

7026108

BOOT, RUBBER

15

4E5

WASHER

16

18C512

BOLT

17

84G2516

BOLT

18

45C520

BOLT, FLANGE

19

1C412

SCREW

20

25E13

WASHER 5

21

81D4

NUT

22

25E31

WASHER

23

14D10

NUT

24

62D8

NUT

25

25E41

WASHER

26

7026097

HOUSING, HEATER ASPHALT

27

7026099

INSULATION
