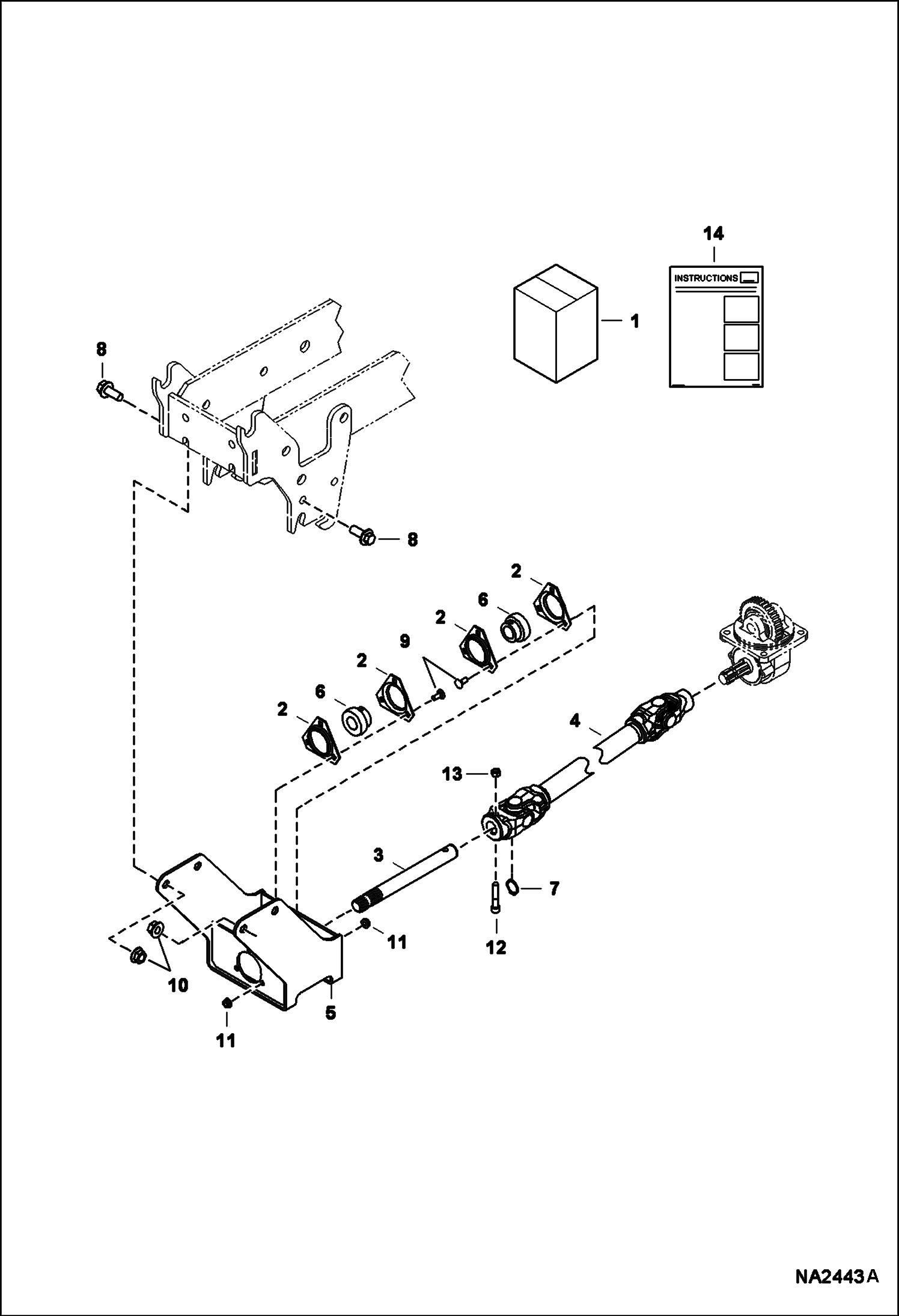

Запчасти Bobcat ANGLE BROOM ANGLE BROOM (PTO Kit) (54 AT34) (70 AT33) Компактные тракторы

1

KIT, PTO FRONT NLA - Ref. 2-14 - Order components - Was SALES #7181016 - D

2

6515096

FLANGE

3

7169114

SHAFT

4

7169115

SHAFT, DRIVE

5

7178961

MOUNT

6

7183279

BEARING

7

21J16

SNAP RING

8

31C1024

BOLT

9

37C512

BOLT

10

57D10

NUT

11

57D5

NUT

12

73G632

SCREW

13

93D6

NUT

14

6989403

INSTRUCTIONS
