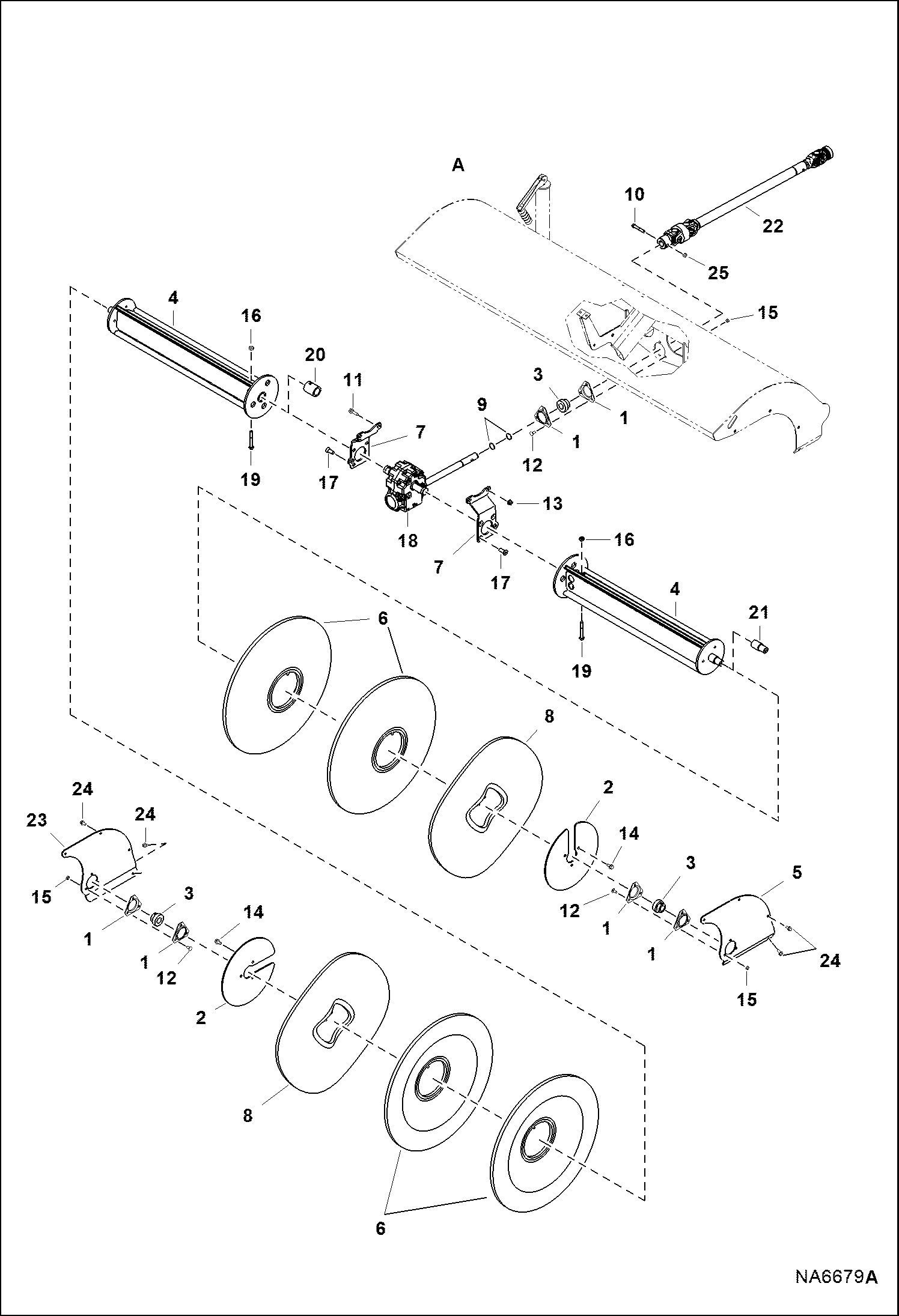

Запчасти Bobcat ANGLE BROOM ANGLE BROOM (Brushes & Housing) (54 AT34) (70 AT33) Компактные тракторы

1

6515096

FLANGE

2

7102381

DISC, RETAINING

3

7183279

BEARING

4

7192220

CORE, BRUSH

4

7202261

CORE, BRUSH

5

7193465

MOUNT, BEARING LH

6

7194008

BRUSH, POLY CONICAL 24''

7

7201349

MOUNT, GEARBOX

8

7203061

BRUSH, POLY CONVOLUTED 24''

8

6989024

BRISTLE, POLY HD 24'' CONVOLUTED

9

22J16

SNAP RING

10

7221458

BOLT

11

31C620

BOLT

12

37C512

BOLT

13

83D6

NUT 5

14

84G3712

BOLT 5

15

85D5

NUT 5

16

85D7

NUT

17

9G820

BOLT

18

7197303

GEARBOX See Illustration ANGLE BROOM/ NA6688A

19

17C748

BOLT

20

7193460

BUSHING, CORE

21

7193459

SHAFT, CORE END

22

7194009

SHAFT, DRIVE See Illustration ANGLE BROOM/ NA6680A

23

7193457

MOUNT, BEARING RH

24

31C510

BOLT

25

85D6

NUT, 5
