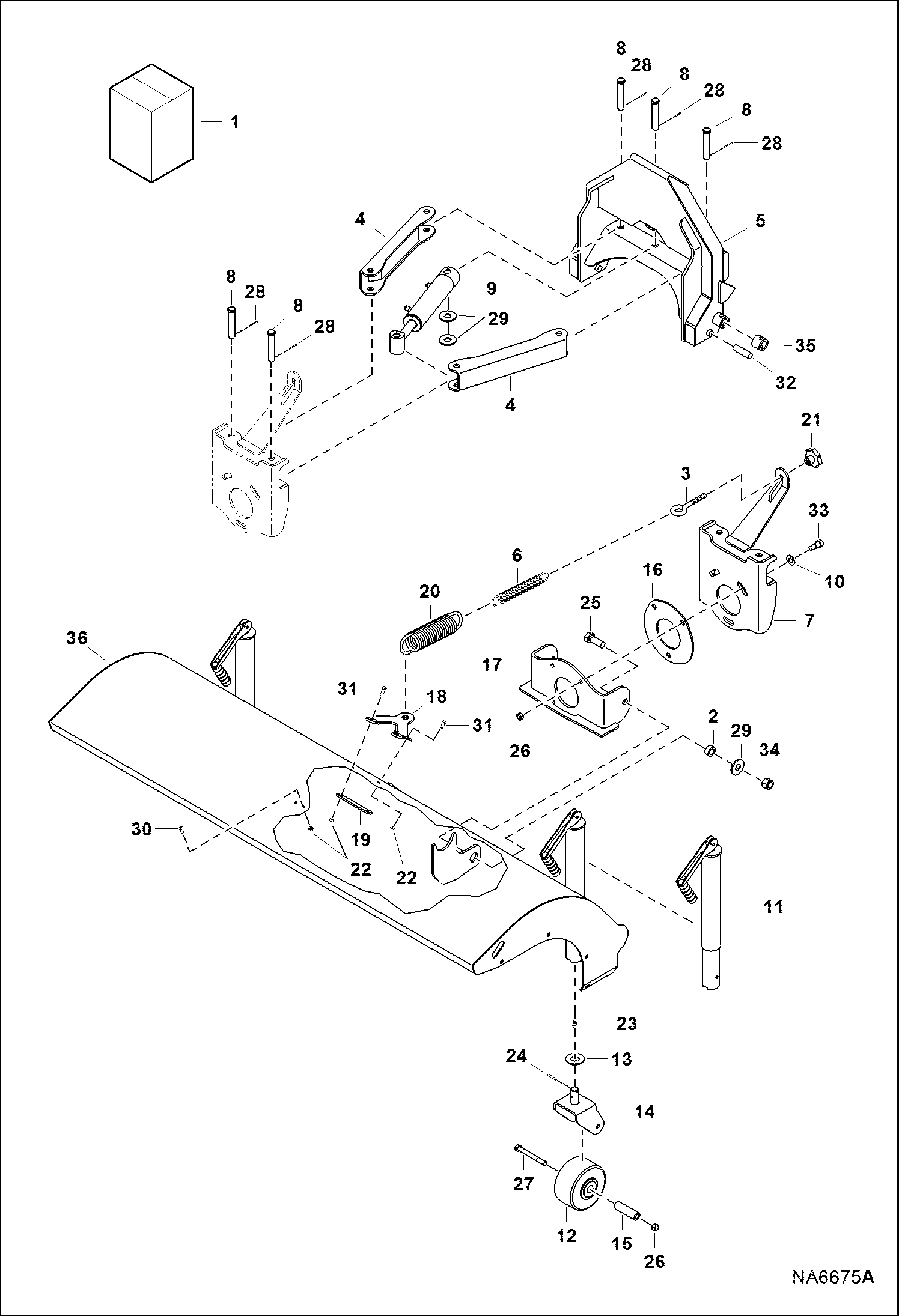

Запчасти Bobcat ANGLE BROOM ANGLE BROOM (Main Frame) (54 AT34) (70 AT33) Компактные тракторы

1

54'' FRONT MOUNT ANGLE BROOM See Illustration ANGLE BROOM/ NA6679A - Ref. 2-25 - SALES #7201491 - Also Includes Ref. 2-37 on this page

1

70'' FRONT MOUNT ANGLE BROOM See Illustration ANGLE BROOM/ NA6679A - Ref. 2-25 - SALES #7201490 - Also Includes Ref. 2-37 on this page

2

6905186

BUSHING

3

6907078

EYE BOLT

4

7192214

ARM, BROOM

5

7192217

MOUNT, FRONT W/Ref. 32 & 35

6

SPRING, EXTENSION NLA - 34,9 mm (9.25'') long - 0.41 kg/mm (23.5 lbs/in) spring rate - Order Ref. 37 - Was 7210059 - A

7

7192223

PIVOT, BROOM

8

7192230

PIN, PIVOT BROOM

9

7192701

CYLINDER, BROOM See Illustration ANGLE BROOM/ NA6681A

10

29E10

WASHER

11

7196879

JACK

12

7194014

WHEEL, CASTER

13

7196880

WASHER, THRUST

14

7196883

CASTER, WHEEL

15

7197301

BUSHING, WHEEL

16

7201351

BEARING, THRUST

17

7201353

HINGE, MOUNT SWIVEL

18

7201999

MOUNT, SPRING

19

7202255

PLATE, RETAINER

20

7203059

SPRING, EXTENSION 247,8 mm (9.75'') long - 1.38 kg/mm (79.3 lbs/in) spring rate

21

7203060

KNOB

22

85D5

NUT 5

23

11H25

FITTING10

24

14J2522

PIN

25

17C1232

BOLT

26

85D8

NUT, 5

27

17C872

BOLT

28

1F416

PIN

29

25E28

WASHER

30

25G512

SCREW

31

25G516

SCREW

32

7170879

ROD, MOUNT

33

38C1010

BOLT, SHOULDER

34

59D12

NUT

35

7183278

BUSHING

36

7192222

FRAME W/Ref. 11

36

7202263

FRAME W/Ref. 11

37

7234526

SPRING, EXTENSION 228,6 mm (9'') long - 8.88 kg/mm (102.3 lbs/in) spring rate
