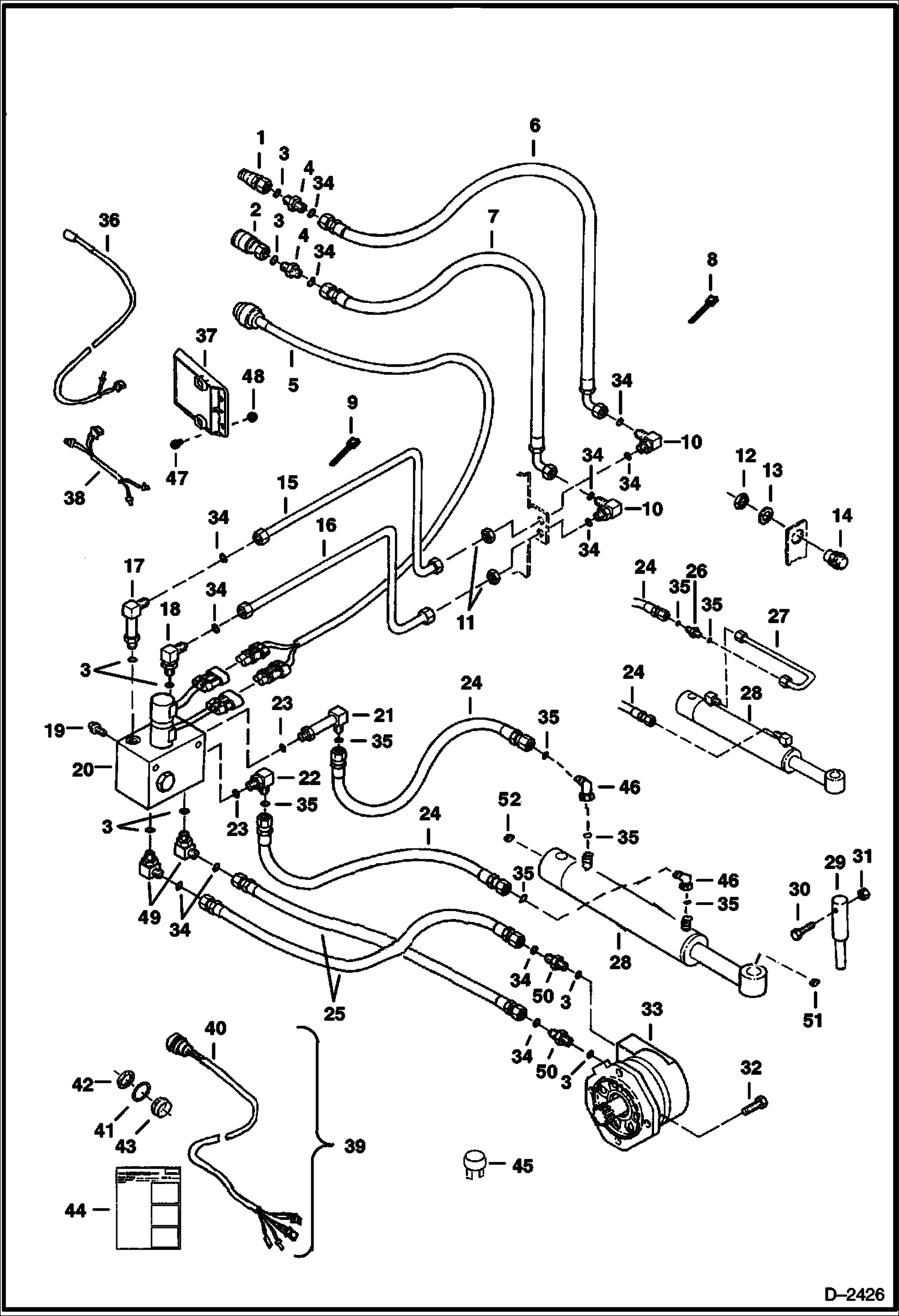

Запчасти Bobcat ANGLE BROOM ANGLE BROOM (Hydraulic Circuitry) (68 2310, A5CD & 2313) (84 0550 & 2314) Loader

1

6674688

COUPLER, FF MALE straight - Was 6667808 - A

2

6672960

COUPLER, FF FEMALE straight

3

99K12

O RING

4

15KB1212

FITTING, HYD CONNECTOR Was 15KN8 - A

5

6716406

HARNESS 14-pin

5

6665001

CONNECTOR, ELECTRICAL

5

6664041

SOCKET female

6

7147795

HOSE Was 6715935 - A

7

7147796

HOSE Was 6715936 - A

8

6624289

STRAP, TIE

9

6624289

STRAP, TIE Was 6591255 - B

10

88F8

FITTING bulkhead - Was 88FN8 - A

11

86F8

NUT 5

12

6664036

NUT

13

6664037

WASHER

14

6675128

CAP 7 pin - Was 6673680 - B

15

6715931

TUBELINE

16

6715932

TUBELINE

17

6716443

ELBOW

18

17KB1212

FITTING, HYD ELBOW Was 17KV8 - A

19

31C612

BOLT Was 35C612 - B

20

VALVE See Illustration ANGLE BROOM/ B15164

21

6812815

FITTING Was 6715188 - A

22

17KB0606

FITTING Was 17KV5 - A

23

79K6

O RING 10 Was 99K000006B - B

24

6715933

HOSE

25

6905447

HOSE For 68'' broom

25

7197619

HOSE, HYD For 68'' broom

25

6715934

HOSE For 84'' broom

25

7195414

HOSE, HYD For 84'' broom

26

87F5

FITTING Was 87FN5 - A

27

6716475

TUBELINE

28

CYLINDER See Illustration ANGLE BROOM/ PE1330 See Illustration ANGLE BROOM/ B5435

29

7102382

PIN Was 6714154 - A

30

17C640

BOLT 5

31

59D6

NUT

32

93G824

BOLT 38,1 mm (1.50'') long - Use on motors used with carrier

32

31C836

BOLT 57,2 mm (2.25'') long - Use on direct drive motor

32

93G836

BOLT

33

MOTOR See Illustration ANGLE BROOM/ B17123

34

97K12

O'RING flared end

35

97K6

O RING for flared end

36

6719853

HARNESS 7-pin

37

6678677

CONTROLLER, ACD BASE ACD - Was 6674944 - A

37

6905670

COVER ACD

38

6725231

HARNESS ACD to valve - 68'' broom

38

6725230

HARNESS ACD to valve - 84'' broom

39

6725381

KIT 14-pin - for 7-pin broom used with 14-pin loader-W/Ref. 40-44

40

6725352

HARNESS 14-pin conversion

41

6664037

WASHER

42

6664036

NUT

43

6673680

RECEPTACLE, TWIST-LOC

44

6901005

INSTRUCTIONS

45

6674099

BREAKER, 25A

45

6725614

BREAKER 25 amp - G series

46

11K5

FITTING Was 11KN5 - A

47

25G612

SCREW

48

85D6

NUT, 5 Was 87D000006B - A

49

17KB1012

FITTING, HYD ELBOW

50

15KB1212

FITTING, HYD CONNECTOR

50

15KB1010

FITTING, HYD CONNECTOR

51

10H25

FITTING, GREASE 5

52

12H15

FITTING, GREASE 5
