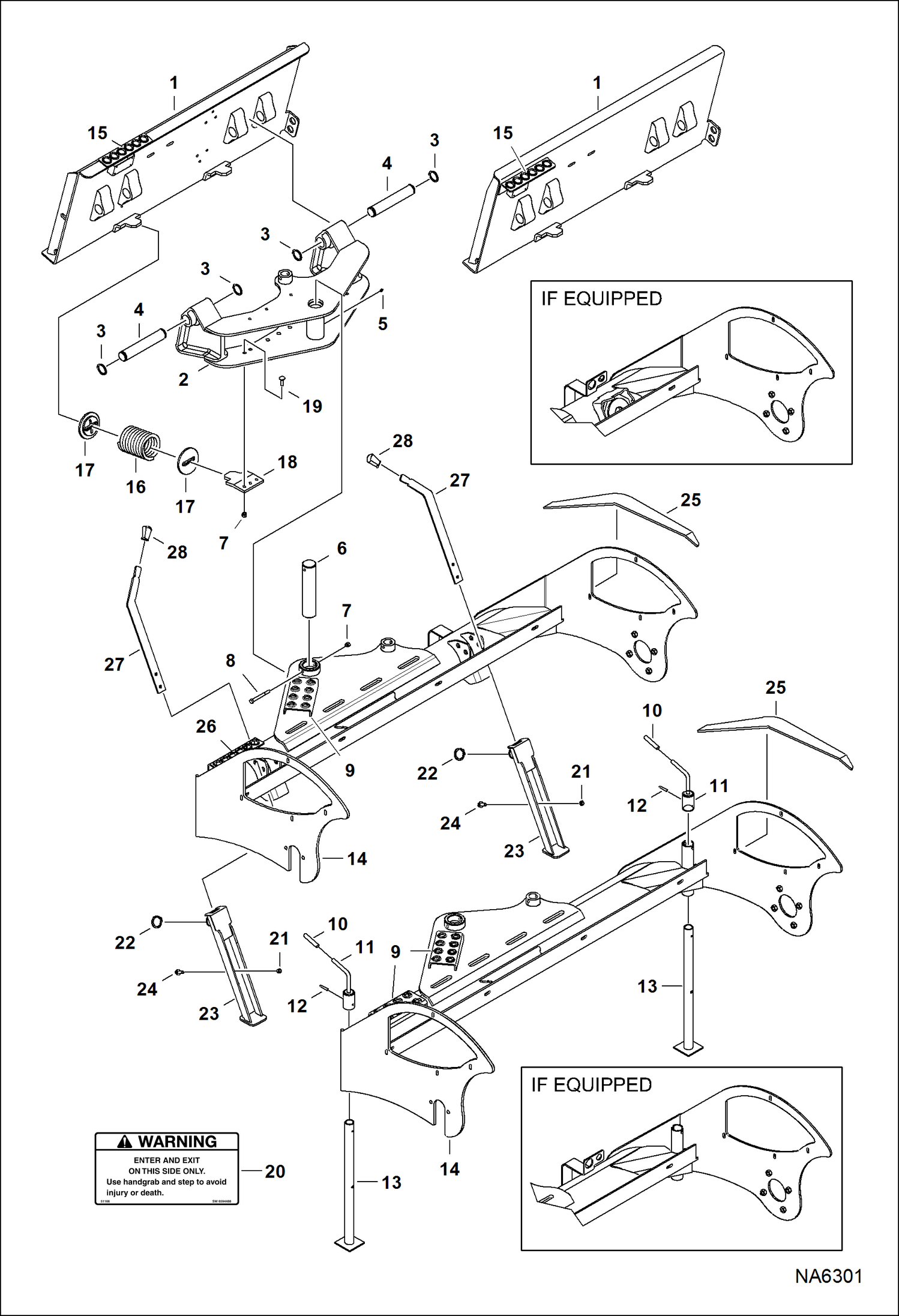

Запчасти Bobcat ANGLE BROOM ANGLE BROOM (Main Frame) (68 2310, A5CD & 2313) (84 0550 & 2314) Loader

1

FRAME NLA - mounting - top edge bends 90 degree towards loader - Order 6714202 - Was 6714202 - B,D

1

6714202

FRAME mounting - top edge bends 90 degree away from loader

2

6714203

PIVOT

3

6538285

LOCK RING

4

6714161

PIN

5

10H35

FITTING, GREASE 10

6

6714163

PIN

7

59D6

NUT

8

17C656

BOLT

9

6905990

STEP Was 6701943 - B

10

6657337

HANDLE

11

6714197

HANDLE, CRANKING

12

14J2526

PIN

13

6714205

STAND, ANGLE BROOM round frame

14

6905351

MAIN FRAME 68'' broom - Use W/ 14-pin harness

14

7130502

MAIN FRAME 68'' broom - Use W/ACD & 7-pin harness

14

MAIN FRAME NLA - 68'' broom - Use W/ACD & 7-pin harness & round frame stand - Order 7197529 main frame & Ref. 27-32 - Was 7197529 - D

14

7197529

MAIN FRAME 68'' broom - Use W/ACD & 7-pin harness & square frame stand

14

6714206

MAIN FRAME 84'' broom - Use W/ 14-pin harness

14

7130504

MAIN FRAME 84'' broom - Use W/ACD & 7-pin harness

14

MAIN FRAME NLA - 84'' broom - Use W/ACD & 7-pin harness & round frame stand - Order 7197530 main frame & Ref. 27-32 - Was 7197530 - D

14

7197530

MAIN FRAME 84'' broom - Use W/ACD & 7-pin harness & square frame stand

15

6716014

STEP Was 6577917 - B

16

6716549

SPRING, COIL

17

6716508

DISC

18

6716509

BRACKET

19

37C620

BOLT

20

6594488

DECAL, WARNING enter/exit this side

21

85D6

NUT, 5

22

22J24

RING SNAP

23

7203125

STAND, ANGLE BROOM square frame

24

31C616

SCREW

25

6905994

BRACE Use to strengthen frame if needed - see serviceletter date 14 July 2000

26

6577917

STEP

27

7203165

HANDLE, STAND

28

6564452

GRIP
