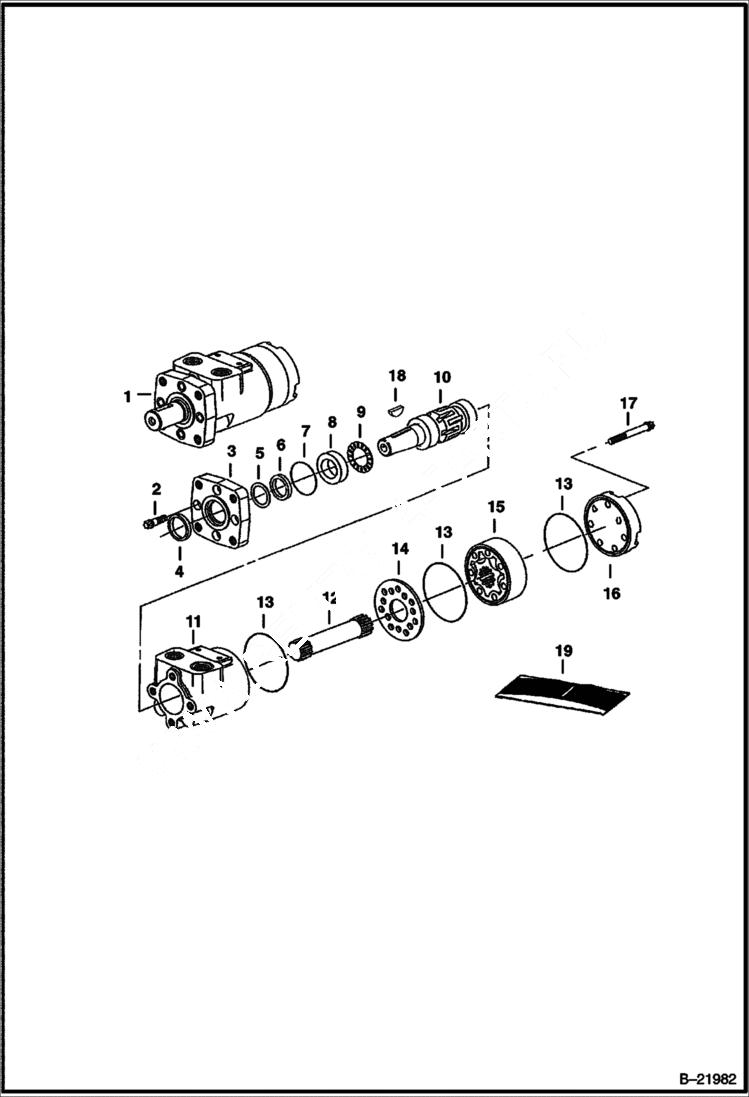

Запчасти Bobcat ANGLE BROOM ANGLE BROOM (Hydraulic Motor) (48 7000) Loader

1

MOTOR See Illustration ANGLE BROOM/ NA2782 NLA - Ref. 2-18 - Order 7184732 motor - Was 6907404 - A

2

6665325

SCREW

3

6653266

FLANGE mounting

4

6634895

SEAL

5

6651241

WASHER backup

6

6651240

SEAL

7

25K30124

O RING 10

8

7019134

CUP, BEARING Was 6513279 - A

9

6513280

BEARING

10

6634900

SHAFT

11

6674348

HOUSING

12

6679750

SHAFT

13

6674350

O-RING

14

SPACER PLATE NLA - Was 6674351 - A

15

6679751

GEROLER

16

6674353

END CAP

17

6679752

BOLT

18

6634899

KEY woodruff

19

6674586

SEAL KIT
