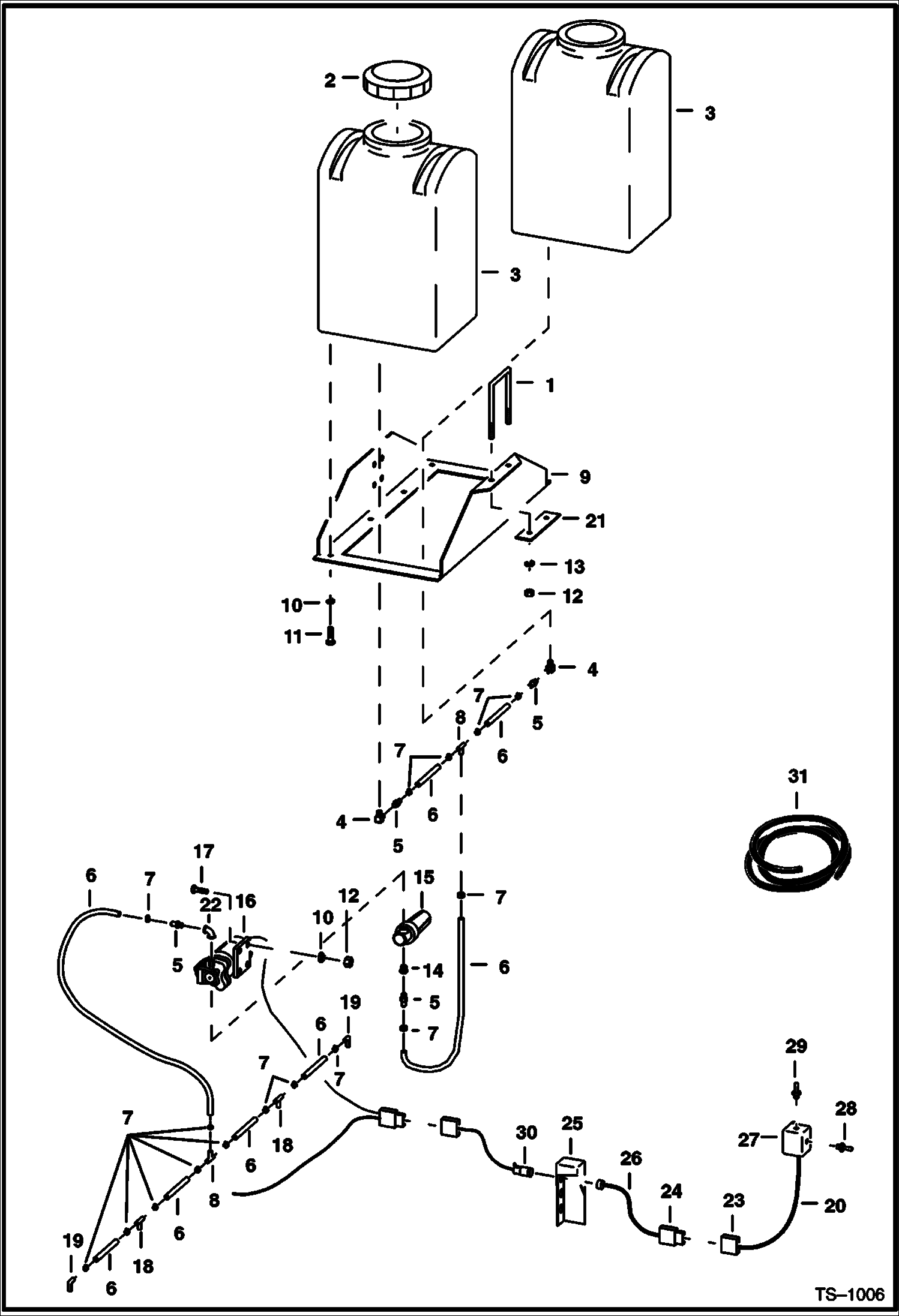

Запчасти Bobcat ANGLE BROOM INDUSTRIAL BROOM (Water Attachment) (0687) Loader

1

6655679

CLAMP

2

CAP NLA - Was 6655680 - A

3

TANK NLA - Was 6655681 - A

4

29F3

ELBOW

5

6655682

ADAPTER

6

HOSE NLA - 3048 mm (120'') long - Order Ref. 31

7

42HS04

CLAMP, HOSE Was 6515575 - A

8

6655685

FITTING, TEE

9

6655684

TANK MOUNT

10

23E4

WASHER

11

17C408

BOLT

12

60D8

NUT

13

23E8

WASHER

14

6648608

REDUCER

15

6655686

FILTER

15

O-RING

15

SCREEN

16

6666325

PUMP Was 6655733 - A

17

17C420

BOLT

18

6655687

FITTING, TEE

19

6655688

FITTING, ELBOW

19

6655689

SCREEN

19

7104250

NOZZLE, SPRAY Was 6655690 - A

19

6655691

CAP, NOZZLE NYLON

20

6656163

HARNESS

21

6658129

BRACKET Was 6658126 - A

22

6655693

ELBOW

23

6655694

PLUG WIRE male

24

6655695

PLUG WIRE female

25

6660063

MOUNT Was 6648628 - A

26

KIT WIRING NLA - See Sales Handbook - Was 6649029 - A

27

6655696

BOX 1 hole

28

SWITCH NLA - on/off water - Order 6655699 switch and 6681609 boot - Was 6655698 - A

29

6655699

SWITCH angle broom

30

6656162

HARNESS

31

6655683

HOSE bulk - sold per foot
