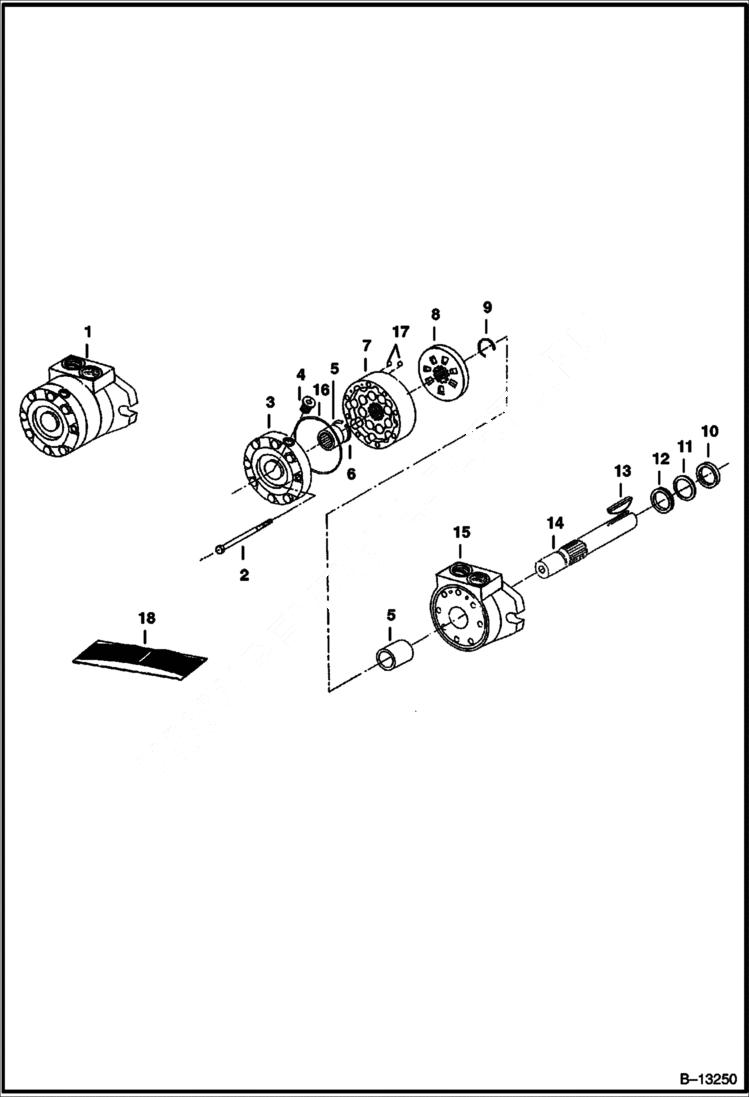

Запчасти Bobcat ANGLE BROOM INDUSTRIAL BROOM (Motor) Loader

1

MOTOR See BTI294 - NLA - Model 110-6-ASO - Ref. 2-17 - Was 6657336 - A

2

6661394

BOLT Was 6655743 - A

3

6655748

COVER W/Ref. 5

4

6655742

VENT PLUG

5

BEARING NSS - W/Ref. 3 & 15

6

6655740

SNAP RING

7

6655739

GEROLER

8

6655737

VALVE PLATE

9

6655746

SNAP RING

10

6655734

SEAL

11

6655735

BACKUP RING

12

QUAD RING NLA - Was 6655736 - A

13

6659532

WOODRUFF KEY Was 6655744 - A

14

6655745

SHAFT

15

6655747

HOUSING W/Ref. 5

16

6655741

SEAL

17

BALLS NLA - Was 6655738 - A

18

6655749

SEAL KIT Ref. 10, 11, 12 & 16
