Запчасти Bobcat ANGLE BROOM ANGLE BROOM (2400) Loader

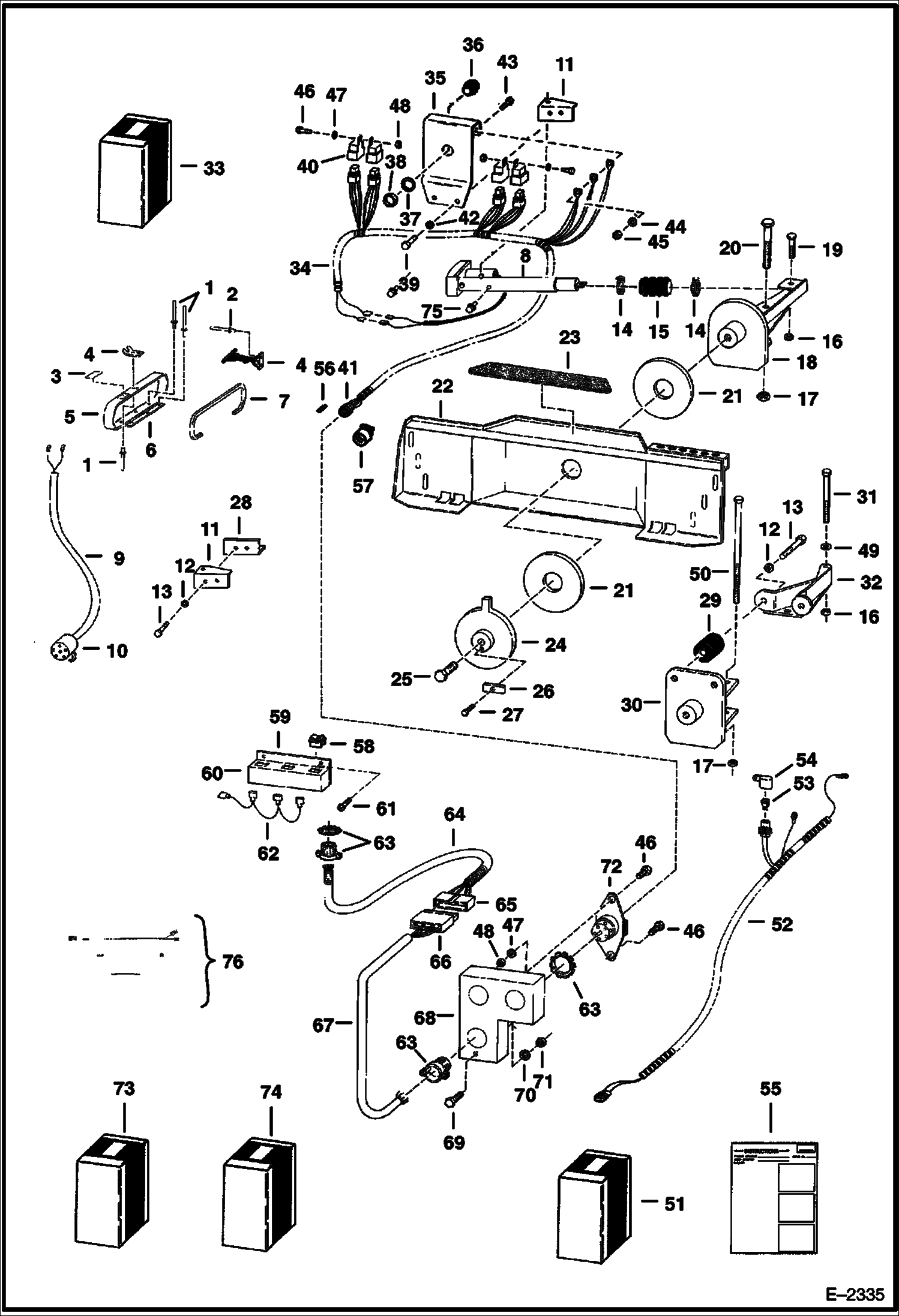

Схема запчастей Bobcat ANGLE BROOM - ANGLE BROOM (2400) Loader

Артикул

Название

Примечание

Количество

1

6657352

RIVET

2

6657353

RIVET

3

6657354

DECAL

4

6657355

LATCH

5

6657356

COVER

6

6657357

HINGE

7

6657358

MOLDING

8

ACTUATOR NLA - Saginow - Order 6664228 - Was 6657359 - A

8

KIT NLA - motor - Saginow - Order 6664228 - Was 6660299 - A

8

KIT NLA - tube - Saginow - Order 6664228 - Was 6660300 - A

8

6664228

ACTUATOR Burr

8

6664229

MOTOR KIT motor - Burr

8

6664230

TUBE KIT tube - Burr - complete actuator less motor and relay

9

6658141

HARNESS For 6 post switch

9

6657360

HARNESS For 4 post switch

9

6659845

WIRE W/Ref. 6658141

10

6648630

CONNECTOR 6 way

11

6657361

MOUNT

12

23E8

WASHER

13

17C816

BOLT

14

42H32

HS CLAMP5

15

6657362

BOOT

16

81D8

NUT

17

82D16

NUT

18

PLATE NLA - Order Ref. 12, 13, 16, 17, 29, 30 31, 32, 49 & 50 - Was 6657363 - A

19

17C840

BOLT

20

18C1696

BOLT

21

DISC NLA - Was 6657364 - A

22

6657365

MOUNT Bob-Tach

23

6569233

SAFETY TREAD trim to fit - Was 6657366 - A

24

6657367

PLATE

25

18C1632

BOLT

26

6657368

PLATE

27

17C616

BOLT 5

28

6659334

BRACKET

29

6648646

MOUNT

30

6659842

BRACKET

31

17C848

BOLT

32

6659843

MOUNT

33

6664856

KIT wiring - W/Ref. 34 - 40 - For Multi Switch Handles

34

6706806

HARNESS

35

6664857

MOUNT

36

6664038

DUST CAP

37

6664037

WASHER

38

6664036

NUT

39

17C820

BOLT

40

6651975

SWITCH mag

41

6665001

CONNECTOR, ELECTRICAL W/Ref. 57 - Was 6664034 - A

42

4E8

WASHER

43

17C612

BOLT 5

44

4E6

WASHER

45

63D8

NUT

46

17C412

BOLT 5

47

4E4

WASHER

48

61D4

NUT 5 Was 63D000004B - D

49

25E22

WASHER

50

18C16112

BOLT

51

6709152

KIT auxiliary power - W/Ref. 52-55 Provides an isolated power supply & individual fuse for electric motor control

52

6707346

HARNESS auxiliary power - W/Ref. 53 & 54

53

6702444

FUSE 25A 5

54

6657306

CAP, FUSE

55

6722954

INSTRUCTIONS For Ref. 51 kit

56

6664041

SOCKET female

57

6669286

CLAMP with saddles

58

SWITCH NLA - Was 6649323 - A

59

6656160

PLATE

60

6660640

SWITCH BOX

61

59G806

BOLT

62

WIRE NLA - Was 6660639 - A

63

CONNECTOR NLA - Was 6661583 - A

64

HARNESS NLA - W/Ref. 65 - Was 6656156 - A

65

6661189

CONNECTOR

66

6661588

CONNECTOR

67

HARNESS NLA - W/Ref. 66 - Was 6656157 - A

68

MOUNT NLA - Was 6669716 - A

69

17C516

BOLT

70

4E5

WASHER

71

61D5

NUT

72

6648629

SOCKET

73

KIT NLA - control box - W/Ref. 58 - 65 - Was 6657064 - A

74

KIT NLA - front harness - W/Ref. 63 & 66 - 72 - Was 6657062 - A

75

6671009

GREASE ZERK

76

6714216

HARNESS ASSY See Serviceletter

Выбрано товаров: 83
