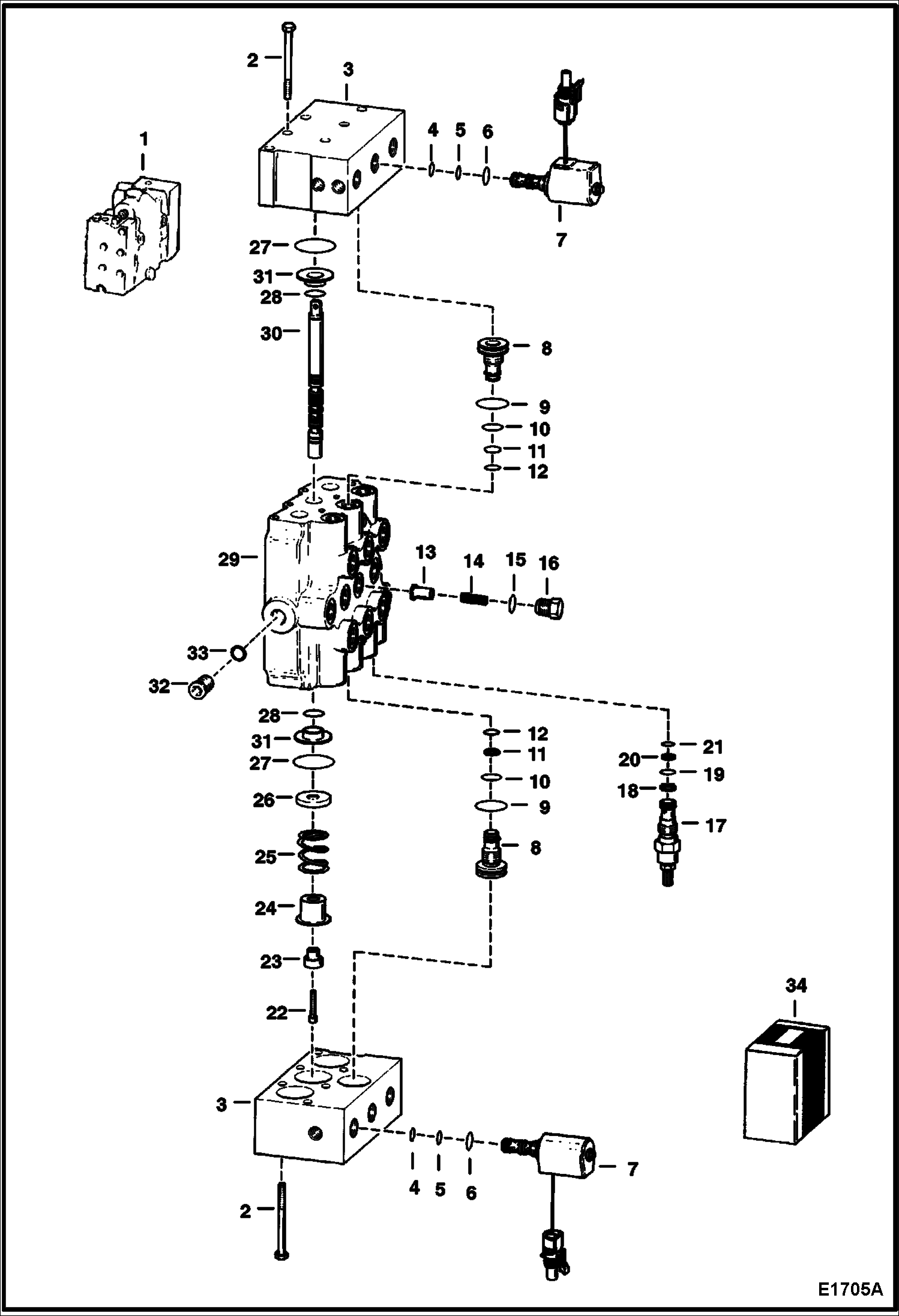

Запчасти Bobcat ANGLE BROOM ANGLE BROOM (Hydraulic Valve) (1600 & 2000) Loader

1

6587411

VALVE Ref. 2 - 30 - Was 6593360 - A

2

17C440

BOLT

3

6593361

BLOCK

4

O-RING NSS

5

O-RING NSS

6

O-RING NSS

7

6631979

SOLENOID Ref. 4-6

8

6593409

ADAPTER W/Ref. 9-12

9

O-RING NSS

10

O-RING NSS

11

WASHER NSS - back-up

12

O-RING NSS

13

6592115

SEAT

14

6592117

SPRING, LOAD CHECK

15

79K8

O RING 10

16

6592116

NUT load check

17

VALVE NLA - main - press. preset at factory - Was 6676199 - A

17

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

18

WASHER NSS - back-up

19

O-RING NSS

20

WASHER NSS - back-up

21

O-RING NSS

22

7102652

SCREW Was 74G000416B - B

23

6593358

ADAPTER

24

6593365

COLLAR

25

6593366

SPRING

26

6593364

WASHER

27

1K127

O-RING 10 Was 93K127 - A

27

6646372

SEAL quad ring seal

28

6659554

SEAL lip - Was 6646372 - A

29

BODY NSS

30

6529787

SPOOL Was NSS - D

31

6593359

BUSHING O-ring back-up (Not used in all Bobcat Valves)

32

47K7

PLUG

33

79K10

O RING 10

34

6589866

SEAL KIT See BTI374 Complete Valve - Was 6586462 - A

34

6589864

SEAL KIT See BTI374 - spool - Ref. 4 - 6, 8 - 12, 27 & 28 - Was 6586463 - A

34

6816250

KIT, SEAL main relief - Ref. 18 - 21 - Was 6803605 - A
