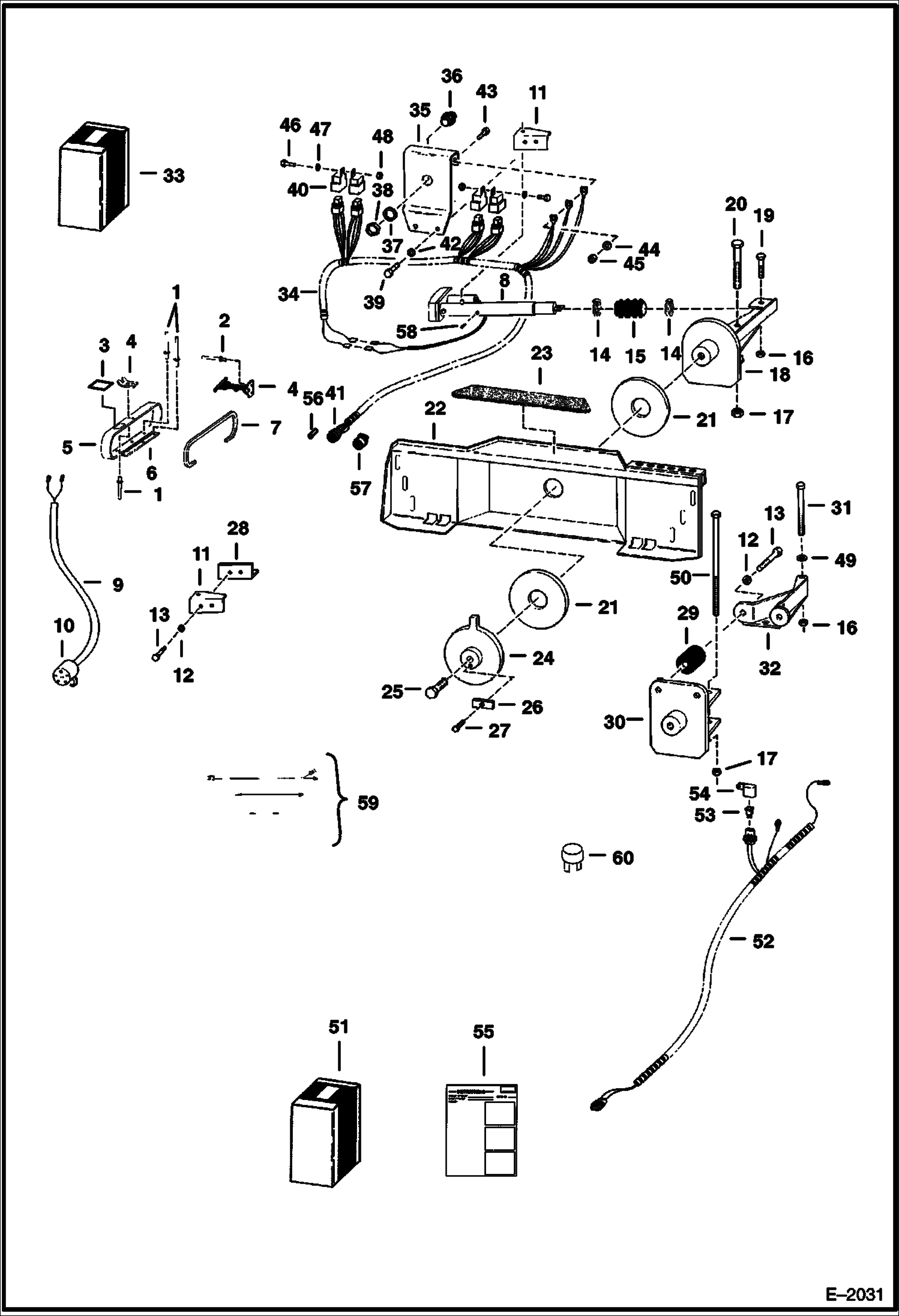

Запчасти Bobcat ANGLE BROOM ANGLE BROOM (68 690100101 & Above) Loader
№
Артикул
Название
Примечание
Количество
1
6657352
RIVET
2
6657353
RIVET
3
6657354
DECAL
4
6657355
LATCH
5
6657356
COVER
6
6657357
HINGE
7
6657358
MOLDING
8
ACTUATOR NLA - Saginaw - Order 6664228 - Was 6657359 - A
8
6664228
ACTUATOR Burr
8
KIT NLA - motor - Saginaw - Order 6664228 - Was 6660299 - A
8
6664229
MOTOR KIT motor - Burr
8
KIT NLA - tube - Saginaw - Order 6664228 - Was 6660300 - A
8
6664230
TUBE KIT tube - Burr - does not include motor or relay box
9
6657360
HARNESS For 4 post switch
9
6658141
HARNESS For 6 post switch
9
6659845
WIRE W/Ref. 6658141
10
6648630
CONNECTOR 6 way
11
6657361
MOUNT
12
23E8
WASHER
13
17C816
BOLT
15
6657362
BOOT
16
81D8
NUT
17
82D16
NUT
18
PLATE NLA - Order Ref. 12, 13, 16, 17, 29, 30, 31, 32, 49, & 50-Was 6657363 - A
19
17C840
BOLT
20
18C1696
BOLT
21
NLA - Was 6657364 - A
22
6657365
MOUNT Bob-Tach
23
6569233
SAFETY TREAD trim to fit - Was 6657366 - A
24
6657367
PLATE
25
18C1632
BOLT
26
6657368
PLATE
27
17C616
BOLT 5
28
6659334
BRACKET
29
6648646
MOUNT
30
6659842
BRACKET
31
17C848
BOLT
32
6659843
MOUNT
33
6664856
KIT Wiring - W/Ref. 34 - 40 - For Multi Switch Handles
34
6706806
HARNESS to convert to 14 pin harness
35
6664857
MOUNT
36
6664038
DUST CAP
37
6664037
WASHER
38
6664036
NUT
39
17C820
BOLT
40
6651975
SWITCH mag
41
6665001
CONNECTOR, ELECTRICAL W/Ref. 57 - Was 6664034 - B
42
4E8
WASHER
43
17C612
BOLT 5
44
4E6
WASHER
45
63D8
NUT
46
17C412
BOLT 5
47
4E4
WASHER
48
85D4
NUT 5
49
25E22
WASHER
50
18C16112
BOLT
51
6709152
KIT auxiliary power - W/Ref. 52-55 Provides an isolated power supply & individual fuse for electric motor control
52
6707346
HARNESS auxiliary power - W/Ref. 53 & 54
54
6657306
CAP, FUSE
55
6722954
INSTRUCTIONS For Ref. 51 kit
56
6664041
SOCKET female
57
6669286
CLAMP with saddles
58
6671009
GREASE ZERK
59
6714216
HARNESS ASSY See Serviceletter
60
6674099
BREAKER, 25A
60
6725614
BREAKER 25 amp - G series
Выбрано товаров: 68
