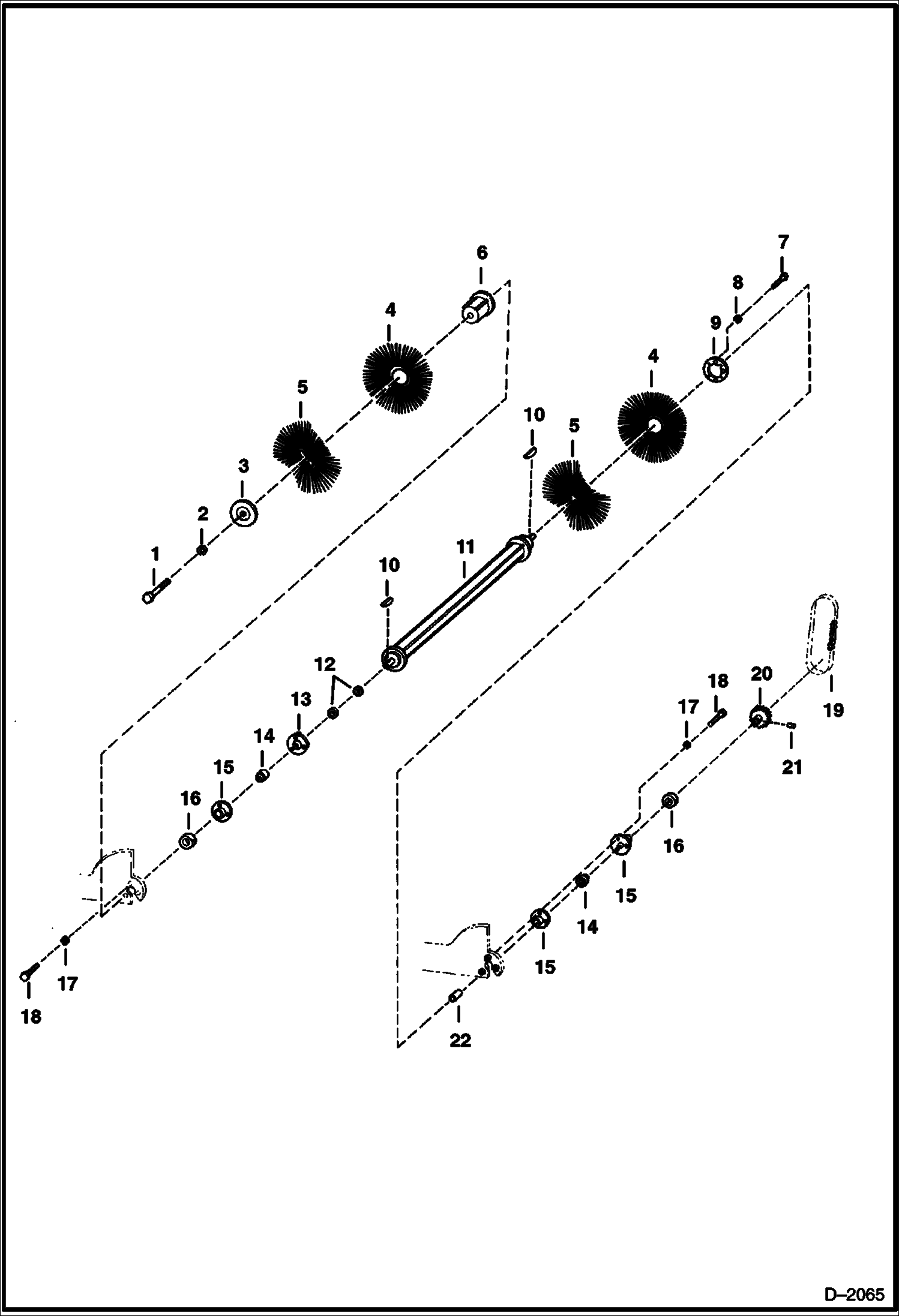

Запчасти Bobcat ANGLE BROOM ANGLE BROOM (Brushes) (68 690100101 & Above) Loader

1

17C824

BOLT 5

2

23E8

WASHER

3

6657331

END CAP

4

6648797

BRUSH, POLY STRAIGHT 21 3/8'' factory option

4

6988130

WAFER, 21 3/8' EARTHFORCE FLAT

4

6989018

BRISTLE, POLY HD 21 3/8'' FLAT

5

6652802

BRUSH, POLY CONVOLUTED 21 3/8'' factory option

5

6988131

WAFER, 21 3/8' EARTHFORCE CONVOLUTED

5

6989020

BRISTLE, POLY HD 21 3/8'' CONVOLUTED

5

6989142

BRISTLE, POLY/WIRE 21 3/8'' CONVOLUTED

5

BRUSH, STEEL CONVOLUTED 21 3/8'' NLA - factory option - Order 6989019 bristle - Was 6648798 - A

5

6989019

BRISTLE, WIRE 21 3/8'' CONVOLUTED

6

6655708

END HOLDER

7

73G520

SCREW Was 17C000532B - D

8

23E5

L WASHER

9

6655709

PLATE

10

5J808

KEY

11

6657332

TUBE

12

6648566

WASHER

13

6655712

FLANGE

14

6655706

BEARING W/Ref. 16

15

6655705

FLANGE

16

COLLAR NSS - Order Ref. 14 - Was 6655707 - A

17

23E6

WASHER

18

17C616

BOLT 5

19

6670844

CHAIN 30 links Use W/14 & 15 tooth sprocket - Was 6657333 - A

19

6670844

CHAIN 31 links - Use W/16 tooth sprocket Was 6665041 - A

19

CHAIN NLA - 29 links Use W/13 tooth sprocket - Order 6670844 & 6661457 - Was 6659844 - A

19

6515191

LINK connector - Was 6564943 - D

20

6657334

SPROCKET 14 tooth

20

SPROCKET NLA - 13 tooth - order 6661457 & 6670844 - Was 6659952 - A

20

6661457

SPROCKET 15 tooth - used with 6657333 chain

20

6665040

SPROCKET 16 tooth

21

15G505

SCREW

22

6657335

SPACER
