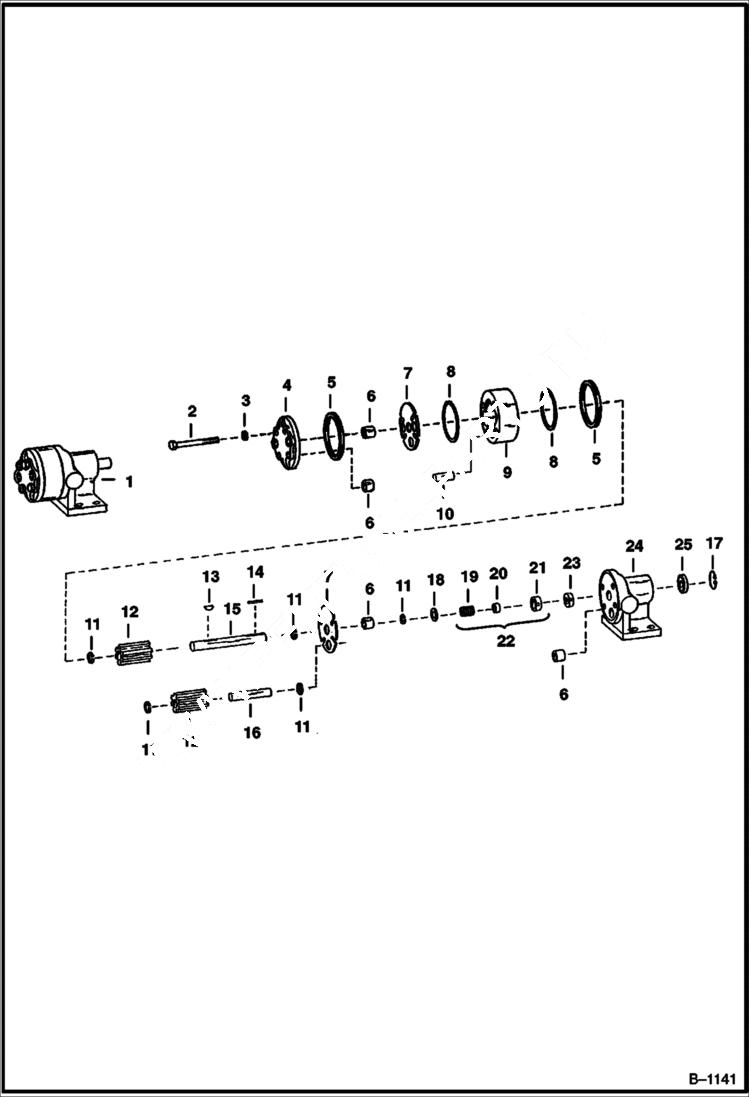

Запчасти Bobcat ANGLE BROOM ANGLE BROOM (Hydraulic Motor) (570B) Loader

1

6515465

MOTOR

2

18C756

SCREW

3

4E7

WASHER

4

867745

HOUSING rear

5

25K40328

O RING 10

6

867755

BEARING

7

867748

WEAR PLATE

8

6520751

SHIM KIT

9

946247

HOUSING

10

867753

PIN, DOWEL

11

9J13

RING

12

GEAR NLA - Was 946243B - A

13

5J405

KEY woodruff

14

7J2104

KEY square

15

6631034

SHAFT Was 946249B - A

16

6631035

SHAFT Was 946244B - A

17

713133

SNAP RING

18

867750

WASHER

19

SPRING NSS

20

SEAL NSS

21

RETAINER NSS - seal

22

867749

SEAL Ref. 19 - 21

23

867743

SEAL seal

24

6517934

HOUSING

25

1302066

BEARING
