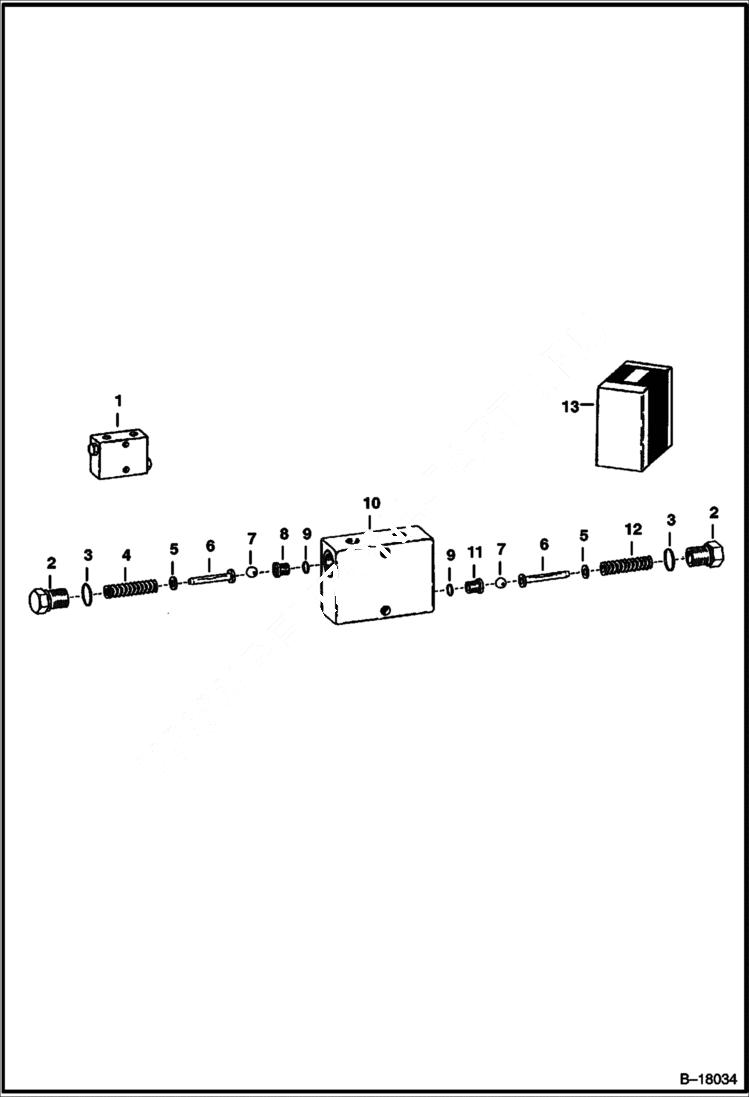

Запчасти Bobcat ANGLE BROOM ANGLE BROOM (Hydraulic Cushion Valve) (570B) Loader

1

6520575

VALVE cushion

2

CAP NSS - spring

3

O-RING NSS

4

SPRING NSS

5

SHIM KIT NSS

6

GUIDE NSS

7

BALL NSS - steel

8

SEAT NSS

9

O-RING NSS

10

HOUSING NSS

11

SEAT NSS

12

SPRING NSS

13

6508350

REPAIR KIT return side - Ref. 2, 3, 5 - 7, 9, 11 & 12

13

6508349

REPAIR KIT pressure side - Ref. 2 - 9
