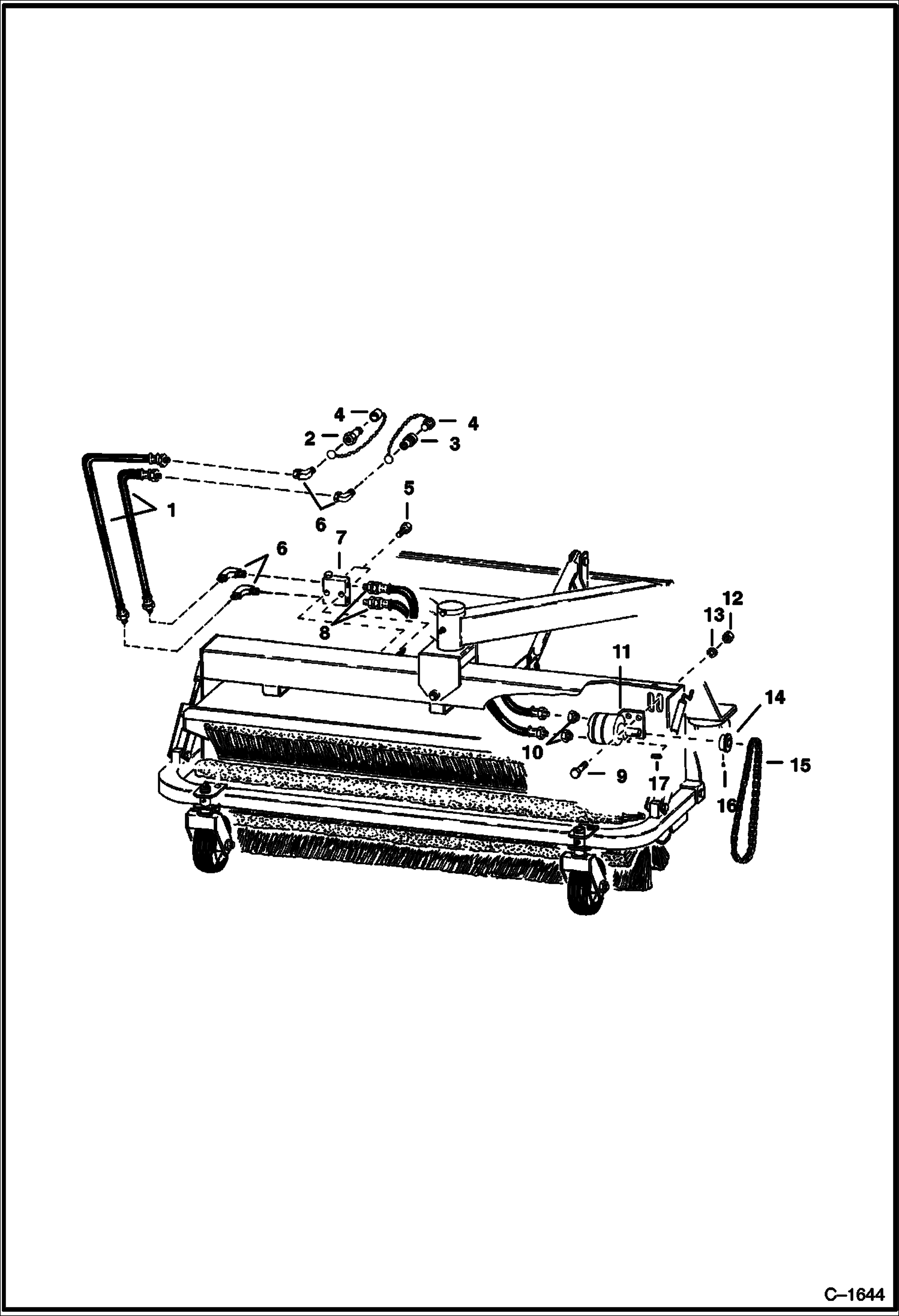

Запчасти Bobcat ANGLE BROOM ANGLE BROOM (Hydraulics) (570B) Loader

1

6508345

HOSE

2

6598755

QUICK COUPLER male

3

6598756

QUICK COUPLER female

3

25K40026

O RING 10

4

6513709

CAP PLUG assy - Rubber

4

6515168

CAP steel

4

6515167

PLUG steel

5

17C540

BOLT Was 17C000536B - B

6

29F3

ELBOW

7

VALVE See Illustration ANGLE BROOM/ B18034 - cushion

8

6541884

HOSE

9

17C724

BOLT

10

19F9

BUSHING

11

MOTOR See Illustration ANGLE BROOM/ B1141

12

61D7

NUT

13

4E7

WASHER

14

6520616

SPROCKET

15

6508335

CHAIN

15

6564943

LINK connector - Press Fit

15

660230

LINK CONN connector - Cotter Pin Type

15

600291

CONN LINK connector - Spring Clip Type

16

15G408

SCREW

17

7J2104

KEY square
