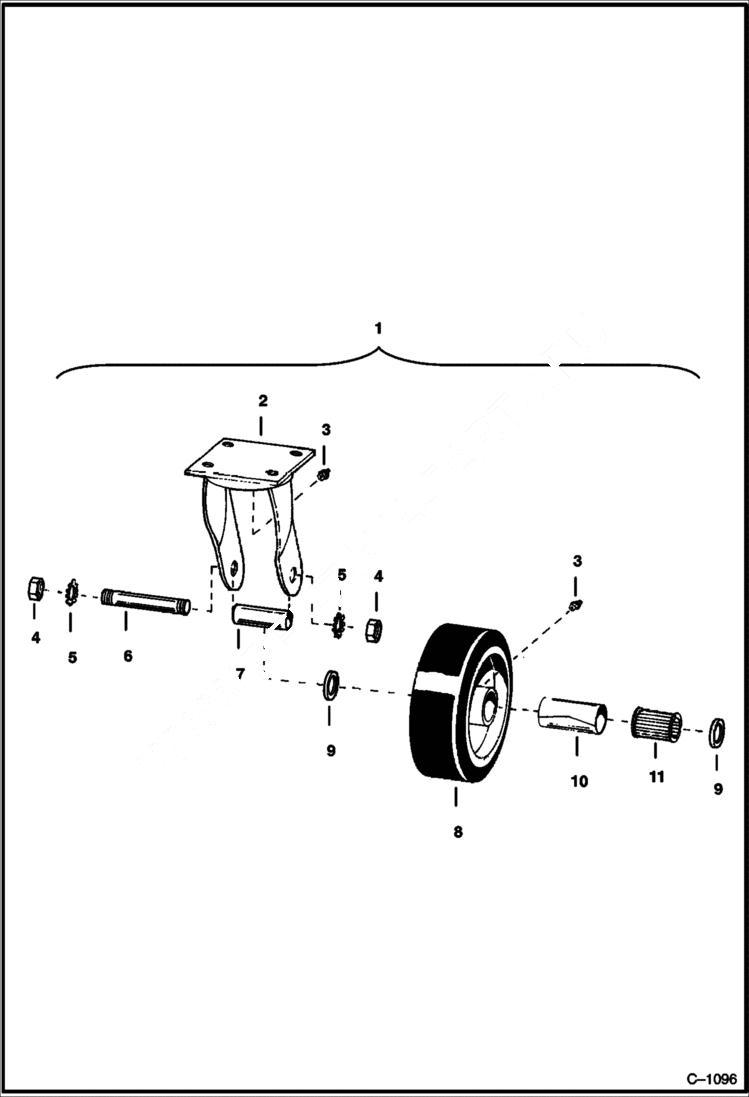

Запчасти Bobcat ANGLE BROOM ANGLE BROOM (Caster Wheel) Loader

1

6518129

WHEEL Ref. 2 - 11

2

6508323

FORK W/Ref. 3 - 7

3

6518200

FITTNG, GREASE 10

4

8D12

NUT

5

5E12

WASHER

6

6508324

AXLE

7

6508325

BUSHING

8

6508326

WHEEL

9

RETAINER NSS - bearing

10

BUSHING NSS - expansion

11

6518257

BEARING W/Ref. 9 & 10
